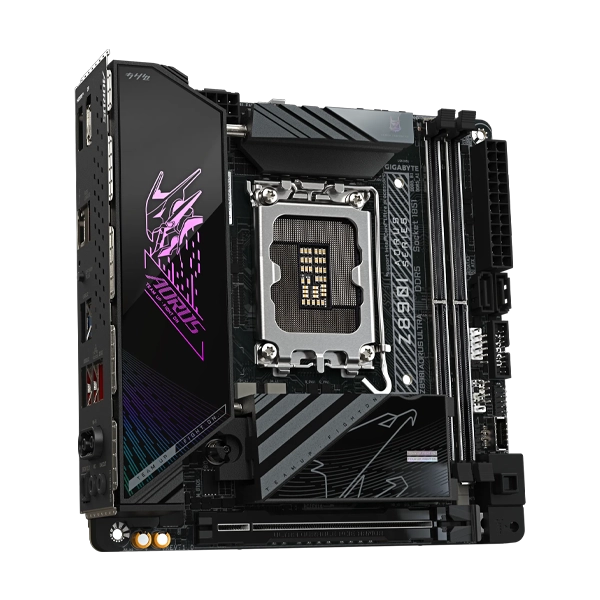

Discover the Gigabyte Z890I AORUS Ultra Mini-ITX Motherboard at the lowest price in India! Featuring Intel Z890 chipset, LGA 1851 socket, DDR5 support, PCIe 5.0, Wi-Fi 7, and Thunderbolt 4, this compact powerhouse is perfect for high-performance gaming and content creation.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4.
Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard Ext..
Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
Extended Connectivity : THUNDERBOLT™ 4 Type-C with DP-Alt , HDMI , DisplayPort.
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.
|
Brand |
Gigabyte |
|
Model |
Z890I AORUS ULTRA |
|
Colour |
Black |
|
Chipset |
Intel Z890 Chipset |
|
CPU Socket |
LGA 1851 |
|
CPU Support |
Intel Core Ultra Processors |
|
Memory Support |
2 x DDR5, Maximum Memory Capacity 128GB, Max Memory Support 9200 (OC) MHz |
|
Storage |
1 x M.2 Gen5 x 4 slot |
|
|
1 x M.2 Gen4 x 4 slot |
|
|
2 x SATA 6Gb/s ports |
|
USB Ports On Board |
1 x USB Type-C Port |
|
|
3 x USB 3.2 Gen2 Type-A |
|
|
2 x USB 3.2 Gen1 Type-A |
|
LAN |
Realtek 2.5GbE LAN Chip |
|
Audio |
Realtek Audio Codec |
|
|
2/4/5.1/7.1-Channel HD Audio |
|

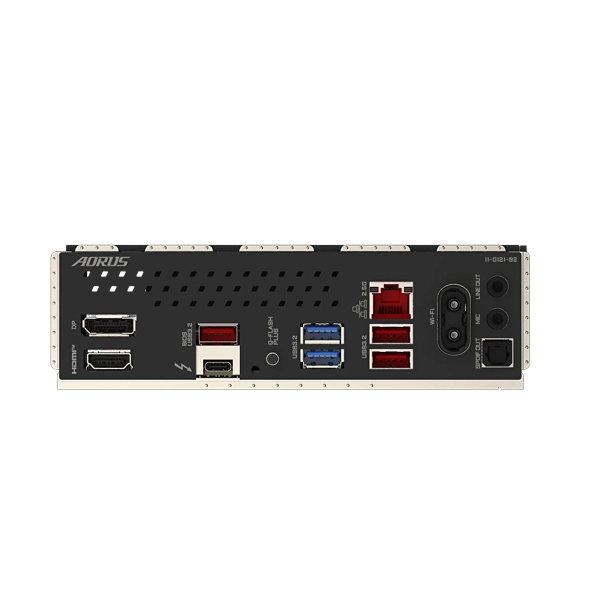

Back Panel Connectors |
2 x Display Ports |
|
|
1 x HDMI Port |
|
|
1 x USB Type-C |
|
|
3 x USB 3.2 Gen2 Type-A Ports |
|
|
2 x USB 3.2 Gen1 Type-A Ports |
|
|
1 x RJ-45 LAN Port |
|
|
1 x Q-Flash Plus Button |
|
|
1 x Optical S/PDIF Out Connector |
|
|
2 x Antenna Connectors (2T2R) |
|
|
1 x Mic In |
|
|
1 x Audio Line Out |
|
Internal I/O Connector |
1 x 24-pin ATX main power connector |
|
|
1 x 8-pin ATX 12V power connector |
|
|
1 x CPU fan header |
|
|
1 x CPU fan/water cooling pump header |
|
|
1 x system fan header |
|
|
2 x addressable RGB Gen2 LED strip headers |
|
|
2 x M.2 Socket 3 connectors |
|
|
2 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x speaker header |
|
|
1 x USB Type-C header, with USB 3.2 Gen 2 support |
|
|
1 x USB 3.2 Gen 1 header |
|
|
1 x USB 2.0/1.1 header |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|
Expansion Slot |
1 x PCIe 5.0 x 16 slot |
|
Built-in Bluetooth |
5.4 |
|
Built-in Wifi |
WiFi 7 |
|
Lighting |
NA |
|
OS Support |
Windows 11 64-bit |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
