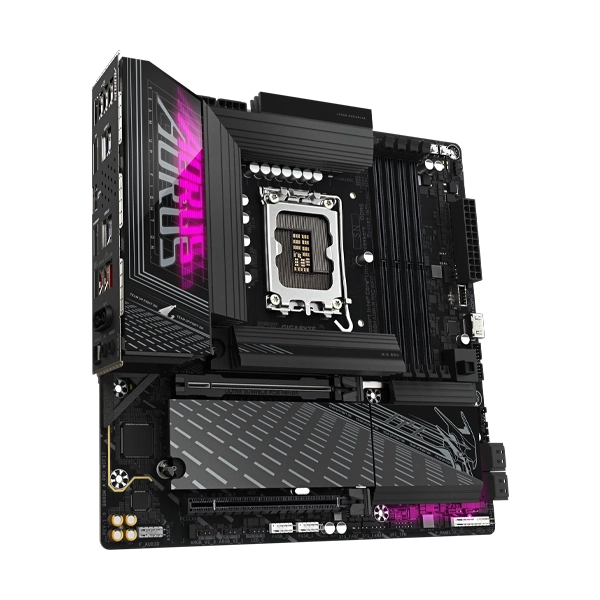

The GIGABYTE B860M AORUS PRO WIFI7 M-ATX Motherboard delivers cutting-edge performance for Intel® Core™ Ultra (Series 2) processors. Featuring a robust 12+1+2 phase VRM, it supports DDR5 memory up to 9200 MT/s with XMP for exceptional speed and stability. With three M.2 slots (including PCIe 5.0 x4), Wi-Fi 7, 2.5GbE LAN, and USB4 Type-C, it ensures ultra-fast storage and connectivity. The advanced thermal design with VRM Thermal Armor and M.2 Thermal Guard keeps your system cool, while EZ-Latch
Supports Intel® Core™ Ultra processors (Series 2)
Digital 12+1+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
|
Brand |
Gigabyte |
|
Model |
B860M-A-PRO-WIFI7 |
|
Color |
Black |
|
CPU |
LGA1851 socket: Supports Intel® Core™ Ultra Processors L3 cache varies with CPU |
|
Chipset |
Intel® B860 Express Chipset |
|
Memory |
Supports DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 5600 MT/s 4 x DDR5 DIMM slots, up to 256GB (64GB per slot) Dual-channel architecture Supports ECC & non-ECC Unbuffered DIMM modules Supports XMP memory modules |
|
Onboard Graphics |
Intel® HD Graphics Display Outputs: - 1 x USB4® USB-C (DisplayPort 2.1, 3840x2160@144Hz) - 1 x DisplayPort (2.1, 3840x2160@144Hz) - 1 x HDMI (2.1, 4096x2160@60Hz) - 1 x Front HDMI (1.4, 1920x1080@30Hz) Supports quad-display output |
|
Audio |
Realtek® Audio CODEC, HD Audio 2/4/5.1/7.1-channel Supports S/PDIF Out |
|
LAN |
Realtek® 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
|
Wireless |
PCB rev. 1.0: Realtek® Wi-Fi 7 RTL8922AE, Bluetooth 5.4 PCB rev. 1.1: MediaTek Wi-Fi 7 MT7925, Bluetooth 5.4 |
|
Expansion Slots |
CPU: 1 x PCIe 5.0 x16 slot (for GPU/NVMe SSD) Chipset: 1 x PCIe 4.0 x4 slot |
|
Storage |
CPU: 1 x M.2 (PCIe 5.0 x4/x2) Chipset: 2 x M.2 (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s Supports RAID 0, 1, 5, 10 for SATA |
|
USB Ports |
Back Panel: 1 x USB4® USB-C, 2 x USB 3.2 Gen 2 Type-A (red), 4 x USB 3.2 Gen 1, 4 x USB 2.0 Internal: 1 x USB-C 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
|
Internal I/O |
24-pin ATX power, 2 x 8-pin ATX 12V 1 x CPU fan, 1 x CPU fan/water pump, 3 x system fan, 1 x system fan/water pump 3 x Addressable RGB Gen2, 1 x RGB header 3 x M.2, 4 x SATA 6Gb/s 1 x front panel, 1 x front audio, 1 x TPM header 2 x Thunderbolt add-in card connectors 1 x Q-Flash Plus button, Power & Reset buttons |
|

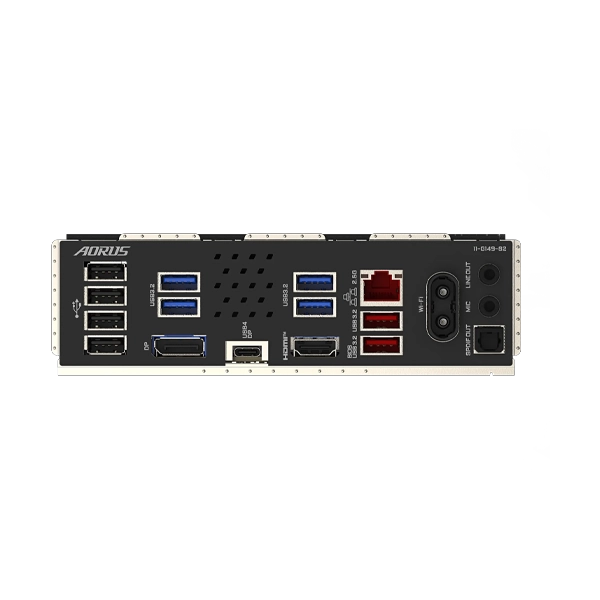

Back Panel |
1 x DisplayPort, 1 x HDMI 1 x USB4® USB-C 2 x USB 3.2 Gen 2 Type-A (red) 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x RJ-45 2 x Antenna connectors 2 x Audio jacks, 1 x S/PDIF Out |
|
BIOS |
256 Mbit Flash, AMI UEFI BIOS Supports Q-Flash, Q-Flash Plus, Smart Backup |
|
Software |
GIGABYTE Control Center (GCC), Norton Internet Security (OEM), LAN bandwidth management software |
|
OS Support |
Windows 11 64-bit |
|
Form Factor |
Micro ATX (24.4cm x 24.4cm) |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
