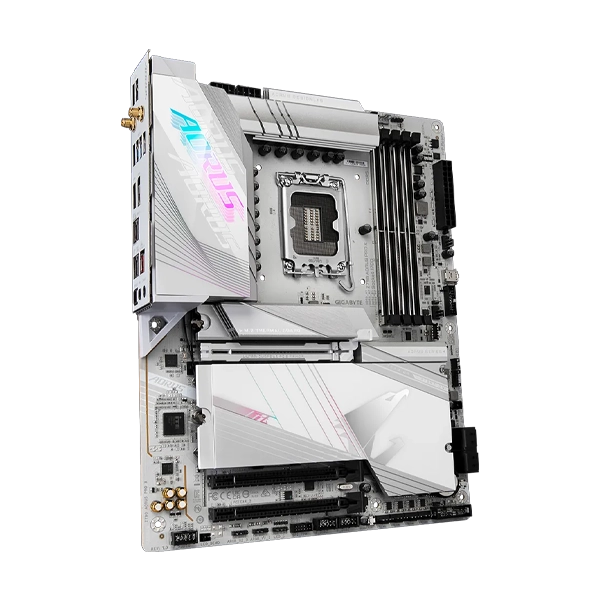

Discover the Gigabyte Z790 Aorus Pro X DDR5 Motherboard at the lowest price in India. Designed for Intel 14th & 13th Gen CPUs, it features PCIe 5.0, Wi-Fi 7, and 5x M.2 slots for top performance.
Supports Intel Core 14th and 13th processors.
Digital twin 18+1+2 phases VRM solution.
Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support.
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.
EZ-Latch Click: M.2 heatsinks with screwless design.
EZ-Latch Plus: M.2 slots with quick release design.
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.
UC BIOS: User-Centred intuitive UX with Quick Access function.
Ultra-Fast Storage: 5*M.2 slots, including 1* PCIe 5.0 x4.
Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL.
Fast Networking: 5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna.
Extended Connectivity: HDMI, DP IN, Front & Rear USB-C® 20Gb/s.
High-Res Audio: ALC1220 & Audiophile Grade Capacitors
|
Brand |
Gigabyte |
|
Model |
Z790 AORUS PRO X |
|
Colour |
White |
|
CPU Socket Type |
LGA 1700 |
|
CPU Type |
Support for the 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
|
Chipsets |
|
|
Chipset |
Intel Z790 Express Chipset |
|
Memory |
|
|
Number of Memory Slots |
4x288pin (DDR5) |
|
Memory Standard |
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
Maximum Memory Supported |
192GB |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
|
Expansion Slots |
|
|
PCI Express 5.0 x16 |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connectors.The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
PCI Express 4.0 x16 |
Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) |
|
PCI Express 3.0 x16 |
Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
|
Storage Devices |
|
|
SATA 6Gb/s |
4 x SATA 6Gb/s |
|
M.2 |
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
SATA RAID |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
Onboard Audio |
|
|
Audio Chipset |
Realtek ALC1220-VB CODEC *The back panel line out jack supports DSD audio.High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
|
Audio Channels |
7.1 Channels |
|
Onboard LAN |
|
|
LAN Chipset |
Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
|
Max LAN Speed |
5Gbps |
|
Rear Panel Ports |
|
|

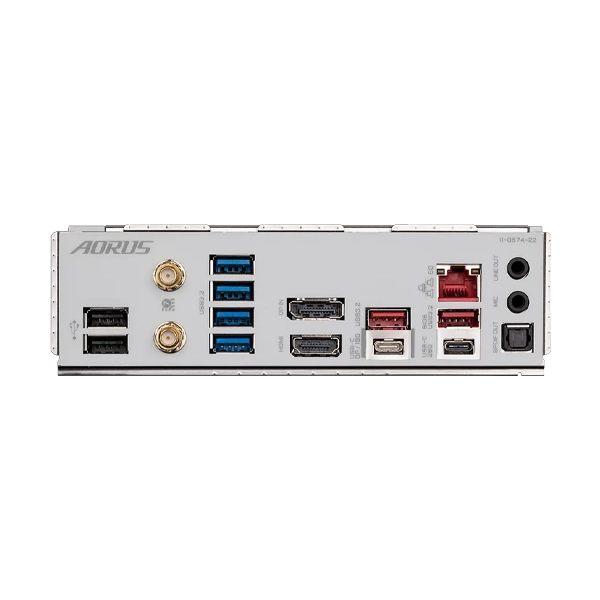

Back I/O Ports |
2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
Internal I/O Connectors |
|
|
Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB Type-C port (DisplayPort), with USB 2.0 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|
Other Connectors |
1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
|
Physical Spec |
|
|
Form Factor |
ATX |
|
Dimensions (W x L) |
30.5cm x 24.4cm |
|
Power Pin |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
|
Windows Compatibility |
|
|
Windows 11 |
Supported |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
