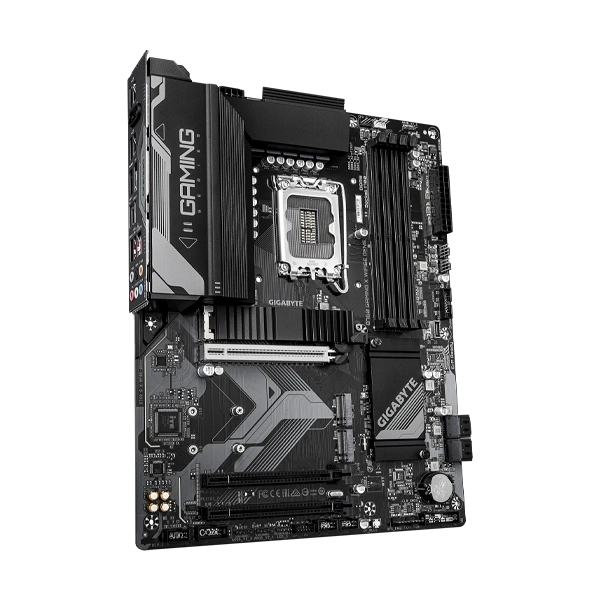

the Gigabyte B760 Gaming X WiFi6E Motherboard ,Experience top-tier gaming performance with Intel LGA 1700, DDR5 support, PCIe 4.0, and WiFi 6E connectivity. Buy now for unmatched value and quality!"
PCIe Gen5 Performance: Perfect Sync to Win.
Supports Intel Core 14th/ 13th/12 processors.
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal.
EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design.
PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support.
Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution.
Dual Channel DDR5: 4 x DIMMs with XMP Memory Module Support.
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI.
Next Generation Storage: 3 x PCIe 4.0 x4 M.2 Connectors.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
|
Brand |
Gigabyte |
|
Model |
B760 G X WF6E GEN5 |
|
Colour |
black |
|
CPU |
LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel ® Core, Pentium ® Gold and Celeron ® Processors |
|
|
L3 cache varies with CPU |
|
Chipset |
Intel ® B760 Express Chipset |
|
Memory |
14th and 13th Generation Intel ® Core i9/i7 Processors: |
|
|
– Support for DDR5 5600/5200/4800/4400 MT/s memory modules |
|
|
13th Generation Intel ® Core i5/i3 and 12th Generation Intel ® Core, Pentium ® Gold and Celeron ® Processors: |
|
|
– Support for DDR5 4800/4400 MT/s memory modules |
|
|
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory |
|
|
Dual channel memory architecture |
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
Onboard Graphics |
Integrated Graphics Processor-Intel ® HD Graphics support: |
|
|
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz |
|
|
* Support for DisplayPort 1.2 version and HDCP 2.3 |
|
|
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
|
|
* Support for HDMI 2.1 TMDS compatible ports. |
|
Expansion Slots |
CPU: |
|
|
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
Chipset: |
|
|
– 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
|
Storage Interface |
CPU: |
|
|
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
|
Chipset: |
|
|
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) |
|
|
– 4 x SATA 6Gb/s connectors |
|
|
ŠRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
Chipset: |
|
|
– 1 x USB Type-C ® port with USB 3.2 Gen 2 support, available through the internal USB header |
|
|
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
|
|
– 1 x USB Type-C ® port on the back panel, with USB 3.2 Gen 1 support |
|
|
– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) |
|
|
– 1 x USB 2.0/1.1 port on the back panel |
|
|
Chipset+2 USB 2.0 Hubs: |
|
|
– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|

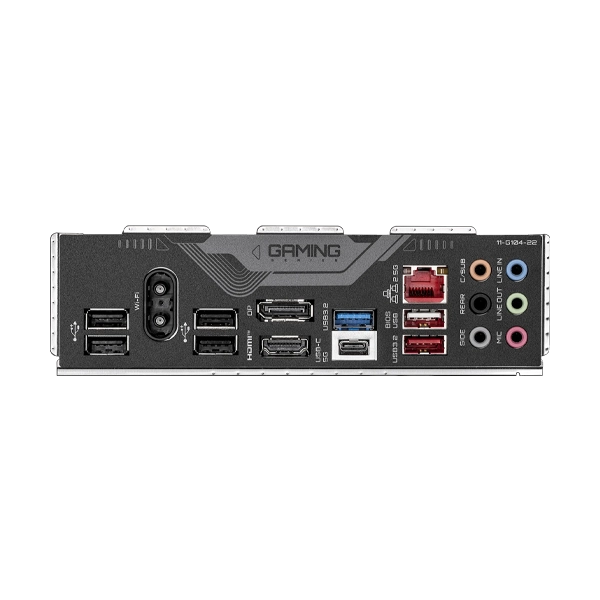

Back Panel Connectors |
1 x USB 3.2 Gen 2 Type-A port (red) |
|
|
1 x USB Type-C ® port, with USB 3.2 Gen 1 support |
|
|
1 x USB 3.2 Gen 1 port |
|
|
5 x USB 2.0/1.1 ports |
|
|
2 x antenna connectors (2T2R) |
|
|
1 x DisplayPort (Note) |
|
|
1 x HDMI port (Note) |
|
|
1 x RJ-45 port |
|
|
6 x audio jacks |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
