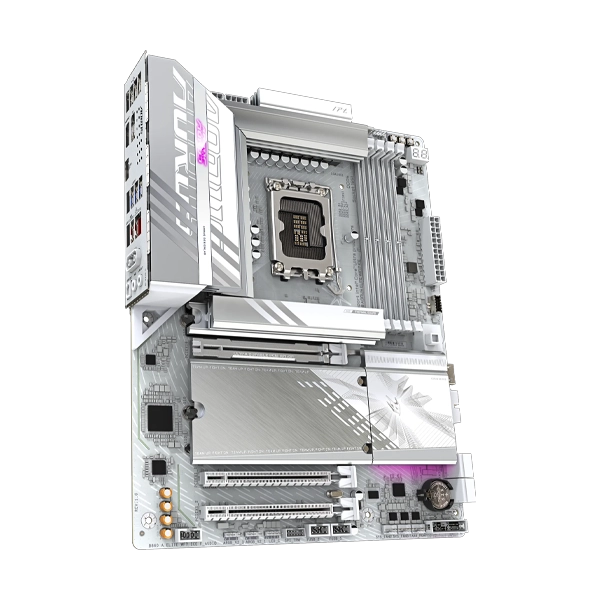

The Gigabyte B860 AORUS ELITE WIFI7 ICE Motherboard is a premium ATX motherboard designed for Intel® Core™ Ultra (Series 2) processors on the LGA 1851 socket. Featuring a stylish white aesthetic, it supports up to 256GB DDR5 memory with speeds up to 9200MHz (OC) and XMP 3.0 for exceptional performance. Equipped with a robust 14+1+2 phase VRM, PCIe 5.0 x16 slot, and three M.2 slots (1x PCIe 5.0), it ensures blazing-fast storage and expansion. Advanced connectivity includes Wi-Fi 7, Bluetooth 5.4,
Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 12+1+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5GbE LAN & Wi-Fi 6E
Extended Connectivity : HDMI, DisplayPort.
|
Brand |
Gigabyte |
|
Model |
B860 AORUS ELITE WIFI7 ICE |
|
Color |
White |
|
CPU |
|
|
Chipset |
Intel B860 |
|
CPU Socket |
LGA 1851 |
|

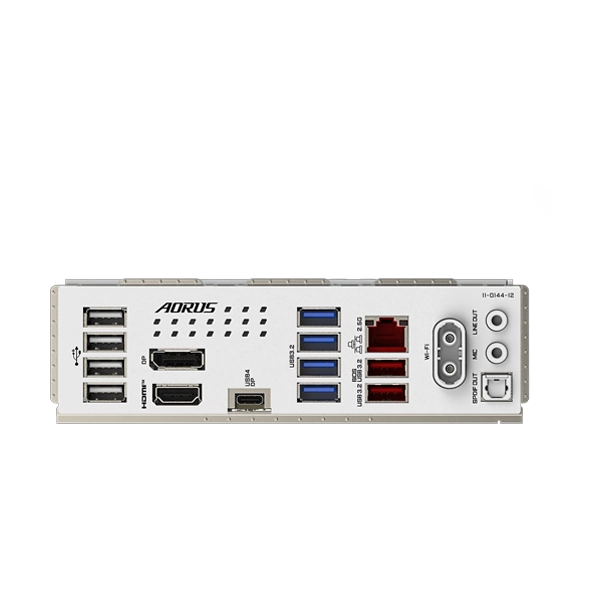

Back Panel I/O |
|
|
USB |
1x USB-C (USB 3.2 Gen 2x2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0) |
|
Thunderbolt |
No |
|
Display |
1x DisplayPort Output 1x HDMI Output |
|
Audio |
3x 1/8" / 3.5 mm |
|
Ethernet / Controller |
1x Realtek 2.5Gigabit |
|
Wi-Fi Antenna |
1x Connector |
|
Memory |
|
|
Memory Slots |
4x 288-Pin |
|
Memory Support |
DDR5 5600, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600, 8800, 9066 MT/s |
|
Maximum Capacity |
256 GB |
|
Channel Architecture |
Dual Channel |
|
ECC Support |
Non-ECC, ECC Unbuffered |
|
Storage Expansion |
|
|
SATA |
4x SATA III |
|
Storage Slots |
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4, PCIe 5.0 x2) 2x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) |
|
Optane Memory Support |
No |
|
RAID Support |
RAID 0, 1, 5, 10 (SATA) |
|
Internal I/O |
|
|
Expansion Slots |
1x PCIe 5.0 x16 2x PCIe 4.0 x1 |
|
USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) |
|
Air Cooling |
1x 4-Pin CPU 3x 4-Pin System |
|
Liquid Cooling |
2x 4-Pin Pump |
|
Power Connectors |
1x 24-Pin Mainboard 1x 8-Pin CPU |
|
Security |
TPM Header |
|
LED Header |
4x RGB |
|
Audio |
No |
|
Diagnostics |
Clear CMOS, Flash BIOS, Reset |
|
BIOS |
|
|
ROM |
256 Mb |
|
Front Panel I/O |
|
|
Front Panel I/O |
USB 3.1/3.2 Gen 2 |
|
Audio |
|
|
Audio Codec |
Realtek (7.1-Channel) |
|
DAC |
No |
|
Wireless |
|
|
Wi-Fi |
Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
|
Bluetooth |
5.3 |
|
Software |
|
|
OS Compatibility |
Windows 11 (64-Bit Only) |
|
Physical |
|
|
Form Factor |
ATX |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
