Discover the lowest prices for the Gigabyte Z790 AORUS Master X Motherboard in India. Shop now for this high-performance Intel LGA 1700 E-ATX motherboard, supporting 12th, 13th, and 14th Gen processors with DDR5, PCIe 5.0, and advanced cooling features.
Supports Intel® Core™ 14th and 13th processors.
Digital direct 20+1+2 phases VRM solution.
Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support.
PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card.
EZ-Latch Click: M.2 heatsinks with screwless design.
EZ-Latch Plus: PCIe 5.0 x16 slot & M.2 slots with quick release design.
UC BIOS: User-Centred intuitive UX with Quick Access function.
Ultra-Fast Storage: 5*M.2 slots, including 1* PCIe 5.0 x4.
Efficient Overall Thermal: VRM Thermal Armor Fins-Array & M.2 Thermal Guard XL
Fast Networking: 10GbE LAN & Wi-Fi 7 with Ultra-high gain antenna.
Extended Connectivity: DP, Front USB-C® 10Gb/s, Front & Dual Rear USB-C® 20Gb/s.
DTS:X® Ultra Audio: ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC.
|
Brand |
Gigabyte |
|
Model |
Z790 AORUS MASTER X |
|
Color |
Black |
|
Supported CPU |
|
|
CPU Socket Type |
LGA 1700 |
|
CPU Type |
Support for the 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors* * Please refer to "CPU Support List" for more information. |
|
Chipsets |
|
|
Chipset |
Intel Z790 Express Chipset |
|
Memory |
|
|
Number of Memory Slots |
4x288pin (DDR5) |
|
Memory Standard |
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
Maximum Memory Supported |
192GB |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
|
Expansion Slots |
|
|
PCI Express 5.0 x16 |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
PCI Express 3.0 x16 |
Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
|
Storage Devices |
|
|
SATA 6Gb/s |
4 x SATA 6Gb/s |
|
M.2 |
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
SATA RAID |
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices |
|
Onboard Audio |
|
|
Audio Chipset |
Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1-channel Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. |
|
Audio Channels |
5.1 Channels |
|
Onboard LAN |
|
|
LAN Chipset |
Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
|
Max LAN Speed |
10Gbps |
|
Wireless LAN |
Wi-Fi 7 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
Bluetooth |
Yes |
|

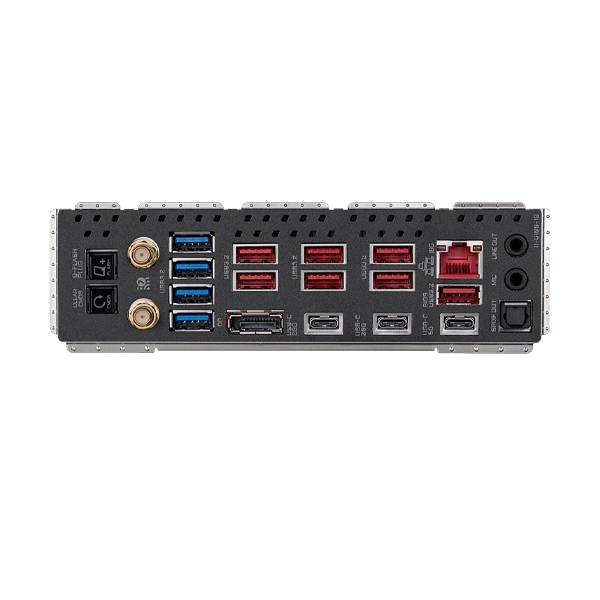

Rear Panel Ports |
|
|
Back I/O Ports |
1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
Internal I/O Connectors |
|
|
Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
|
Other Connectors |
1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |
|
Physical Spec |
|
|
Form Factor |
Extended ATX |
|
Dimensions (W x L) |
30.5cm x 26.0cm |
|
Power Pin |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
|
Windows Compatibility |
|
|
Windows 11 |
Supported |
|
Warranty |
3 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
