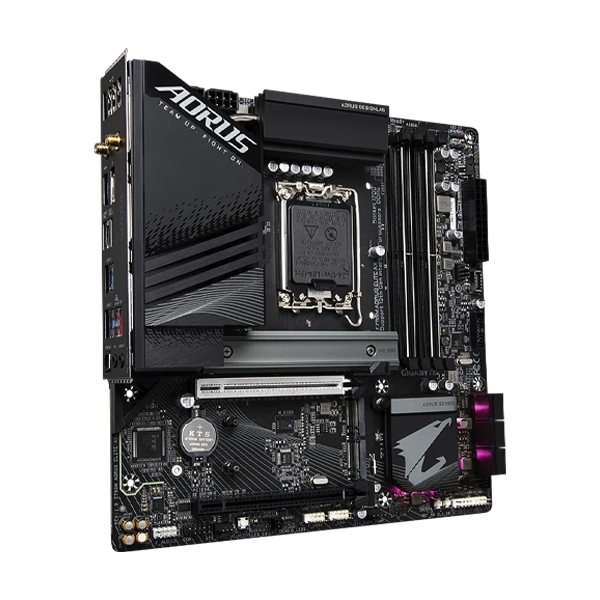

Discover the Gigabyte Z790M Aorus Elite AX WiFi Motherboard at the lowest price in India. Featuring Intel LGA 1700 socket, DDR5 support, PCIe 5.0, WiFi 6E, and advanced thermal design, it’s perfect for 12th, 13th, and 14th Gen Intel processors.
Intel® Socket LGA 1700: Z790M AORUS ELITE AX Support 13th and 12th Gen Series Processors.
Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution.
Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 Memory Module Support.
Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors.
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance.
EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design.
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity: HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
|
Brand |
Gigabyte |
|
Model |
Z790M AORUS ELITE AX |
|
Colour |
Black |
|
CPU |
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
|
|
L3 cache varies with CPU |
|
Chipset |
Intel® Z790 Express Chipset |
|
Memory |
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
|
|
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
|
|
Dual channel memory architecture |
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
|
|
1 x HDMI port, supporting a maximum resolution |
|
|
|
|
|
Support for HDMI 2.0 version and HDCP 2.3. |
|
|
1 x DisplayPort, supporting a maximum resolution |
|
|
Support for DisplayPort 1.2 version and HDCP 2.3 |
|
Audio |
Realtek® Audio CODEC |
|
|
High Definition Audio |
|
|
2/4/5.1/7.1-channel |
|
|
Support for S/PDIF Out |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
Intel® Wi-Fi 6E AX211 |
|
|
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
|
|
BLUETOOTH 5.3 |
|
|
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
Expansion Slots |
CPU: |
|
|
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
|
|
|
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: |
|
|
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
|
|
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
|
Storage Interface |
CPU: |
|
|
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
|
|
|
|
Chipset: |
|
|
1 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) |
|
|
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) |
|
|
6 x SATA 6Gb/s connectors |
|
USB |
Chipset: |
|
|
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
|
|
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
|
|
1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
|
|
|
|
Chipset+2 USB 2.0 Hubs: |
|
|
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
|
|
|
|
Chipset+2 USB 2.0 Hubs: |
|
|
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper |
|

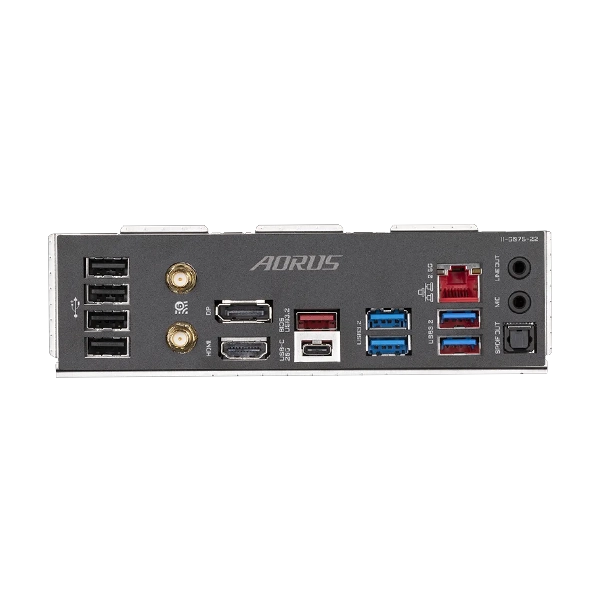

Back Panel Connectors |
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection |
|
|
Temperature detection |
|
|
Fan speed detection |
|
|
Water cooling flow rate detection |
|
|
Fan fail warning |
|
|
Fan speed control |
|
BIOS |
1 x 256 Mbit flash |
|
|
Use of licensed AMI UEFI BIOS |
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features |
Support for GIGABYTE Control Center (GCC) |
|
|
Support for Q-Flash |
|
|
Support for Q-Flash Plus |
|
|
Support for Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM version) |
|
|
LAN bandwidth management software |
|
Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
