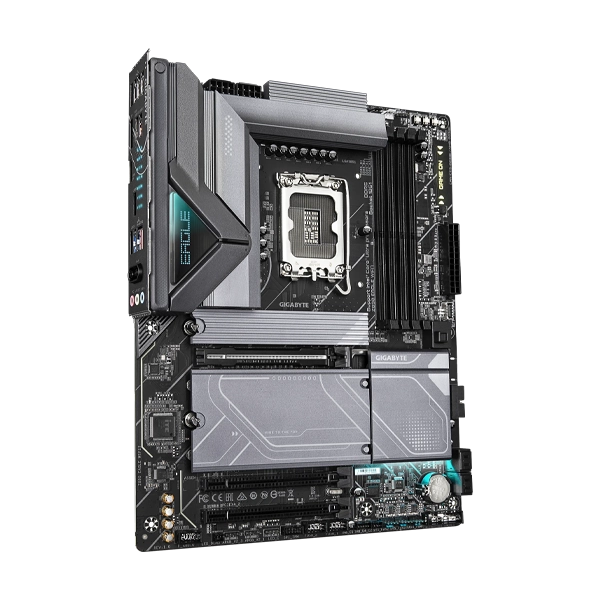

Discover the Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard at the lowest price in India. Featuring Intel Z890 chipset, DDR5 support, PCIe 5.0, Wi-Fi 7, and USB4, this matte black motherboard is perfect for gaming and high-performance PC builds.
Gigabyte Supports Intel® Core™ Ultra processors (Series 2).
Digital twin 14+1+2 phases VRM solution.
D5 Bionic Corsa for Infinite Memory Performance.
AI Perfdrive : Provides optimal and customized BIOS preset profile for users.
Premium Compatibility : 4*DDR5 with XMP Memory Module Support.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard.
Fast Networking : 2.5GbE LAN & Wi-Fi 7.
Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort.
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.
|
Brand |
Gigabyte |
|
Model |
Z890 EAGLE WIFI7 |
|
Colour |
Black |
|
Platform |
INTEL |
|
Socket |
LGA1851 |
|
Cpu Type |
Core Ultra |
|
Chipset |
Z890 |
|
Memory Speed |
up to 9200 |
|
Max Memory Support |
256 GB |
|
Supported Memory Type |
DDR5 |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
Support CUDIMM memory module |
|
|
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
|
Graphics Port |
1 x USB4 USB Type-C Port,1 x DisplayPort |
|
Expansion Slots |
CPU: |
|
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
Chipset: |
|
|
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
|
Wireless Networking |
WiFi 7,Bluetooth 5.4 |
|

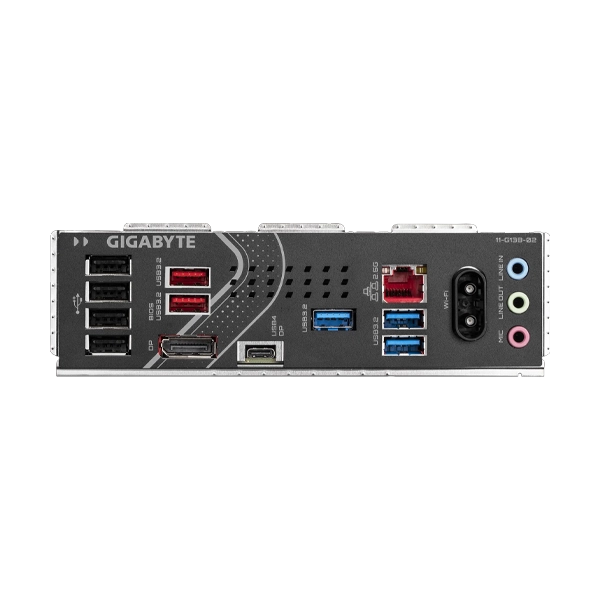

Back Panel I/O Ports |
1 x USB4® USB Type-C® port (DisplayPort (Note)) |
|
|
2 x USB 3.2 Gen 2 Type-A ports (red) |
|
|
3 x USB 3.2 Gen 1 ports |
|
|
4 x USB 2.0/1.1 ports |
|
|
1 x DisplayPort (Note) |
|
|
2 x antenna connectors (2T2R) |
|
|
1 x RJ-45 port |
|
|
3 x audio jacks |
|
Internal I/O Connector |
1 x 24-pin ATX main power connector |
|
|
2 x 8-pin ATX 12V power connectors |
|
|
1 x CPU fan header |
|
|
1 x CPU fan/water cooling pump header |
|
|
3 x system fan headers |
|
|
1 x system fan/water cooling pump header |
|
|
3 x addressable RGB Gen2 LED strip headers |
|
|
1 x RGB LED strip header |
|
|
4 x M.2 Socket 3 connectors |
|
|
4 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
|
|
1 x USB 3.2 Gen 1 header |
|
|
2 x USB 2.0/1.1 headers |
|
|
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only) |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
|
1 x power button |
|
|
1 x Q-Flash Plus button |
|
|
1 x reset button |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|
Form Factor |
ATX |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
