Gigabyte Supports Intel® Core™ Ultra processors (Series 2).
Digital twin 12+1+2 phases VRM solution.
D5 Bionic Corsa for Infinite Memory Performance.
AI Perfdrive : Provides optimal and customized BIOS preset profile for users.
Premium Compatibility : 4*DDR5 with XMP Memory Module Support.
PCIe EZ-Latch : PCIe slots with Quick Release & Screwless Design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard.
Fast Networking : 2.5GbE LAN.
Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort.
|
Brand |
Gigabyte |
|
Model |
Z890 UD |
|
Colour |
Black |
|
CPU |
LGA1851 socket: Support for Intel® Core™ Ultra Processors |
|
|
L3 cache varies with CPU |
|
Chipset |
Intel® Z890 Express Chipset |
|
Memory |
Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
|
|
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
|
|
Dual channel memory architecture |
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
Support CUDIMM memory module |
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
|
|
– 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz |
|
|
* Support for DisplayPort 2.1 version |
|
|
– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz |
|
|
* Support for DisplayPort 2.1 version |
|
|
(Graphics specifications may vary depending on CPU support.) |
|
Audio |
Realtek® Audio CODEC |
|
|
High Definition Audio |
|
|
2/4/5.1/7.1-channel |
|
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication Module |
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) |
|
|
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
|
|
– BLUETOOTH 5.3 |
|
|
– Support for 11ax 160MHz wireless standard |
|
|
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) |
|
|
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
|
|
– BLUETOOTH 5.3 |
|
|
– Support for 11ax 160MHz wireless standard |
|
|
(Actual data rate may vary depending on environment and equipment.) |
|
Expansion Slots |
CPU: |
|
|
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
Chipset: |
|
|
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
|
|
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) |
|
Storage Interface |
CPU: |
|
|
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
|
|
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) |
|
|
Chipset: |
|
|
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
|
– 4 x SATA 6Gb/s connectors |
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
CPU: |
|
|
– 1 x USB4® USB Type-C® port on the back panel |
|
|
Chipset: |
|
|
– 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
|
|
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
|
|
– 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
|
Chipset+2 USB 2.0 Hubs: |
|
|
– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
|
2 x 8-pin ATX 12V power connectors |
|
|
1 x CPU fan header |
|
|
1 x CPU fan/water cooling pump header |
|
|
2 x system fan headers |
|
|
2 x system fan/water cooling pump headers |
|
|
3 x addressable RGB Gen2 LED strip headers |
|
|
1 x RGB LED strip header |
|
|
3 x M.2 Socket 3 connectors |
|
|
4 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x USB Type-C® header, with USB 3.2 Gen 1 support |
|
|
1 x USB 3.2 Gen 1 header |
|
|
2 x USB 2.0/1.1 headers |
|
|
2 x Thunderbolt™ add-in card connectors |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) |
|
|
1 x serial port header |
|
|
1 x power button |
|
|
1 x reset button |
|
|
1 x Q-Flash Plus button |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|

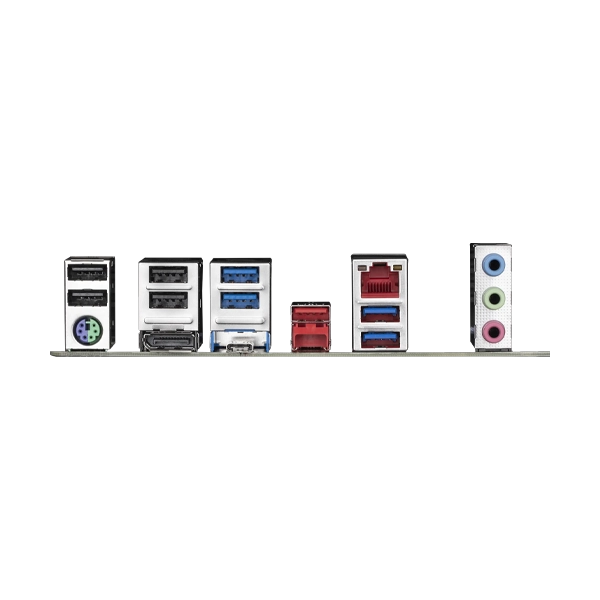

Back Panel Connectors |
4 x USB 2.0/1.1 ports |
|
|
1 x PS/2 keyboard/mouse port |
|
|
1 x DisplayPort (Note) |
|
|
4 x USB 3.2 Gen 1 ports |
|
|
1 x USB4® USB Type-C® port (DisplayPort (Note)) |
|
|
1 x USB 3.2 Gen 2 Type-A port (red) |
|
|
1 x RJ-45 port |
|
|
2 x SMA antenna connectors (2T2R) |
|
|
3 x audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection |
|
|
Temperature detection |
|
|
Fan speed detection |
|
|
Water cooling flow rate detection |
|
|
Fan fail warning |
|
|
Fan speed control |
|
BIOS |
1 x 256 Mbit flash |
|
|
Use of licensed AMI UEFI BIOS |
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features |
Support for GIGABYTE Control Center (GCC) |
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
|
Support for Q-Flash |
|
|
Support for Q-Flash Plus |
|
|
Support for Smart Backup |
|
Bundle Software |
Norton® Internet Security (OEM version) |
|
|
LAN bandwidth management software |
|
Operating System |
Support for Windows 11 64-bit |
|
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
|
Warranty |
3 Years |
|
Note |
|
|
|
* Features, Price, Specifications are subject to change without notice. |
