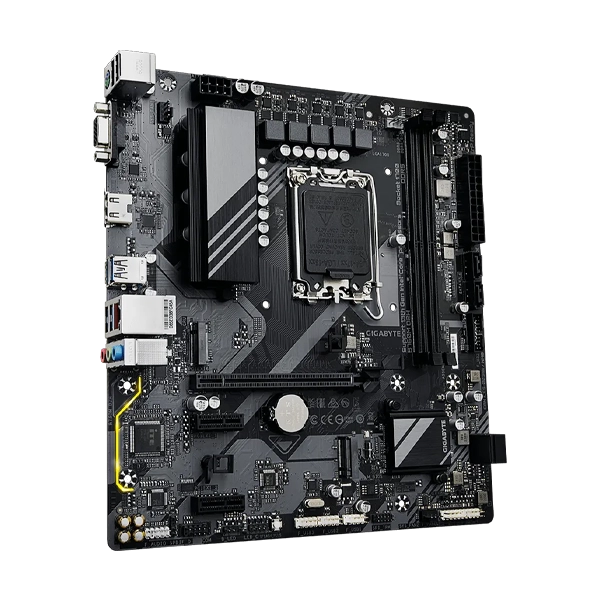

The Gigabyte B760M D2H DDR5 is a reliable micro ATX motherboard designed for 12th and 13th Gen Intel Core processors, offering DDR5 memory support, PCIe 4.0, dual M.2 slots, HDMI and DisplayPort outputs, and solid connectivity for smooth performance in gaming and everyday use.
Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors.
Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution.
Dual Channel DDR5: 2*DIMMs XMP Memory Module Support.
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors.
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.
Fast Networks: 2.5GbE LAN.
Extended Connectivity: HDMI, D-Sub.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
|
Brand |
Gigabyte |
|
Model |
B760M D2H |
|
Color |
Black |
|
CPU |
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
|
|
|
|
|
L3 cache varies with CPU |
|
|
|
|
Chipset |
Intel® B760 Express Chipset |
|
Memory |
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
|
|
|
|
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
|
|
|
|
|
Dual channel memory architecture |
|
|
|
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
|
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
|
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
|
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
|
|
|
|
|
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
|
|
|
|
|
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
|
* Support for HDMI 2.0 version and HDCP 2.3. |
|
|
|
|
|
(Graphics specifications may vary depending on CPU support.) |
|
Audio |
Realtek® Audio CODEC |
|
|
|
|
|
High Definition Audio |
|
|
|
|
|
2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
|
|
|
|
Support for S/PDIF Out |
|
|
|
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Expansion Slots |
CPU: |
|
|
|
|
|
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
|
|
|
|
|
Chipset: |
|
|
|
|
|
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
Storage Interface |
CPU: |
|
|
|
|
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
|
|
|
|
Chipset: |
|
|
|
|
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
|
|
|
|
4 x SATA 6Gb/s connectors |
|
|
|
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
Chipset: |
|
|
|
|
|
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
|
|
|
|
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
|
|
|
|
Chipset+2 USB 2.0 Hubs: |
|
|
|
|
|
4 x USB 2.0/1.1 ports available through the internal USB headers |
|
|
|
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
|
|
|
|
1 x 8-pin ATX 12V power connector |
|
|
|
|
|
1 x CPU fan header |
|
|
|
|
|
2 x system fan headers |
|
|
|
|
|
1 x addressable LED strip header |
|
|
|
|
|
1 x RGB LED strip header |
|
|
|
|
|
2 x M.2 Socket 3 connectors |
|
|
|
|
|
4 x SATA 6Gb/s connectors |
|
|
|
|
|
1 x front panel header |
|
|
|
|
|
1 x front panel audio header |
|
|
|
|
|
1 x S/PDIF Out header |
|
|
|
|
|
1 x USB 3.2 Gen 1 header |
|
|
|
|
|
3 x USB 2.0/1.1 headers |
|
|
|
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
|
|
|
|
1 x serial port header |
|
|
|
|
|
1 x Q-Flash Plus button |
|
|
|
|
|
1 x reset jumper |
|
|
|
|
|
1 x Clear CMOS jumper |
|
|
|
|

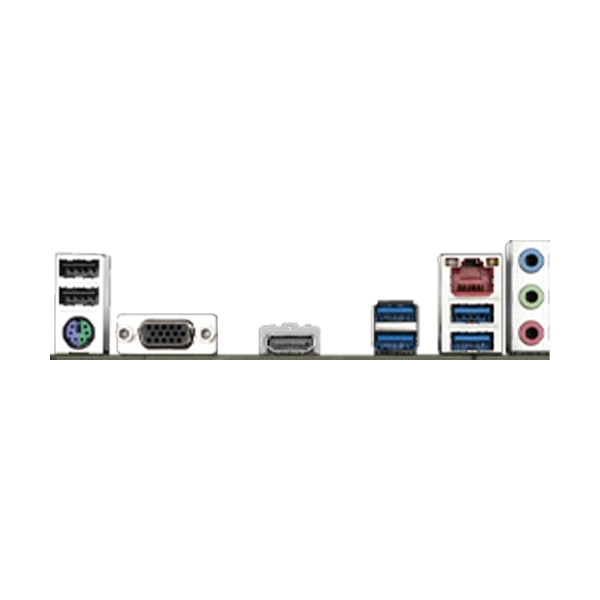

Back Panel Connectors |
1 x PS/2 keyboard/mouse port |
|
|
|
|
|
1 x D-Sub port |
|
|
|
|
|
1 x HDMI port |
|
|
|
|
|
4 x USB 3.2 Gen 1 ports |
|
|
|
|
|
2 x USB 2.0/1.1 ports |
|
|
|
|
|
1 x RJ-45 port |
|
|
|
|
|
3 x audio jacks |
|
|
|
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection |
|
|
|
|
|
Temperature detection |
|
|
|
|
|
Fan speed detection |
|
|
|
|
|
Water cooling flow rate detection |
|
|
|
|
|
Fan fail warning |
|
|
|
|
|
Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
|
|
|
|
BIOS |
1 x 128 Mbit flash |
|
|
|
|
|
Use of licensed AMI UEFI BIOS |
|
|
|
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
|
|
Unique Features |
Support for GIGABYTE Control Center (GCC) |
|
|
|
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
|
|
|
|
Support for Q-Flash |
|
|
|
|
|
Support for Q-Flash Plus |
|
|
|
|
Bundled Software |
Norton® Internet Security (OEM version) |
|
|
|
|
|
LAN bandwidth management software |
|
|
|
|
Operating System |
Support for Windows 11 64-bit |
|
|
|
|
|
Support for Windows 10 64-bit |
|
|
|
|
Form Factor |
Micro ATX Form Factor; 24.4cm x 22.5cm |
|
Warranty |
3 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
