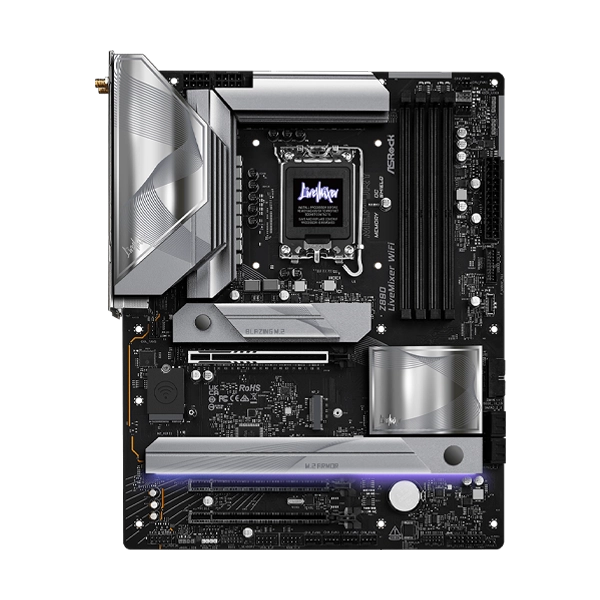

The ASRock Z890 LiveMixer WiFi motherboard supports Intel® Core™ Ultra Processors (Series 2) and offers high-speed connectivity with PCIe Gen5, Thunderbolt™ 4, and Wi-Fi 7. Equipped with dual-channel DDR5 support and robust power phases, it ensures stability and overclocking potential. This motherboard is designed for gamers and professionals, featuring advanced storage options, 2.5G LAN, and high-quality audio for an enhanced computing experience.
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851).
18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA.
4 x DDR5 DIMMs
Supports Dual Channel, up to 9466+ (OC).
1 PCIe 5.0 x16, 2 PCIe 4.0 x16.
Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C.
Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio.
4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
2 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3).
2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
14 USB 3.2 Gen1 (10 Rear, 4 Front)
4 USB 2.0 (Front).
Realtek 2.5G LAN.
802.11be Wi-Fi 7 + Bluetooth.
Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance.
|
Brand |
ASRock |
|
Color |
Black |
|
Model |
Z890 LiveMixer WiFi |
|
Unique Features |
Superb Productivity |
|
– PCIe Gen5 (Graphics, M.2) |
|
|
– Dual Channel DDR5 |
|
|
– Thunderbolt™ 4 Type-C Ports (40 Gb/s) |
|
|
Rock-Solid Durability |
|
|
– Server-Grade Low-Loss PCB |
|
|
– 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor |
|
|
– Memory OC Shield |
|
|
– Flexible Integrated I/O Shield |
|
|
– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) for VCore |
|
|
Ultrafast Connectivity |
|
|
– 2.5G LAN, 802.11be Wi-Fi 7 Module |
|
|
– ASRock Lightning Gaming Ports |
|
|
EZ Update |
|
|
– BIOS Flashback Button |
|
|
– ASRock Auto Driver Installer |
|
|
EZ Troubleshooter |
|
|
– ASRock Post Status Checker |
|
|
CPU |
– Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) |
|
– Supports Intel® Hybrid Technology |
|
|
– Supports Intel® Turbo Boost Max 3.0 Technology |
|
|
– Supports Intel® Thermal Velocity Boost (TVB) |
|
|
– Supports Intel® Adaptive Boost Technology (ABT) |
|
|
– Integrated NPU for dedicated AI acceleration |
|
|
Chipset |
Intel® Z890 |
|
Memory |
– Dual Channel DDR5 Memory Technology |
|
– 4 x DDR5 DIMM Slots |
|
|
– Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC) |
|
|
– Supports Clocked Unbuffered DIMM (CUDIMM) |
|
|
– Max. capacity of system memory: 256GB |
|
|
– Supports Intel® Extreme Memory Profile (XMP) 3.0x |
|
|
BIOS |
256Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics |
– Intel® Xe LPG Graphics Architecture |
|
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
|
|
– 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
|
|
Audio |
– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
|
– Impedance Sensing on Rear Out port |
|
|
– Individual PCB Layers for R/L Audio Channel |
|
|
– Nahimic Audio |
|
|
LAN |
– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
|
– Dragon RTL8125BG |
|
|
– Supports Dragon 2.5G LAN Software |
|
|
– Smart Auto Adjust Bandwidth Control |
|
|
– Visual User Friendly UI |
|
|
– Visual Network Usage Statistics |
|
|
– Optimized Default Setting for Game, Browser, and Streaming Modes |
|
|
– User Customized Priority Control |
|
|
Wireless LAN |
– 802.11be 2×2 Wi-Fi 7 Module |
|
– Supports IEEE 802.11a/b/g/n/ac/ax/axe/be |
|
|
– Supports 2.4GHz/5GHz/6GHz frequency band |
|
|
– Supports 320MHz channel bandwidth with 6GHz frequency band |
|
|
– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology |
|
|
– Supports Bluetooth 5.4 |
|
|
– Supports MU-MIMO |
|
|
Slots |
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
|
– 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode |
|
|
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 |
|
|
Storage |
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
|
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
|
|
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
|
|
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes |
|
|
– 4 x SATA3 6.0 Gb/s Connectors |
|
|
RAID |
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
|
USB |
– 2 x Thunderbolt™ 4 Type-C (Rear) |
|
– 1 x USB 3.2 Gen2x2 Type-C (Front) |
|
|
– 2 x USB 3.2 Gen2 Type-A (Rear) |
|
|
– 14 x USB 3.2 Gen1 (10 Rear, 4 Front) |
|
|
– 4 x USB 2.0 (Front) |
|
|
Connector |
– 1 x Thermistor Cable Header |
|
– 1 x SPI TPM Header |
|
|
– 1 x Power LED and Speaker Header |
|
|
– 1 x RGB LED Header |
|
|
– 3 x Addressable LED Headers |
|
|
– 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) |
|
|
– 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
|
|
– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
|
|
– 1 x 24 pin ATX Power Connector |
|
|
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
|
|
– 1 x Front Panel Audio Connector |
|
|
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
|
|
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
|
|
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
|
|
Rear Panel I/O |
– 2 x Antenna Ports |
|
– 1 x HDMI Port |
|
|
– 1 x Optical SPDIF Out Port |
|
|
– 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) |
|
|
– 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) |
|
|
– 10 x USB 3.2 Gen1 Ports |
|
|
– 1 x RJ-45 LAN Port |
|
|
– 1 x BIOS Flashback Button |
|
|
– 1 x Line Out Jack (Gold Audio Jack) |
|
|
– 1 x Microphone Input Jack (Gold Audio Jack) |
|
|
Software & UEFI |
Software |
|
– ASRock Motherboard Utility (A-Tuning) |
|
|
– ASRock Dragon 2.5G LAN Software |
|
|
– ASRock Polychrome SYNC |
|
|
UEFI |
|
|
– ASRock EZ Mode |
|
|
– ASRock Full HD UEFI |
|
|
– ASRock My Favorites in UEFI |
|
|
– ASRock Auto Driver Installer |
|
|
– ASRock Instant Flash |
|
|
Accessories |
– 2 x SATA Data Cables |
|
– 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
|
|
– 1 x Thermistor Cable |
|
|
Form Factor |
– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|
– 2oz Copper PCB |
|
|
OS |
Microsoft Windows® 11 64-bit |
|
Certifications |
– FCC, CE |
|
– ErP/EuP ready (ErP/EuP ready power supply is required) |
|
|
Warranty |
3-Year Warranty |
|
Note |
Features, Price, Specifications are subject to change without notice. |
