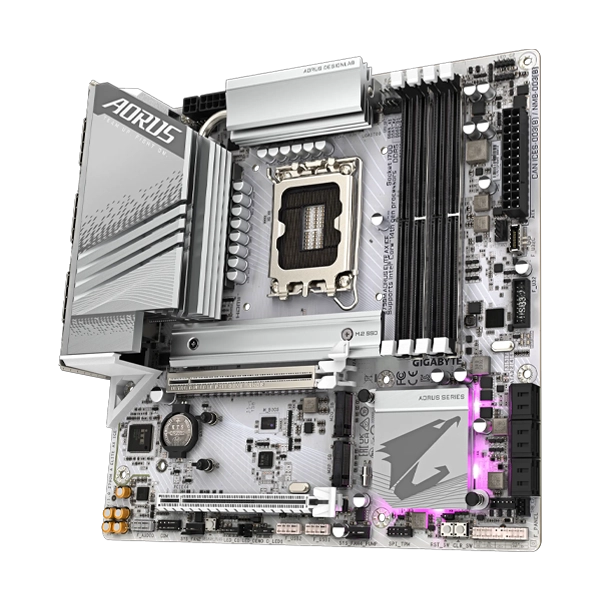

Discover the Gigabyte Z790M Aorus Elite AX ICE Motherboard at the lowest price in India. Featuring Intel LGA 1700, DDR5, PCIe 5.0, Wi-Fi 6E, and advanced thermal design, this micro-ATX motherboard ensures top performance for 12th, 13th, and 14th Gen Intel processors.
Intel® Socket LGA 1700: Support 14th and 13th Gen Series Processors.
Unparalleled Performance: Twin 12+1+1 Phases Digital VRM Solution.
Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 Memory Module Support.
Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors.
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance.
EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design.
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
|
Brand |
Gigabyte |
|
Model |
Z790M A ELITE AX ICE |
|
Colour |
White |
|
CPU Socket Type |
LGA 1700 |
|
CPU Type |
Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold |
|
Chipsets |
|
|
Chipset |
Intel Z790 |
|
Memory |
|
|
Number of Memory Slots |
4x288pin (DDR5) |
|
Memory Standard |
DDR5 4800 |
|
Maximum Memory Supported |
192GB |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
Expansion Slots |
|
|
PCI Express 5.0 x16 |
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
PCI Express 4.0 x16 |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
Storage Devices |
|
|
SATA 6Gb/s |
6 x SATA 6Gb/s |
|
M.2 |
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
SATA RAID |
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
Additional RAID Controller |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
|
Onboard Audio |
|
|
Audio Chipset |
Realtek ALC1220 |
|
Audio Channels |
7.1 Channels |
|
Onboard LAN |
|
|
Max LAN Speed |
2.5Gbps |
|
Wireless LAN |
Wi-Fi 802.11 ax |
|
Bluetooth |
BLUETOOTH 5.3 |
|
Rear Panel Ports |
|
|

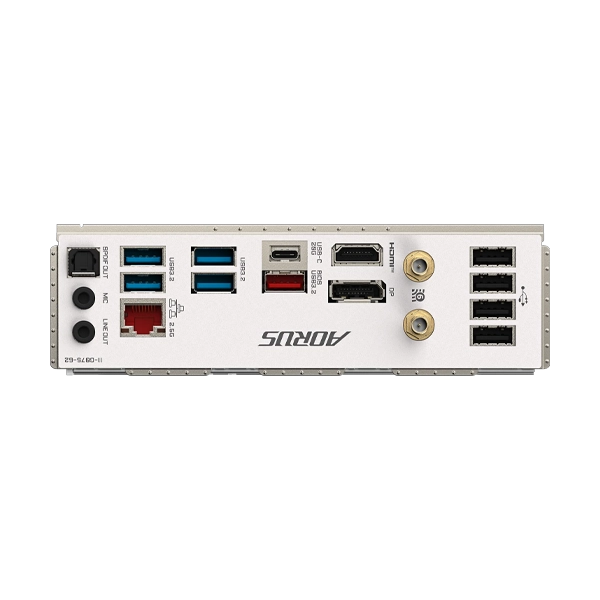

Back I/O Ports |
1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
Internal I/O Connectors |
|
|
Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|
Other Connectors |
1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper |
|
Physical Spec |
|
|
Form Factor |
Micro ATX |
|
Dimensions (W x L) |
9.6" x 9.6" |
|
Power Pin |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
|
Windows Compatibility |
|
|
Windows 11 |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
Features |
|
|
Features |
Support for GIGABYTE Control Center Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
