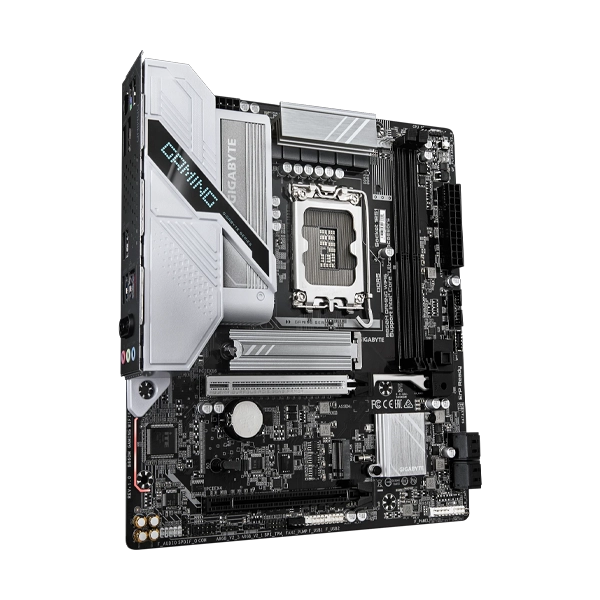

The GIGABYTE B860M Gaming WiFi6 is a compact and efficient micro-ATX motherboard designed for Intel 14th, 13th, and 12th Gen processors. It supports high-speed DDR5 memory, features PCIe 5.0 slots for next-gen graphics and storage, and comes with built-in WiFi 6 and 2.5GbE LAN for fast and stable connectivity.
Supports Intel® Core™ Ultra processors (Series 2).
Hybrid 8+1+2 phases VRM solution.
D5 Bionic Corsa for Infinite Memory Performance.
AI Perfdrive : Provides optimal and customized BIOS preset profile for users.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard.
Fast Networking : 2.5GbE LAN & Wi-Fi 6 802.11ax.
Extended Connectivity : HDMI, DisplayPort.
|
Brand |
Gigabyte |
|
Modal |
B860M-GAMING-WIFI6 |
|
Color |
Black |
|
Platform |
INTEL |
|
Socket |
LGA1851 |
|
Cpu Type |
Core Ultra |
|
Chipset |
B860 |
|
Memory Speed |
up to 9066 |
|
Max Memory Support |
128 GB |
|
Supported Memory Type |
DDR5 |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
Graphics Port |
1 x HDMI Port,1 x DisplayPort |
|
Expansion Slots |
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
Wireless Networking |
WiFi 6,Bluetooth 5.3 |
|
Back Panel I/O Ports |

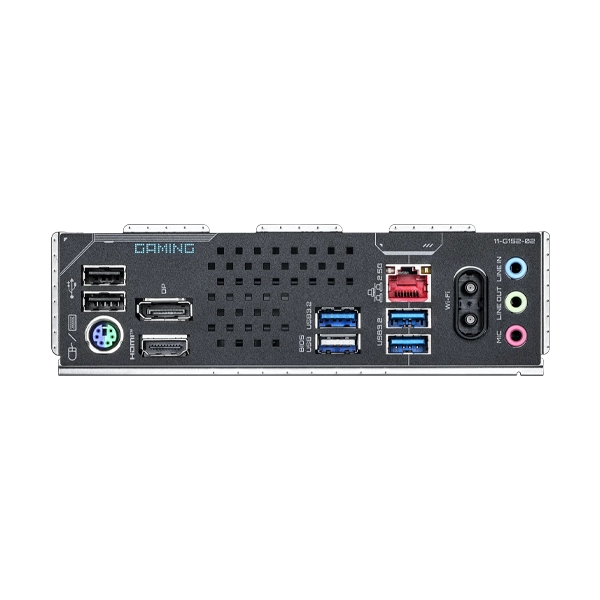

1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
|
Internal I/O Connector |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
Form Factor |
Micro-ATX |
|
Warranty |
3 Years |
|
Note |
Price, Feature and Specifications Are Subject To Change Without Notice |
