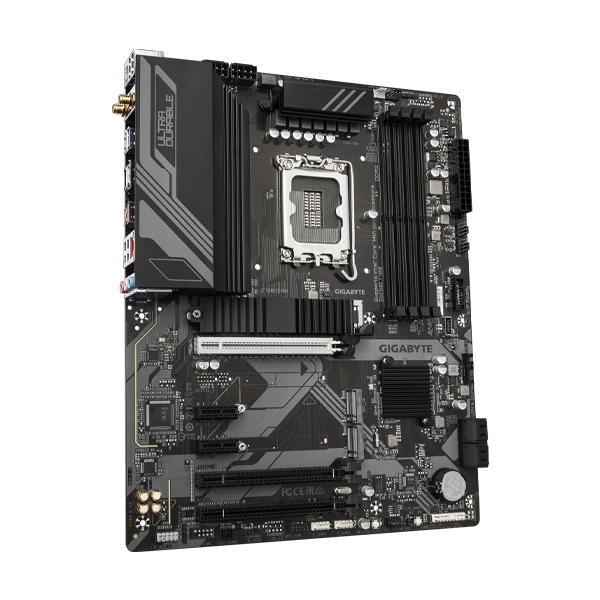

Discover the Gigabyte Z790 D AX (Wi-Fi) Motherboard at the lowest price in India. Featuring Intel LGA1700 support, DDR5, PCIe 5.0, Wi-Fi 6E, and triple M.2 slots for top-tier gaming and performance.
Gigabyte Supports Intel® Core™ 14th/ 13th /12th processors.
Unparalleled Performance: Twin 12*+1+1 Phases Digital VRM Solution.
Dual Channel DDR5: 4*DIMMs with XMP 3.0 Memory Module Support.
Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors.
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance.
EZ-Latch: PCIe 4.0×16 Slot with Quick Release Design.
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity: DP, HDMI, Rear USB-C® 10Gb/s.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
Brand |
Gigabyte |
Model |
Z790 D AX |
Colour |
Black |
CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
|
(Check GIGABYTE's website for the latest CPU support list.) |
|
L3 cache varies with CPU |
Chipset |
Intel® Z790 Express Chipset |
Memory |
14th and 13th Generation Intel® Core™ i9/i7 Processors: |
|
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules |
|
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: |
|
- Support for DDR5 4800/4400 MT/s memory modules |
|
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
|
Dual-channel memory architecture |
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
Support for Extreme Memory Profile (XMP) memory modules |
|
(Refer to "Memory Support List" on GIGABYTE's website for detailed information.) |
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
|
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
Audio |
Realtek® Audio CODEC |
|
High Definition Audio |
|
2/4/5.1/7.1-channel audio |
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication |
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) |
|
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
|
- BLUETOOTH 5.3 |
Expansion Slots |
CPU: |
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
Chipset: |
|
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) |
|
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
Storage Interface |
CPU: |
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
Chipset: |
|
- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
- 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
- 4 x SATA 6Gb/s connectors |
USB |
Chipset: |
|
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
|
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
|
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
|
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
- 2 x USB 2.0/1.1 ports on the back panel |
|
Chipset+USB 2.0 Hub: |
|
- 4 x USB 2.0/1.1 ports, available through the internal USB headers |
Internal I/O Connectors |
Various connectors for power, fans, LEDs, audio, USB, etc. |

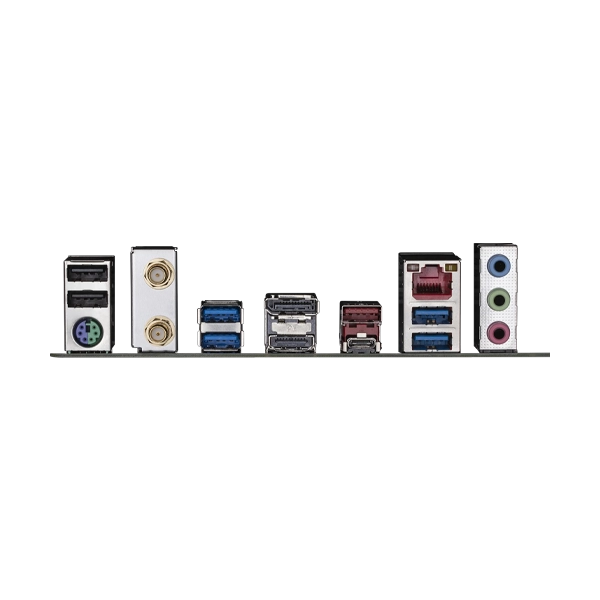

Back Panel Connectors |
Various ports including USB, audio, HDMI, DisplayPort, LAN, etc. |
I/O Controller |
iTE® I/O Controller Chip |
H/W Monitoring |
Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control |
BIOS |
1 x 256 Mbit flash, AMI UEFI BIOS |
Unique Features |
Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
Bundled Software |
Norton® Internet Security (OEM version), LAN bandwidth management software |
Operating System |
Support for Windows 11 64-bit, Windows 10 64-bit |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
Warranty |
3 Years |
Note |
*Features, Price and Specifications are subject to change without notice. |
