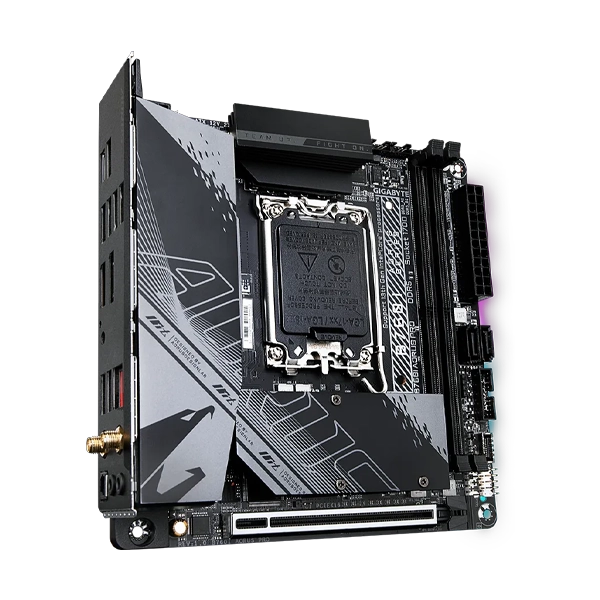

The Gigabyte B760I AORUS PRO is a powerful mini-ITX motherboard designed for 12th and 13th Gen Intel Core processors, featuring DDR5 memory support, PCIe 5.0, dual M.2 slots, USB 3.2, and robust thermal design
Supports Intel® Core™ 14th/ 13th /12th processors.
Unparalleled Performance: Direct 8+1+1 Phases Digital VRM Solution.
Dual Channel DDR5: 2*DIMMs with XMP 3.0 Memory Module Support.
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors.
Advanced Thermal Design: Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate.
Fast Networks: Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity: Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI.
RGB FUSION: Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
|
Brand |
Gigabyte |
|
Model |
B760I AORUS PRO |
|
Color |
Black |
|
Supported CPU |
|
|
CPU Socket Type |
LGA 1700 |
|
CPU Type |
Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* * Please refer to "CPU Support List" for more information. |
|
Chipsets |
|
|
Chipset |
Intel B760 |
|
Memory |
|
|
Number of Memory Slots |
2x288pin (DDR5) |
|
Memory Standard |
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
Maximum Memory Supported |
96GB |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
Expansion Slots |
|
|
PCI Express 4.0 x16 |
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
|
Storage Devices |
|
|
SATA 6Gb/s |
2 x SATA 6Gb/s |
|
M.2 |
CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
SATA RAID |
RAID 0 and RAID 1 support for SATA storage devices |
|
Onboard Audio |
|
|
Audio Chipset |
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
Audio Channels |
7.1 Channels |
|
Onboard LAN |
|
|
LAN Chipset |
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Max LAN Speed |
2.5Gbps |
|
Wireless LAN |
Wi-Fi 802.11 ax |
|
Bluetooth |
BLUETOOTH 5.3 |
|

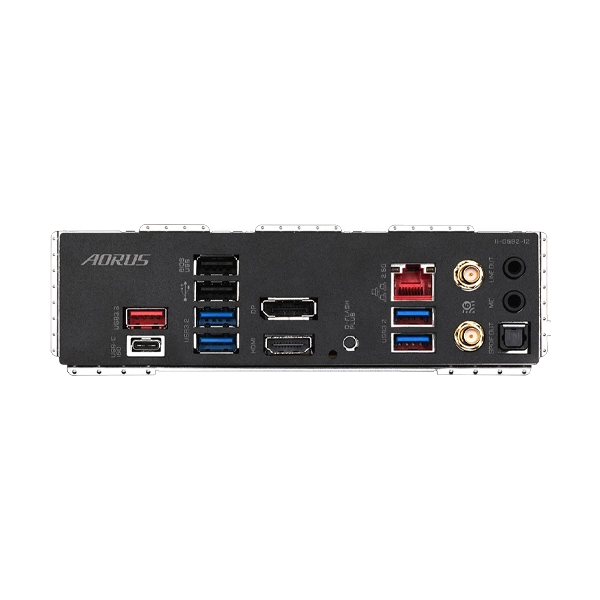

Rear Panel Ports |
|
|
Back I/O Ports |
1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks |
|
Internal I/O Connectors |
|
|
Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
|
Other Connectors |
1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
Physical Spec |
|
|
Form Factor |
Mini ITX |
|
Dimensions (W x L) |
6.7" x 6.7" |
|
Power Pin |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
|
Windows Compatibility |
|
|
Windows 11 |
Supported |
|
Features |
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|
Warranty: |
3 Years |
|
Note: |
**Features, Price, Specifications are subject to change without notice. Images used for representation purposes only. |
