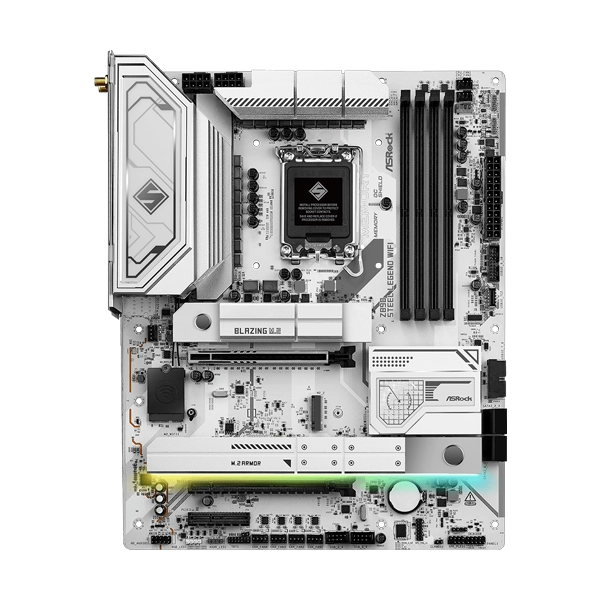

ASRock Z890 Steel Legend WiFi DDR5 Motherboard

The ASRock Z890 STEEL LEGEND WIFI embodies the Steel Legend philosophy of rock-solid durability and compelling aesthetics. Built with demanding specs and features, this model is designed for daily users and mainstream enthusiasts, offering a robust selection of materials and components to ensure stable, reliable performance.

SKU:

Z890 STEEL LEGEND WIFI | 0 Reviews

₹ 38,921 ~ ₹ 17,999 54 OFF

Availability:

Out of stock

Wishlist

ASRock Z890 Steel Legend WiFi DDR5 Motherboard

FEATURES

Supports Intel Core Ultra Processors (Series 2) (LGA1851)
18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA.
4 x DDR5 DIMMs.
Supports Dual Channel, up to 9466+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x4
Graphics Output Options: 1 HDMI
2 Thunderbolt 4 Type-C
Realtek ALC1220 7.1 CH HD Audio Codec
Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
2 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
2 Thunderbolt 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN
Intel 802.11be Wi-Fi 7 + Bluetooth
Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance

Specifications

Brand	ASRock
Color	White
Model	Z890 STEEL LEGEND WIFI
Unique Feature
Superb Productivity	– PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s)
Rock-Solid Durability	– Server-Grade Low-Loss PCB – 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity	– 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports
EZ Update	– BIOS Flashback Button – ASRock Auto Driver Installer
EZ Troubleshooter	– ASRock Post Status Checker
CPU	– Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) – Integrated NPU for dedicated AI acceleration
Chipset	Intel® Z890
Memory	– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)* – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	– Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
Audio	– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software
Wireless LAN	– 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 320MHz channel bandwidth with 6GHz* frequency band – Supports Bluetooth 5.4 – Supports MU-MIMO
Slots
CPU Slots	– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset Slots	– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
CPU Storage	– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset Storage	– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB
CPU USB	– 2 x Thunderbolt™ 4 Type-C (Rear)
Chipset USB	– 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 8 x USB 3.2 Gen1 (4 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front)
Connector	– 1 x Thermistor Cable Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers** – 2 x CPU Fan Connectors (4-pin) – 5 x Chassis Fan Connectors (4-pin) – 1 x AIO Pump Fan Connector (4-pin) – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers<br>- 2 x USB 3.2 Gen1 Headers – 1 x Front Panel Type C USB 3.2 Gen2x2 Header

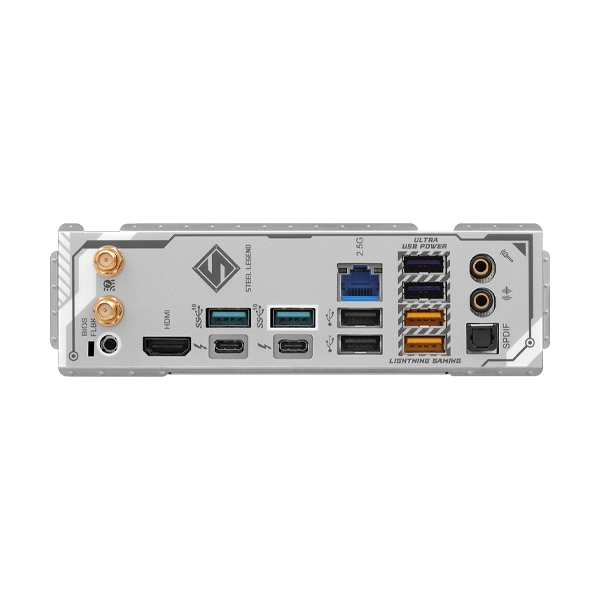

Rear Panel I/O	– 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x Thunderbolt™ 4 Type-C Ports – 2 x USB 3.2 Gen2 Type-A Ports – 4 x USB 3.2 Gen1 Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – 1 x Line Out Jack – 1 x Microphone Input Jack
Software and UEFI	– ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash
Accessories	– 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 1 x Thermistor Cable
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS	Microsoft Windows® 11 64-bit
Certifications	– FCC, CE<br>- ErP/EuP ready
Warranty	3 Years
Note	* Features, Price, Specifications are subject to change without notice.
