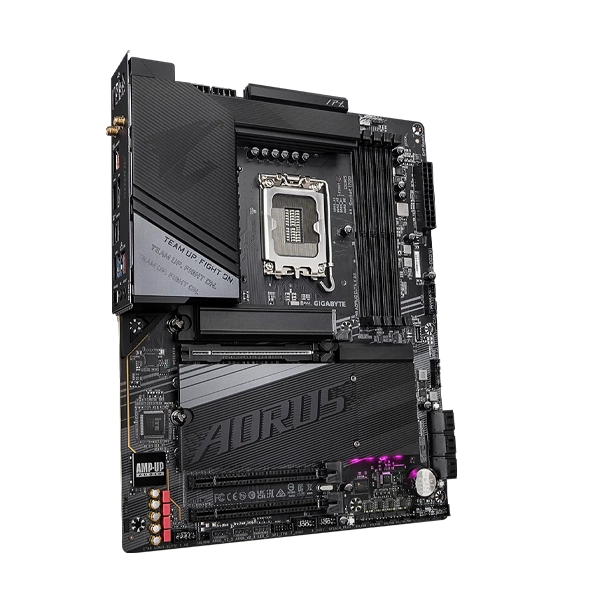

Gigabyte Z790 Aorus Elite X AX Motherboard

Shop the Gigabyte Z790 Aorus Elite X AX DDR5 Motherboard at the lowest price in India. Supports Intel 12th, 13th & 14th Gen processors, PCIe 5.0, Wi-Fi 6E, and 2.5GbE LAN for ultimate gaming performance.

SKU:
Z790 AORUS ELITE X AX |     0 Reviews
₹ 53,000 ~ ₹ 33,099 38 OFF
Availability:
In stock

Gigabyte Z790 Aorus Elite X AX Motherboard


FEATURES


  • Supports Intel Core 14th and 13th processors.


  • Digital twin 16+1+2 phases VRM solution.


  • Dual Channel DDR5: 4x DIMMs with XMP 3.0 memory module support.


  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.


  • EZ-Latch Click: M.2 heatsinks with screwless design.


  • EZ-Latch Plus: M.2 slots with quick release design.


  • UC BIOS: User-Centred intuitive UX with Quick Access function.


  • Ultra-Fast Storage: 4x PCIe 4.0 x4 M.2 slots.


  • Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L.


  • Fast Networking: 2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna.


  • Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s.


  • Precision Audio: ALC1220 & Audiophile Grade Capacitors.



SPECIFICATIONS



Brand

Gigabyte

Model

Z790 AORUS ELITE X AX

Colour

Black

CPU

LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors



L3 cache varies with CPU

Chipset

Intel® Z790 Express Chipset

Memory

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules



4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory



Dual channel memory architecture



Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)



Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules



Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:



1 x HDMI port, supporting a maximum resolution







Support for HDMI 2.0 version and HDCP 2.3.



1 x DisplayPort, supporting a maximum resolution



Support for DisplayPort 1.2 version and HDCP 2.3

Audio

Realtek® Audio CODEC



High Definition Audio



2/4/5.1/7.1-channel



Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 6E AX211



WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands



BLUETOOTH 5.3



Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

CPU:



1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)







For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:



2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)



Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage Interface

CPU:



1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)







Chipset:



2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)



1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)



6 x SATA 6Gb/s connectors

USB

Chipset:



1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support



1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header



2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel



5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)







Chipset+2 USB 2.0 Hubs:



8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper

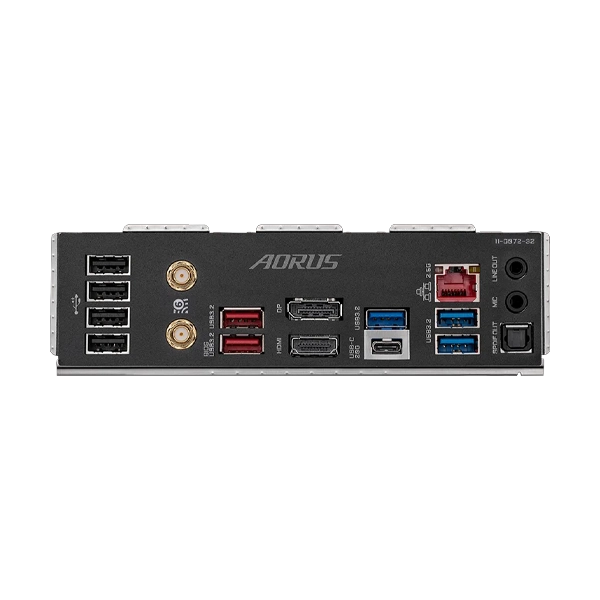

Back Panel Connectors

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection



Temperature detection



Fan speed detection



Water cooling flow rate detection



Fan fail warning



Fan speed control

BIOS

1 x 256 Mbit flash



Use of licensed AMI UEFI BIOS



PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)



Support for Q-Flash



Support for Q-Flash Plus



Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)



LAN bandwidth management software

Operating System

Support for Windows 11 64-bit Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Warranty

3 Years

Note

*Features, Price and Specifications are subject to change without notice.
