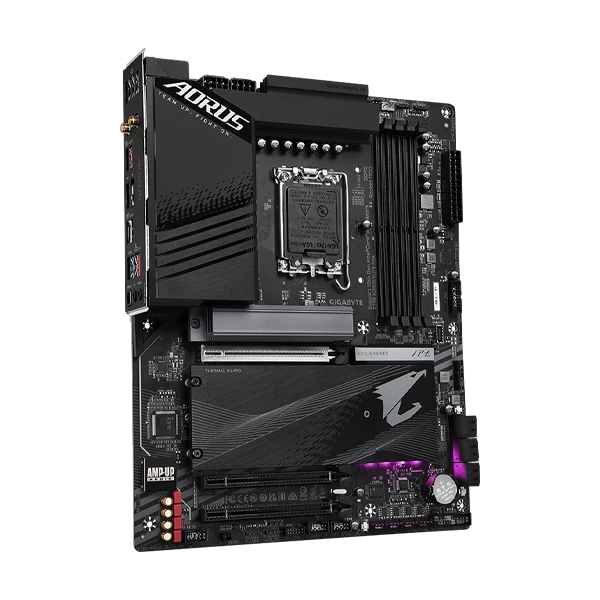

Gigabyte Z790 Aorus Elite AX Motherboard

The Gigabyte Z790 AORUS Elite AX is a high-performance ATX motherboard built for Intel 12th, 13th, and 14th Gen processors. It features support for DDR5 memory up to 7600+ MHz, PCIe 5.0 for next-gen GPUs, Gen4 M.2 SSD slots, and advanced connectivity with Wi-Fi 6E, 2.5Gb Ethernet, and multiple USB 3.2 ports. Designed for gamers and power users, it includes a robust VRM, Smart Fan 6 cooling, Q-Flash Plus, and a stylish, durable design—ideal for powerful, future-ready PC builds.

SKU:

Z790 AORUS ELITE AX | 0 Reviews

₹ 56,000 ~ ₹ 28,199 50 OFF

Availability:

In stock

Wishlist

Gigabyte Z790 Aorus Elite AX Motherboard

FEATURES

Supports Intel^® Core™ 14th/ 13th /12th processors.
Unparalleled Performanc: Twin 16*+2+1+1 Phases Digital VRM Solution.
Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 Memory Module Support.
Next Generation Storage: 4*PCIe 4.0 x4 M.2 Connectors.
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance.
EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design.
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity: DP, HDMI, Front USB-C^® 10Gb/s, Rear USB-C^® 20Gb/s.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

SPECIFICATION

Brand

Gigabyte

Model

Z790 AORUS ELITE AX

Color

Black

CPU

LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

L3 cache varies with CPU

Chipset

Intel® Z790 Express Chipset

Memory

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution

Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution

Support for DisplayPort 1.2 version and HDCP 2.3

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel® Wi-Fi 6E AX211

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage Interface

CPU:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

6 x SATA 6Gb/s connectors

USB

Chipset:

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x Clear CMOS button

1 x reset jumper

1 x Clear CMOS jumper

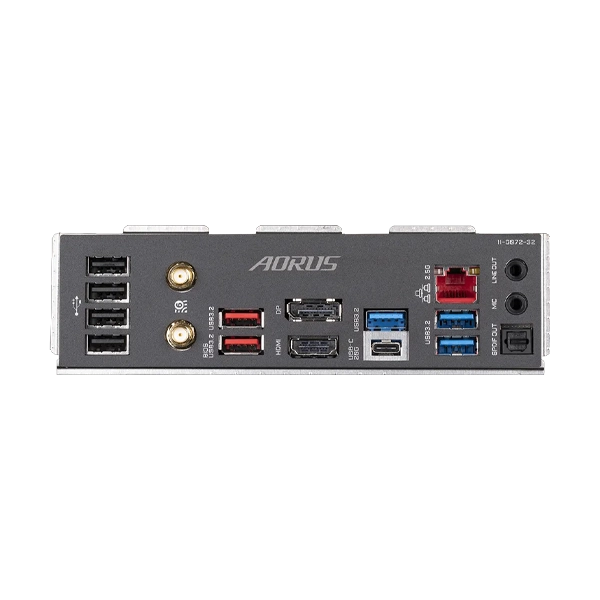

Back Panel Connectors

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

1 x HDMI 2.0 port

1 x DisplayPort

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Warranty

3 Years

Note

**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only.
