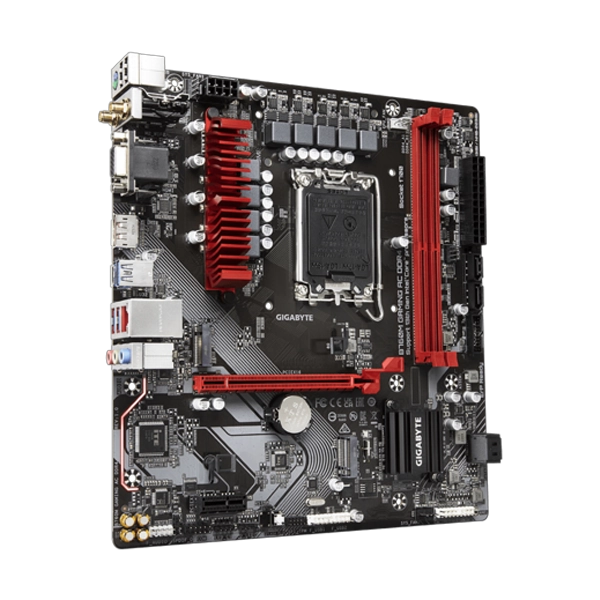

The Gigabyte B760M Gaming AC DDR4 is a feature-rich micro ATX motherboard built for 12th and 13th Gen Intel Core processors. It supports DDR4 memory, PCIe 4.0, dual M.2 slots, built-in Wi-Fi AC,
Intel® Socket LGA 1700: Support 14th, 13th and 12th Gen Series Processors.
Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution.
Dual Channel DDR4: 2*DIMMs XMP Memory Module Support.
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors.
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.
Fast Networks: 2.5GbE LAN & Wi-Fi 802.11ac.
Extended Connectivity: Rear USB-C® 5Gb/s, DP, HDMI, D-Sub.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
|
Brand |
Gigabyte |
|
Model |
B760M GAMING AC DDR4 |
|
Color |
Black |
|
CPU |
LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
|
|
L3 cache varies with CPU |
|
|
(Please refer "CPU Support List" for more information.) |
|
Chipset |
Intel® B760 Express Chipset |
|
Memory |
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules |
|
|
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
|
|
Dual channel memory architecture |
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
(Please refer "Memory Support List" for more information.) |
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
|
|
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
|
|
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
|
* Support for HDMI 2.0 version and HDCP 2.3. |
|
|
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
|
* Support for DisplayPort 1.2 version and HDCP 2.3 |
|
|
(Graphics specifications may vary depending on CPU support.) |
|
|
Support for up to 3 displays at the same time |
|
Audio |
Realtek® Audio CODEC |
|
|
High Definition Audio |
|
|
2/4/5.1/7.1-channel |
|
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
|
Support for S/PDIF Out |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) |
|
|
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band |
|
|
BLUETOOTH 4.2 |
|
|
Support for 11ac wireless standard and up to 433 Gbps data rate |
|
|
(Actual data rate may vary depending on environment and equipment.) |
|
Expansion Slots |
CPU: |
|
|
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
|
|
Chipset: |
|
|
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
Storage Interface |
CPU: |
|
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
|
Chipset: |
|
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
|
4 x SATA 6Gb/s connectors |
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
Chipset: |
|
|
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support |
|
|
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
|
|
2 x USB 2.0/1.1 ports on the back panel |
|
|
Chipset+USB 2.0 Hubs: |
|
|
4 x USB 2.0/1.1 ports available through the internal USB headers |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
|
1 x 8-pin ATX 12V power connector |
|
|
1 x CPU fan header |
|
|
3 x system fan headers |
|
|
1 x addressable LED strip headers |
|
|
1 x RGB LED strip headers |
|
|
2 x M.2 Socket 3 connectors |
|
|
4 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x S/PDIF Out header |
|
|
1 x USB 3.2 Gen 1 header |
|
|
2 x USB 2.0/1.1 headers |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
|
1 x serial port header |
|
|
1 x Q-Flash Plus button |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|

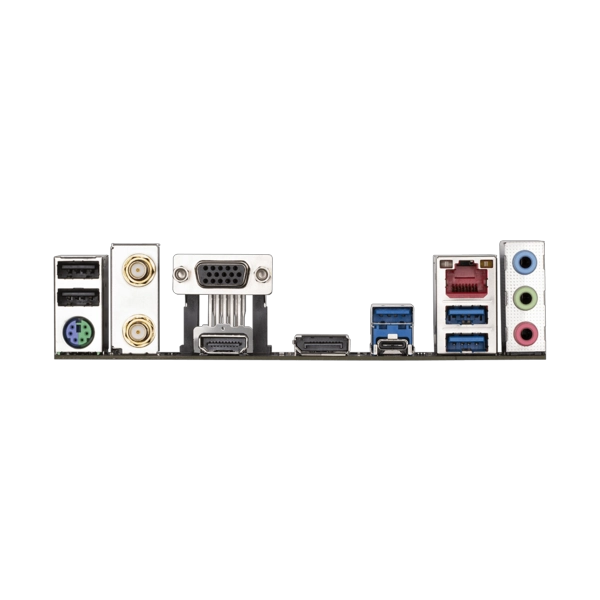

Back Panel Connectors |
2 x USB 2.0/1.1 ports |
|
|
1 x PS/2 keyboard/mouse port |
|
|
2 x SMA antenna connectors (1T1R) |
|
|
1 x D-Sub port |
|
|
1 x HDMI port |
|
|
1 x DisplayPort |
|
|
3 x USB 3.2 Gen 1 ports |
|
|
1 x USB Type-C® port, with USB 3.2 Gen 1 support |
|
|
1 x RJ-45 port |
|
|
3 x audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection |
|
|
Temperature detection |
|
|
Fan speed detection |
|
|
Water cooling flow rate detection |
|
|
Fan fail warning |
|
|
Fan speed control |
|
|
* Whether the fan speed control function is supported will depend on the fan you install. |
|
BIOS |
1 x 128 Mbit flash |
|
|
Use of licensed AMI UEFI BIOS |
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features |
Support for GIGABYTE Control Center (GCC) |
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
|
Support for Q-Flash |
|
|
Support for Q-Flash Plus |
|
Bundled Software |
Norton® Internet Security (OEM version) |
|
|
LAN bandwidth management software |
|
Operating System |
Support for Windows 11 64-bit |
|
|
Support for Windows 10 64-bit |
|
Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
|
Warranty: |
3 Years |
|
Note: |
**Features, Price, Specifications are subject to change without notice. Images used for representation purposes only. |
