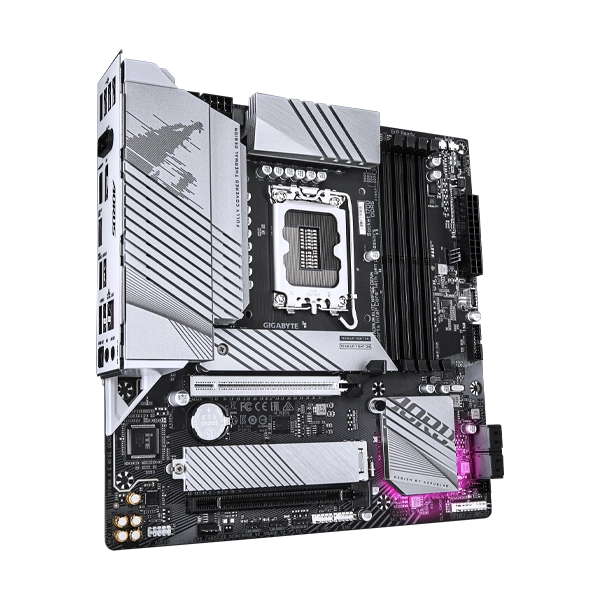

The Gigabyte B760M AORUS ELITE WIFI6E Motherboard, featuring Intel LGA 1700 support, DDR5, PCIe 5.0, Wi-Fi 6E, and advanced thermal design, this mATX motherboard is perfect for gaming and high-performance PCs.
PCIe Gen5 Performance : Perfect Sync to Win.
Supports Intel® Core™ 14th/ 13th /12th processors.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design.
EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design.
PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support.
Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution.
Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support.
Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI.
Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors.
Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card.
High-Res Audio : ALC1220 & High-End Audio Capacitors.
|
Brand |
Gigabyte |
|
Model |
B760M A E WF6E GEN5 |
|
Colour |
Black |
|
CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,Pentium® Gold and Celeron® Processors |
|
|
(Go to GIGABYTE's website for the latest CPU support list.) |
|
|
L3 cache varies with CPU |
|
Chipset |
Intel® B760 Express Chipset |
|
Memory |
14th and 13th Generation Intel® Core™ i9/i7 Pocessors: |
|
|
- Support for DDR5 5600/5200/4800/4400 MT/s memory modulesjk |
|
|
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: |
|
|
- Support for DDR5 4800/4400 MT/s memory modulesjk |
|
|
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryjk |
|
|
Dual channel memory architecture |
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
|
|
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
|
* Support for HDMI 2.1 version and HDCP 2.3. |
|
|
** Support for native HDMI 2.1 TMDS compatible ports. |
|
|
|
|
|
|
|
|
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
|
* Support for DisplayPort 1.2 version and HDCP 2.3 |
|
|
|
|
|
|
|
|
(Graphics specifications may vary depending on CPU support.) |
|
Audio |
Realtek® Audio CODEC |
|
|
High Definition Audio |
|
|
2/4/5.1/7.1-channel |
|
|
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
|
Support for S/PDIF Out |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
Intel® Wi-Fi 6E AX210 |
|
|
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
|
|
- BLUETOOTH 5.3 |
|
|
- Support for 11ax 160MHz wireless standard |
|
|
(Actual data rate may vary depending on environment and equipment.) |
|
Expansion Slots |
CPU: |
|
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
Chipset: |
|
|
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
Storage Interface |
CPU: |
|
|
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
|
Chipset: |
|
|
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
|
- 4 x SATA 6Gb/s connectors |
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
Chipset: |
|
|
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
|
|
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
|
|
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
|
|
- 1 x USB 3.2 Gen 1 port on the back panel |
|
|
- 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
|
Chipset+USB 3.2 Gen 1 Hub: |
|
|
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
|
Chipset+USB 2.0 Hub: |
|
|
- 4 x USB 2.0/1.1 ports on the back panel |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
|
1 x 8-pin ATX 12V power connector |
|
|
1 x 4-pin ATX 12V power connector |
|
|
1 x CPU fan header |
|
|
3 x system fan headers |
|
|
3 x addressable RGB Gen2 LED strip headers |
|
|
1 x RGB LED strip header |
|
|
2 x M.2 Socket 3 connectors |
|
|
4 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
|
|
1 x USB 3.2 Gen 1 header |
|
|
2 x USB 2.0/1.1 headers |
|
|
2 x Thunderbolt™ add-in card connectors |
|
|
1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
|
1 x Q-Flash Plus button |
|
|
1 x reset button |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|

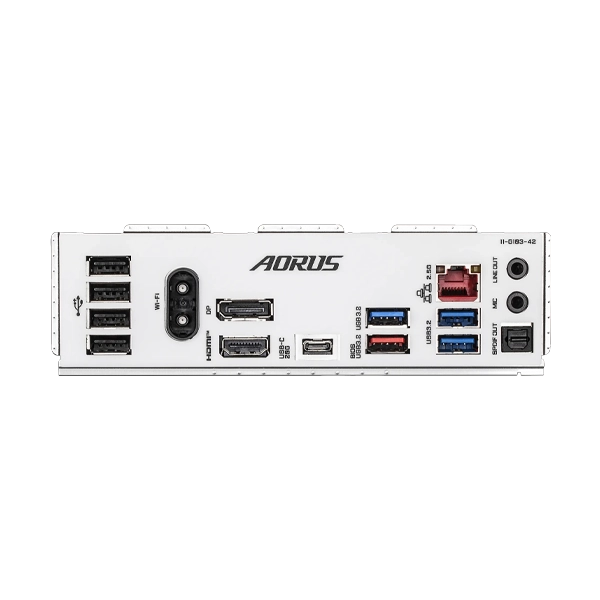

Back Panel Connectors |
2 x antenna connectors (2T2R) |
|
|
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
|
|
1 x USB 3.2 Gen 2 Type-A port (red) |
|
|
3 x USB 3.2 Gen 1 ports |
|
|
4 x USB 2.0/1.1 ports |
|
|
1 x HDMI port (Note) |
|
|
1 x DisplayPort (Note) |
|
|
1 x RJ-45 port |
|
|
1 x optical S/PDIF Out connector |
|
|
2 x audio jacks |
|
|
(Note) Actual support may vary by CPU. |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection |
|
|
Temperature detection |
|
|
Fan speed detection |
|
|
Water cooling flow rate detection |
|
|
Fan fail warning |
|
|
Fan speed control |
|
|
* Whether the fan speed control function is supported will depend on the fan you install. |
|
BIOS |
1 x 256 Mbit flash |
|
|
Use of licensed AMI UEFI BIOS |
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
