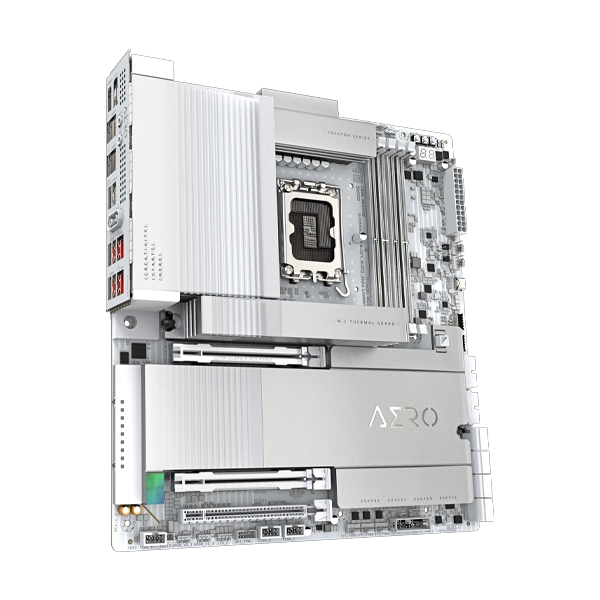

Gigabyte Z890 AERO D White is a premium E-ATX motherboard designed for Intel Core Ultra (Series 2) processors on the LGA 1851 socket, tailored for content creators and high-performance PC builds. It supports ultra-fast DDR5 memory (up to 9500 MHz OC), features a robust 16+1+2 phase VRM, and comes with cutting-edge connectivity like Thunderbolt 5 Wi-Fi 7, and dual 10GbE LAN.
Supports Intel® Core™ Ultra processors (Series 2).
VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging.
Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU.
Extended Connectivity : Dual THUNDERBOLT™ 5 Type-C®with DP-Alt, HDMI.
Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4.
Blazing Fast Networks : Daul 10 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna.
Digital twin 16+1+2 phases VRM solution.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
D5 Bionic Corsa for Infinite Memory Performance.
AORUS AI SNATCH : Auto-Overclocking Software by AI models.
AI Perfdrive : Provides optimal and customized BIOS preset profile for users.
Premium Compatibility : 4*DDR5 with XMP Memory Module Support.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL.
ESSential High-Fidelity Audio : ESS9260 DAC.
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
|
Brand |
Gigabyte |
|
Model |
Z890 AERO D |
|
Color |
White |
|
CPU |
LGA1851 socket: Support for Intel® Core™ Ultra Processors |
|
|
L3 cache varies with CPU |
|
|
* Please refer to “CPU Support List” for more information. |
|
Chipset |
Intel® Z890 Express Chipset |
|
Memory |
Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
|
|
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
|
|
Dual channel memory architecture |
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) |
|
Onboard Graphics |
Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller: |
|
|
– 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680×4320@60 Hz (single display output) |
|
|
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.) |
|
|
* Support for DisplayPort 2.1 version and HDCP 2.3Integrated Graphics Processor-Intel® HD Graphics support: |
|
|
– 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs |
|
|
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). |
|
|
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). |
|
|
* Support for DisplayPort 2.1 version and HDCP 2.3- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
|
|
* Support for HDMI 2.1 version and HDCP 2.3. |
|
|
(Graphics specifications may vary depending on CPU or graphics card support.) |
|
|
Support for up to triple-display at the same time |
|
Audio |
ESS ES9260 CODEC (rear panel audio) |
|
|
– High Definition Audio |
|
|
– 2-channel |
|
|
Realtek® ALC897 CODEC (front panel audio) |
|
LAN |
2 x Marvell® AQtion AQC113C 10GbE LAN chips |
|
|
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication Module |
Intel® Wi-Fi 7 BE200 |
|
|
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
|
|
– BLUETOOTH 5.4 |
|
|
– Support for 11be 320MHz wireless standard |
|
|
(Actual data rate may vary depending on environment and equipment.) |
|
|
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) |
|
|
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. |
|
Expansion Slots |
CPU: |
|
|
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) |
|
|
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. |
|
|
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset: |
|
|
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
|
* The PCIEX4 slot shares bandwidth with the M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector. |
|
Storage Interface |
CPU: |
|
|
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
|
|
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) |
|
|
Chipset: |
|
|
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB) |
|
|
– 4 x SATA 6Gb/s connectors (SATA3 4~7) |
|
|
Chipset+ASMedia® ASM1164 chip: |
|
|
– 4 x SATA 6Gb/s connectors (SATA3 0~3) |
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
Chipset+Intel® Thunderbolt™ 5 Controller: |
|
|
– 2 x USB4® USB Type-C® ports on the back panel |
|
|
CPU: |
|
|
– 1 x USB4® USB Type-C® port onboard |
|
|
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header |
|
|
Chipset: |
|
|
– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header |
|
|
– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
|
– 2 x USB 3.2 Gen 1 ports on the back panel |
|
|
Chipset+USB 3.2 Gen 2 Hub: |
|
|
– 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
|
Chipset+USB 3.2 Gen 1 Hub: |
|
|
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers |
|
|
Chipset+USB 2.0 Hub: |
|
|
– 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
|
2 x 8-pin ATX 12V power connectors |
|
|
1 x CPU fan header |
|
|
1 x CPU fan/water cooling pump header |
|
|
4 x system fan headers |
|
|
2 x system fan/water cooling pump headers |
|
|
3 x addressable RGB Gen2 LED strip headers |
|
|
1 x RGB LED strip header |
|
|
4 x M.2 Socket 3 connectors |
|
|
8 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) |
|
|
2 x USB Type-C® headers, with USB 3.2 Gen 2×2 support |
|
|
2 x USB 3.2 Gen 1 headers |
|
|
2 x USB 2.0/1.1 headers |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
|
1 x power button |
|
|
1 x reset button |
|
|
1 x Q-Flash Plus button |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|
|
2 x temperature sensor headers |
|
|
1 x noise detection header |
|

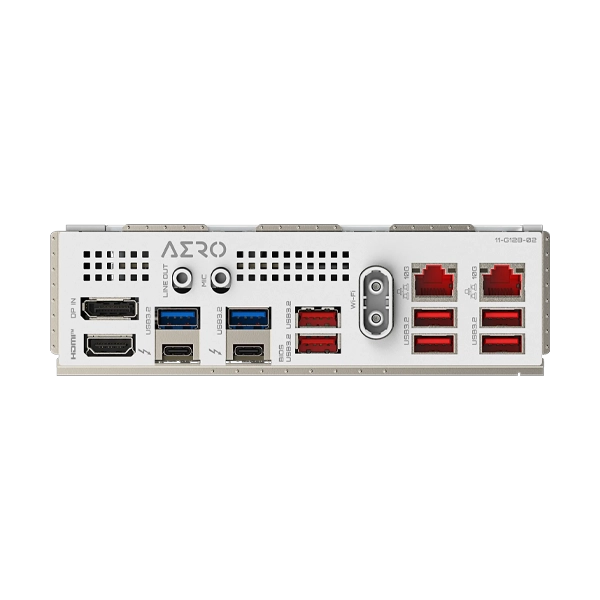

Back Panel Connectors |
1 x DisplayPort In port |
|
|
1 x HDMI port (Note) |
|
|
2 x audio jacks |
|
|
2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports) |
|
|
2 x USB 3.2 Gen 1 ports |
|
|
6 x USB 3.2 Gen 2 Type-A ports (red) |
|
|
2 x antenna connectors (2T2R) |
|
|
2 x RJ-45 ports(Note) Actual support may vary by CPU. |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection |
|
|
Temperature detection |
|
|
Fan speed detection |
|
|
Water cooling flow rate detection |
|
|
Fan fail warning |
|
|
Fan speed control |
|
|
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection |
|
BIOS |
1 x 256 Mbit flash |
|
|
Use of licensed AMI UEFI BIOS |
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features |
Support for GIGABYTE Control Center (GCC) |
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash |
|
|
Support for Q-Flash Plus |
|
|
Support for Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM version) |
|
|
LAN bandwidth management software |
|
Operating System |
Support for Windows 11 64-bit (version 24H2 or later) |
|
Form Factor |
E-ATX Form Factor; 30.5cm x 28.5cm |
|
Warranty |
3 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
