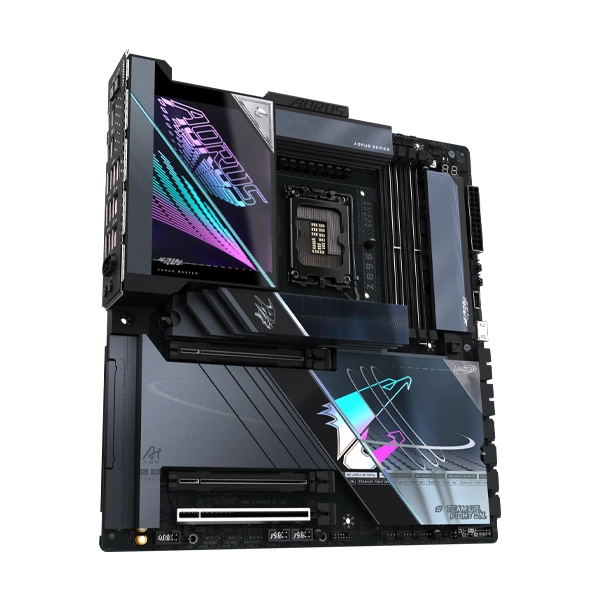

The Gigabyte Z890 AORUS XTREME AI TOP is a premium E-ATX motherboard featuring the Intel Z890 chipset, LGA 1851 socket, DDR5 memory support, PCIe 5.0, and dual Thunderbolt 5 ports engineered for extreme gaming, AI workloads, and professional PC builds.
Training your own AI on your desk.
Supports Intel® Core™ Ultra processors (Series 2).
Digital 20+1+2 phases VRM solution.
Ultimate Scalibility : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots.
Next-gen Connectivity : Dual Thunderbolt™ 4 Type-C with DP-Alt.
Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna.
D5 Bionic Corsa for Infinite Memory Performance.
AORUS AI SNATCH : Auto-Overclocking Software by AI models.
AI Perfdrive : Provides optimal and customized BIOS preset profile for users.
Premium Compatibility : 4*DDR5 with XMP Memory Module Support.
Reinforced Overall Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL.
DDR Wind Blade : Enhanced Active Cooling for Memory Modules.
DTS:X® Ultra Audio : ESS ES9280 and ESS SABRE Hi-Fi 9118 DAC.
M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
|
Brand |
Gigabyte |
|
Model |
Z890-A-MASTER-AI-TOP |
|
Color |
Black |
|
Platform |
INTEL |
|
Socket |
LGA1851 |
|
Cpu Type |
Core Ultra |
|
Chipset |
Z890 |
|
Memory Speed |
up to 9500 |
|
Max Memory Support |
256 GB |
|
Supported Memory Type |
DDR5 |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
Support CUDIMM memory module |
|
Graphics Port |
2 x Thunderbolt 4,1 x HDMI |
|
Expansion Slots |
CPU: |
|
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) |
|
|
Chipset: |
|
|
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
Wireless Networking |
WiFi 7,Bluetooth 5.4 |
|

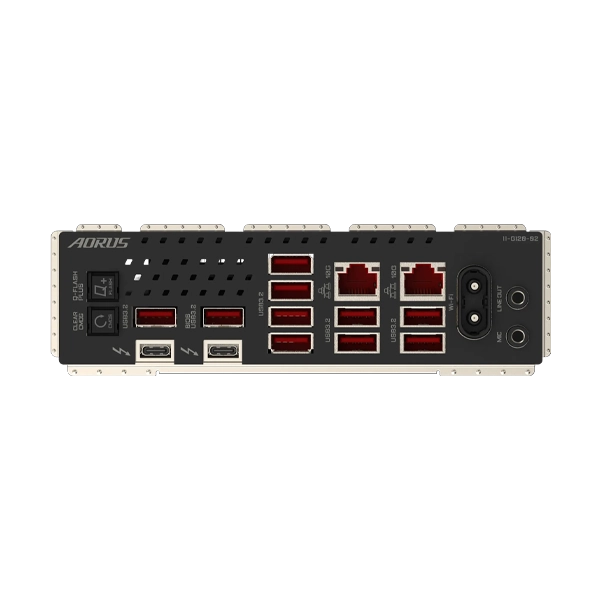

Back Panel I/O Ports |
1 x Q-Flash Plus button |
|
|
1 x Clear CMOS button |
|
|
2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) |
|
|
10 x USB 3.2 Gen 2 Type-A ports (red) |
|
|
2 x RJ-45 ports |
|
|
2 x antenna connectors (2T2R) |
|
|
2 x audio jacks |
|
Internal I/O Connector |
1 x 24-pin ATX main power connector |
|
|
2 x 8-pin ATX 12V power connectors |
|
|
1 x CPU fan header |
|
|
1 x CPU fan/water cooling pump header |
|
|
4 x system fan headers |
|
|
4 x system fan/water cooling pump headers |
|
|
4 x addressable RGB Gen2 LED strip headers |
|
|
1 x RGB LED strip header |
|
|
4 x M.2 Socket 3 connectors |
|
|
4 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
|
|
2 x USB 3.2 Gen 1 headers |
|
|
2 x USB 2.0/1.1 headers |
|
|
1 x noise detection header |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
|
1 x HDMI port (Note) |
|
|
1 x power button |
|
|
1 x reset button |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|
|
2 x temperature sensor headers |
|
|
Voltage Measurement Points |
|
|
(Note) Actual support may vary by CPU. |
|
Form Factor |
E-ATX |
|
Warranty |
3 Years |
|
Note** |
**Prices, Specifications & Features are subject to change without notice. |
