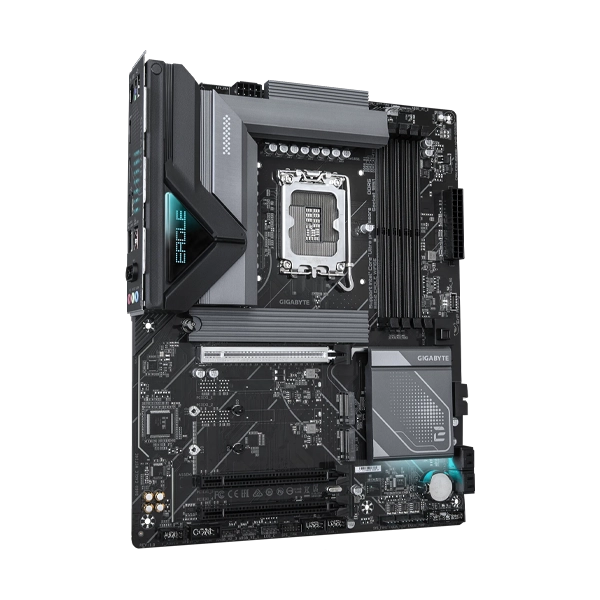

The GIGABYTE B860 Eagle WIFI6E ATX Motherboard is a high-performance platform designed for Intel Core Ultra (Series 2) processors with the LGA 1851 socket. Supporting DDR5 memory up to 9066 MT/s (OC) and featuring three M.2 slots (1x PCIe 5.0, 2x PCIe 4.0), it ensures ultra-fast storage and seamless multitasking. With Wi-Fi 6E, 2.5GbE LAN, and PCIe 5.0 x16 for next-gen graphics, it’s ideal for gamers and professionals. The board includes EZ-Latch for easy installation,
Supports Intel® Core™ Ultra processors (Series 2)
Digital twin 12+1+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5GbE LAN & Wi-Fi 6E
Extended Connectivity : HDMI, DisplayPort
|
Brand |
Gigabyte |
|
Model |
B860 EAGLE WIFI6E |
|
Color |
Black |
|
Platform |
INTEL |
|
Socket |
LGA1851 |
|
Cpu Type |
Core Ultra |
|
Chipset |
B860 |
|
Memory Speed |
up to 9066 |
|
Max Memory Support |
256 GB |
|
Supported Memory Type |
DDR5 |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
|
Graphics Port |
1 x HDMI Port,1 x DisplayPort |
|
Expansion Slots |
CPU: |
|
|
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
Chipset: |
|
|
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4) |
|
Wireless Networking |
WiFi 6E,Bluetooth 5.3 |
|

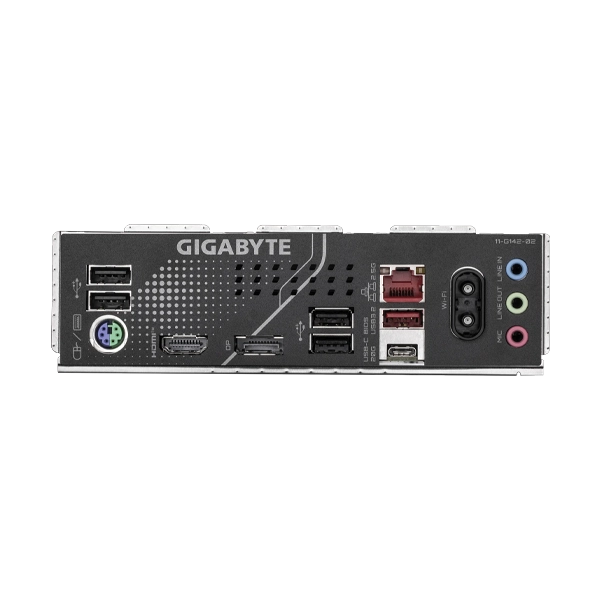

Back Panel I/O Ports |
1 x PS/2 keyboard/mouse port |
|
|
1 x HDMI port (Note) |
|
|
1 x DisplayPort (Note) |
|
|
1 x USB Type-C port, with USB 3.2 Gen 2x2 support |
|
|
1 x USB 3.2 Gen 2 Type-A port (red) |
|
|
4 x USB 2.0/1.1 ports |
|
|
2 x antenna connectors (2T2R) |
|
|
1 x RJ-45 port |
|
|
3 x audio jacks |
|
|
(Note) Actual support may vary by CPU. |
|
Internal I/O Connector |
1 x 24-pin ATX main power connector |
|
|
1 x 8-pin ATX 12V power connector |
|
|
1 x CPU fan header |
|
|
1 x CPU fan/water cooling pump header |
|
|
2 x system fan headers |
|
|
2 x system fan/water cooling pump headers |
|
|
3 x addressable RGB Gen2 LED strip headers |
|
|
1 x RGB LED strip header |
|
|
3 x M.2 Socket 3 connectors |
|
|
4 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x S/PDIF Out header |
|
|
1 x USB Type-C header, with USB 3.2 Gen 1 support |
|
|
1 x USB 3.2 Gen 1 header |
|
|
2 x USB 2.0/1.1 headers |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
|
1 x serial port header |
|
|
1 x Q-Flash Plus button |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|
Form Factor |
ATX |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
