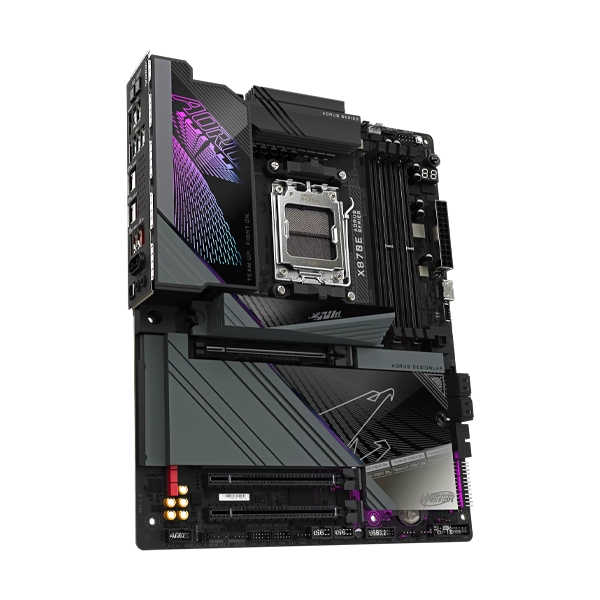

The Gigabyte X870E AORUS MASTER DDR5 Motherboard, Shop now for this high-performance AM5 ATX motherboard with PCIe 5.0, Wi-Fi 7, and advanced cooling. Perfect for gaming and professional builds.
Gigabyte DDR5 OC up to 8600MT/s.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
Digital twin 16+2+2 phases VRM solution.
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support.
DDR Wind Blade : Enhanced Active Cooling for Memory Modules.
M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW..
New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
Ultra-Fast Storage : 4*M.2 slots, including 3* PCIe 5.0 x4.
Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL.
Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
Extended Connectivity : Dual USB4 Type-C with DP-Alt, HDMI.
Reliable Audio : Realtek ALC1220 HD Audio & WIMA Audiophile Grade Capacitors.
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability..
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.
|
Brand+A1:A1:B35 |
Gigabyte |
|
Model |
X870E AORUS MASTER |
|
Colour |
Black |
|
Chipset |
AMD X870E |
|
CPU Socket |
AM5 |
|

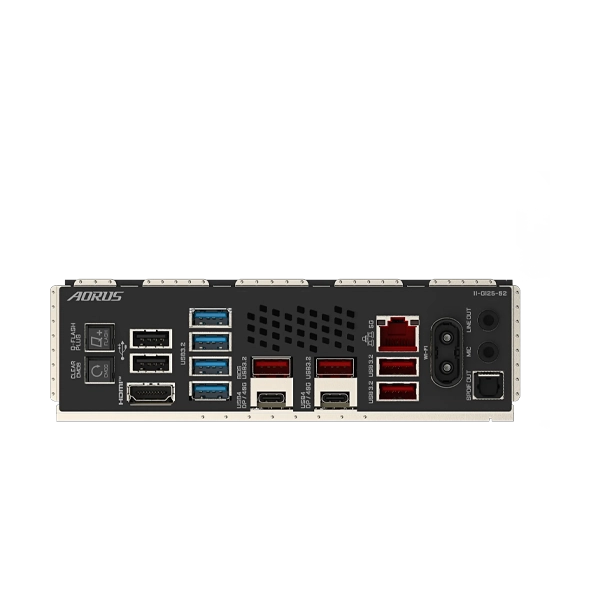

Back Panel I/O |
|
|
USB |
2x USB-A (USB 2.0) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 3.1/3.2 Gen 2) 2x USB-C (USB4) |
|
Thunderbolt |
No |
|
Display |
1x HDMI |
|
Audio |
2x 1/8" / 3.5 mm 1x S/PDIF |
|
Ethernet / Controller |
1x Realtek 5GbE |
|
Wi-Fi Antenna |
2x Connector |
|
Buttons |
BIOS Flashback, Clear CMOS |
|
Memory |
|
|
Memory Slots |
4x 288-Pin |
|
Memory Support |
DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000, 8200, 8400, 8600 MT/s |
|
Maximum Capacity |
256 GB |
|
Channel Architecture |
Dual Channel |
|
ECC Support |
Non-ECC, ECC Unbuffered |
|
Storage Expansion |
|
|
SATA |
4x SATA III |
|
Storage Slots |
1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4) 2x M.2 (M Key) 2280, 22110 (PCIe 5.0 x4) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2) |
|
Optane Memory Support |
No |
|
RAID Support |
RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA) |
|
Internal I/O |
|
|
Expansion Slots |
1x PCIe 5.0 x16 1x PCIe 4.0 x16 (x4 mode) 1x PCIe 3.0 x16 (x4 mode) |
|
USB |
2x USB 2.0 Header (Supports 4 USB-A Port) 2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port) 1x USB 3.2 Gen 2x2 Header (Supports 1 USB-C Port) |
|
Air Cooling |
1x 4-Pin CPU 4x 4-Pin System |
|
Liquid Cooling |
3x 4-Pin Pump |
|
Power Connectors |
1x 24-Pin Mainboard 2x 8-Pin ATX |
|
Security |
TPM Header |
|
LED Header |
5x RGB |
|
Diagnostics |
Clear CMOS, Flash BIOS |
|
BIOS |
|
|
ROM |
256 Mb |
|
Front Panel I/O |
|
|
Front Panel I/O |
AAFP |
|
Audio |
|
|
Audio Codec |
Realtek ALC1220 (7.1-Channel) |
|
DAC |
No |
|
Wireless |
|
|
Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) |
|
Bluetooth |
5.3 |
|
Software |
|
|
OS Compatibility |
Windows 11 (64-Bit Only) |
|
Physical |
|
|
Form Factor |
ATX |
|
Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm |
|
Packaging Info |
|
|
Package Weight |
5.69 lb |
|
Box Dimensions (LxWxH) |
14.1 x 11.7 x 3.3" |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
