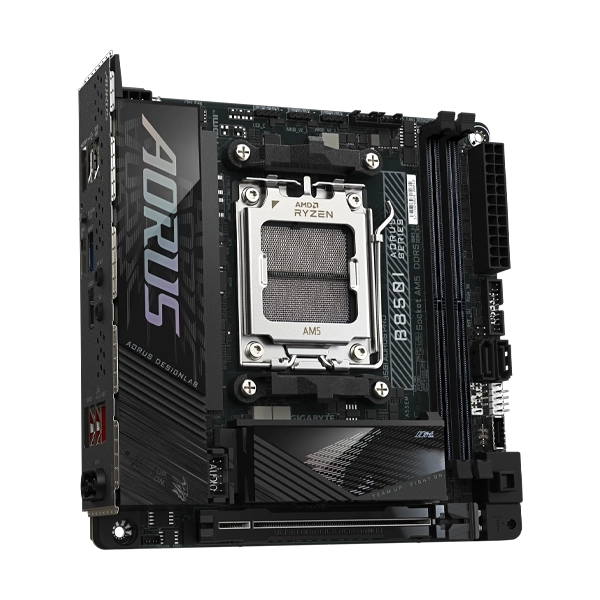

The Gigabyte B850I Aorus Pro DDR5 Motherboard is a premium mini-ITX motherboard designed for compact, high-performance PC builds using AMD Ryzen processors with the AM5 socket. It supports the latest DDR5 memory for ultra-fast data speeds,
X3D Turbo Mode: Unleash new era gaming performance.
DDR5 OC up to 8400MT/s.
AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
Digital twin 8+2+1 phases VRM solution.
Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click: M.2 heatsinks with screwless design.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: 1*M.2 slots, including PCIe 5.0 x4.
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
Extended Connectivity: HDMI.
PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect.
|
Brand |
Gigabyte |
|
Model |
B850I AORUS PRO |
|
Color |
Black |
|
CPU |
AMD Socket AM5, support for: |
|
|
AMD Ryzen™ 9000 Series Processors |
|
|
AMD Ryzen™ 8000 Series Processors |
|
|
AMD Ryzen™ 7000 Series Processors |
|
|
|
|
|
(Go to GIGABYTE's website for the latest CPU support list.) |
|
Chipset |
AMD B850 |
|
Memory |
Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
|
|
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
|
|
Dual channel memory architecture |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
|
|
|
|
(CPU and memory configuration may affect supported memory types, data rate (speed), and number of DRAM modules. Refer to the "Memory Support List" on GIGABYTE's website for more info.) |
|
Onboard Graphics |
Integrated Graphics Processor with AMD Radeon™ Graphics support: |
|
|
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
|
Support for HDMI 2.1 version and HDCP 2.3, and HDR |
|
|
Support for native HDMI 2.1 TMDS compatible ports |
|
|
|
|
|
(Graphics specifications may vary depending on CPU support.) |
|
Audio |
Realtek® ALC4080 CODEC, High Definition Audio, 2-channel |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
Realtek® Wi-Fi 7 RTL8922AE: |
|
|
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
|
|
Bluetooth 5.4 |
|
|
Support for 11be 160MHz wireless standard |
|
|
|
|
|
(Actual data rate may vary depending on environment and equipment.) Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (No support driver for Windows 10). Wi-Fi 7 channels on 6 GHz band depend on country regulations. |
|
Expansion Slots |
1 x PCI Express x16 slot, integrated in the CPU: |
|
|
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
|
|
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
|
|
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
|
|
|
|
|
(The PCIEX16 slot can only support a graphics card or an NVMe SSD.) |
|
Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: |
|
|
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
|
|
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
|
|
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
|
|
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs |
|
|
2 x SATA 6Gb/s connectors |
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 is only available on AMD Ryzen™ 9000 Series Processors) |
|
|
RAID 0 and RAID 1 support for SATA storage devices |
|
USB |
CPU: |
|
|
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
|
|
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
|
Chipset: |
|
|
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
|
|
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
|
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
|
1 x 8-pin ATX 12V power connector |
|
|
1 x CPU fan header |
|
|
1 x CPU fan/water cooling pump header |
|
|
1 x system fan header |
|
|
2 x addressable RGB Gen2 LED strip headers |
|
|
1 x RGB LED strip header |
|
|
2 x M.2 Socket 3 connectors |
|
|
2 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x speaker header |
|
|
1 x front panel audio header (routed from the adapter card on the rear panel) |
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
|
|
1 x USB 3.2 Gen 1 header |
|
|
1 x USB 2.0/1.1 header |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|
|
1 x chassis intrusion header |
|

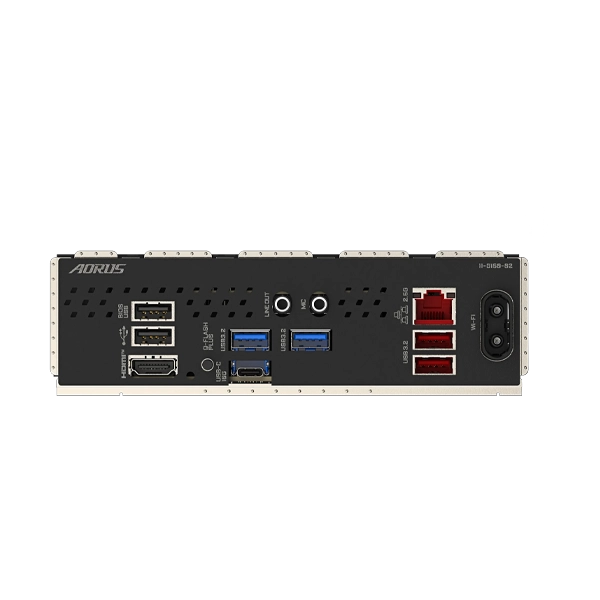

Back Panel Connectors |
1 x Q-Flash Plus button |
|
|
1 x HDMI port |
|
|
2 x antenna connectors (2T2R) |
|
|
1 x USB Type-C® port, with USB 3.2 Gen 2 support |
|
|
2 x USB 3.2 Gen 2 Type-A ports (red) |
|
|
2 x USB 3.2 Gen 1 ports |
|
|
2 x USB 2.0/1.1 ports |
|
|
1 x RJ-45 port |
|
|
2 x audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (Depends on fan) |
|
BIOS |
1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features |
Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM version), LAN bandwidth management software |
|
Operating System |
Support for Windows 11 64-bit |
|
Form Factor |
Mini-ITX Form Factor; 17.0cm x 17.0cm |
|
Warranty |
3 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
