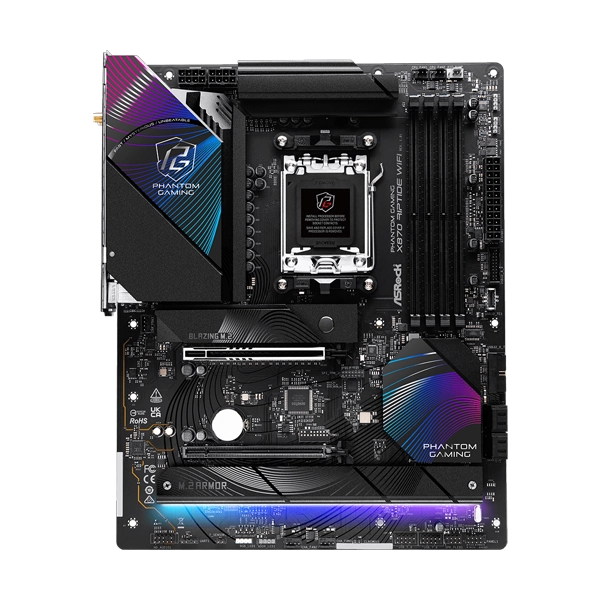

The ASRock Phantom Gaming X870 Riptide WiFi DDR5 is a high-performance ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 series CPUs. It supports DDR5 memory, PCIe 5.0, USB4, and advanced Wi-Fi 7 connectivity. Designed for gamers and creators, it delivers speed, stability, and cutting-edge features.
Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors..
14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC.
4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC).
1 PCIe 5.0 x16, 1 PCIe 4.0 x16.
Graphics Output Options: 2 USB4 Type-C, 1 HDMI.
Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio.
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
4 SATA3.
2 USB4 Type-C (Rear),
1 USB 3.2 Gen2x2 Type-C (Front),
2 USB 3.2 Gen2 Type-A (Rear),
7 USB 3.2 Gen1 (3 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front).
Killer 2.5G LAN.
802.11be Wi-Fi 7 + Bluetooth.
Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink.
|
Brand |
ASRock |
|
Color |
Black |
|
Model |
X870 RIPTIDE WIFI |
|
Unique Feature |
|
|
Superb Productivity |
PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, USB4 Type-C Ports (40 Gb/s) |
|
Rock-Solid Durability |
14+2+1 Power Phase, |
|
Ultrafast Gaming |
Killer 2.5G LAN, 802.11be Wi-Fi 7 Module, ASRock Lightning Gaming Ports |
|
EZ Update |
BIOS Flashback Button, ASRock Auto Driver Installer |
|
EZ Troubleshooter |
ASRock Post Status Checker |
|
CPU |
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
|
Chipset |
AMD X870 |
|
Memory |
Dual Channel DDR5 Memory Technology, |
|
BIOS |
256Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics |
Integrated AMD RDNA™ graphics (Actual support may vary by CPU), |
|
Audio |
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Individual PCB Layers for R/L Audio Channel, Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets), Nahimic Audio |
|
LAN |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Killer E3100G, Supports Killer LAN Software |
|
Wireless LAN |
802.11be 2×2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz frequency band, Supports 160MHz channel bandwidth with 6GHz frequency band, 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.4, Supports MU-MIMO |
|
PCIe Slots |
CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, Chipset: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, Supports AMD CrossFire™, 15μ Gold Contact in VGA PCIe Slot |
|
Storage |
CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
USB Ports |
CPU: 2 x USB4 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-A (Rear), Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front), 1 x USB 3.2 Gen2 Type-A (Rear), 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front), 8 x USB 2.0 (4 Rear, 4 Front) |
|
Connectors |
Multiple connectors including Thermistor Cable Header, Power LED and Speaker Header, RGB LED Header, Addressable LED Headers, Fan Connectors, Power Connectors, Front Panel Audio Connector, USB Headers |
|
Rear Panel I/O |

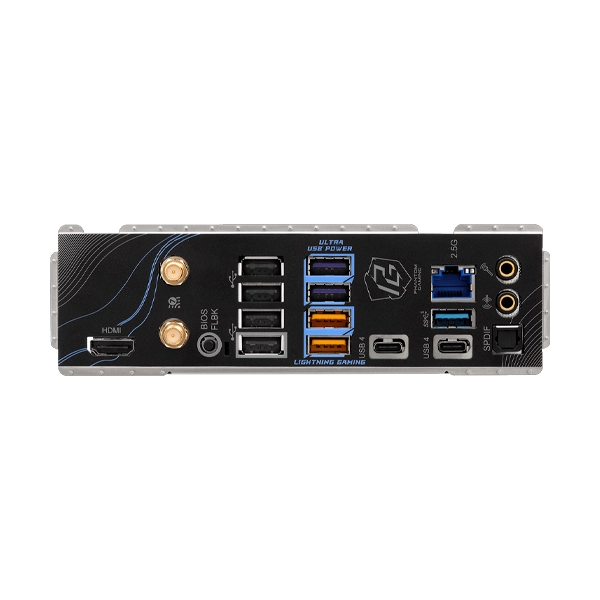

2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports (40 Gb/s), 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 3.2 Gen2 Type-A Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, Audio Jacks |
|
Software |
ASRock Motherboard Utility (Phantom Gaming Tuning), Killer Control Center, ASRock Polychrome SYNC |
|
UEFI |
ASRock EZ Mode, |
|
Accessories |
2 x SATA Data Cables, |
|
Form Factor |
ATX Form Factor: 12.0-in x 9.6-in (30.5 cm x 24.4 cm), 8 Layer PCB |
|
Operating System |
Microsoft Windows® 10 64-bit / 11 64-bit |
|
Certifications |
FCC, CE, ErP/EuP ready |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
