The Gigabyte B850 AORUS Elite WiFi7 Motherboard, Featuring AMD Ryzen 9000/8000/7000 support, DDR5 up to 8200MT/s, PCIe 5.0, WiFi 7, and a 5-year warranty for top-tier gaming performance.
X3D Turbo Mode : Unleash new era gaming performance.
DDR5 OC up to 8200MT/s.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
Digital twin 14+2+2 phases VRM solution.
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation,
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
Extended Connectivity : HDMI,Displayport.
PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect.
|
Brand |
Gigabyte |
|
Model |
B850 AORUS ELITE WIFI7 |
|
Colour |
Black |
|
CPU |
AMD Socket AM5, supports Ryzen™ 9000/8000/7000 Series Processors |
|
Chipset |
AMD B850 |
|
Memory |
DDR5 8200(O.C) to 4800 MT/s, 4x DIMM, max 256GB, dual-channel, AMD EXPO & XMP support |
|
Onboard Graphics |
AMD Radeon™ Graphics (varies by CPU) |
|
Display Outputs |
1x DisplayPort (3840x2160@144Hz), 1x Front HDMI (1920x1080@30Hz) |
|
Audio |
Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
|
LAN |
Realtek® 2.5GbE LAN chip |
|
Wireless |
Realtek® Wi-Fi 7 (RTL8922AE), Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be |
|
PCIe Slots |
1x PCIe 5.0 x16 (for Ryzen 9000/7000), 2x PCIe 3.0 x1 |
|
Storage |
3x M.2 (PCIe 5.0/4.0, varies by CPU), 4x SATA 6Gb/s, RAID 0/1/5/10 (varies by CPU) |
|
USB Ports |
1x USB-C 3.2 Gen 2, 2x USB 3.2 Gen 2 Type-A, multiple USB 3.2 Gen 1 and USB 2.0 ports |
|
Internal Connectors |
3x M.2, 4x SATA, 3x RGB headers, multiple fan headers, TPM header |
|

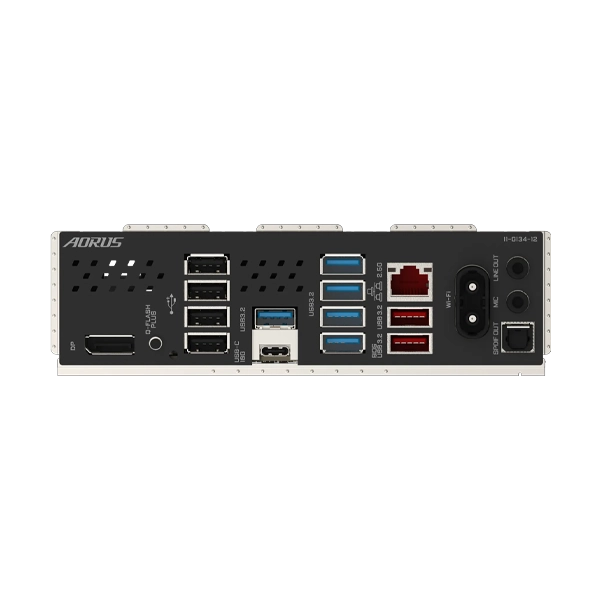

Back Panel |
1x DisplayPort, 1x USB-C 3.2 Gen 2, 5x USB 3.2 Gen 1, 2x USB 3.2 Gen 2 Type-A, RJ-45, audio jacks, optical S/PDIF, antenna connectors |
|
BIOS |
256 Mbit flash, AMI UEFI BIOS |
|
Unique Features |
GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM), LAN management software |
|
OS Support |
Windows 11 64-bit |
|
Form Factor |
ATX (30.5cm x 24.4cm) |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
