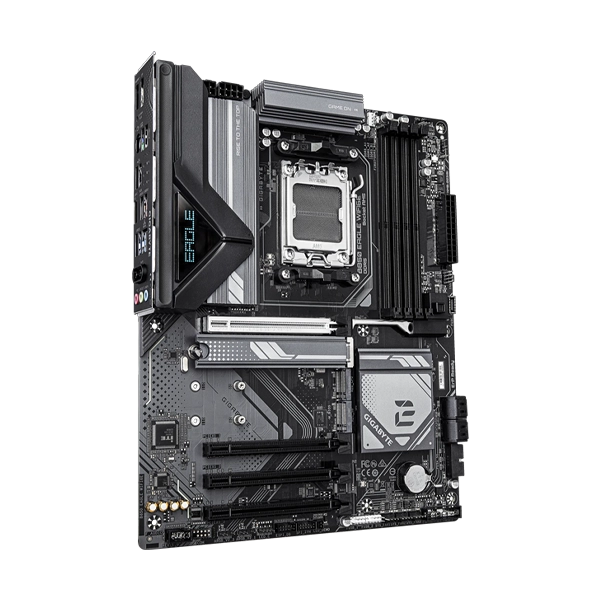

The Gigabyte B850 Eagle WiFi6E Motherboard , Shop now for this high-performance AM5 ATX motherboard with DDR5 support, PCIe 5.0, WiFi 6E, and advanced cooling. Ideal for gaming and professional builds.
X3D Turbo Mode : Unleash new era gaming performance.
DDR5 OC up to 8200MT/s.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
Digital twin 8+2+2 phases VRM solution.
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW..
Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard.
Fast Networking : GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna.
Extended Connectivity : HDMI, Displayport.
PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect.
|
Brand |
Gigabyte |
|
Model |
B850 EAGLE WIFI6E |
|
Colour |
Black |
|
CPU Socket |
AMD Socket AM5 |
|
Supported Processors |
AMD Ryzen™ 9000 / 8000 / 7000 Series |
|
Chipset |
AMD B850 |
|
Memory Support |
DDR5 up to 8200(O.C) MT/s, 4 DIMM slots, 256GB max, Dual channel, AMD EXPO™ & XMP support |
|
Onboard Graphics |
AMD Radeon™ Graphics (depends on CPU) |
|
Display Outputs |
1 x DisplayPort (3840x2160@144Hz, DP 1.4, HDR) 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) |
|
Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
|
LAN |
Realtek® GbE LAN (1 Gbps) |
|
Wireless |
Intel® Wi-Fi 6E AX210 / Realtek® Wi-Fi 6E RTL8852CE (Bluetooth 5.3, 11ax 160MHz support) |
|
Expansion Slots |
1 x PCIe 5.0 x16 (Ryzen 9000/7000) 3 x PCIe 3.0 x1 (chipset) |
|
Storage |
3 x M.2 Slots (PCIe 5.0/4.0 depending on CPU) 4 x SATA 6Gb/s, RAID 0/1/5/10 support |
|
USB Ports |
Back Panel: 1 x USB-C 3.2 Gen 1, 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0 Internal: 1 x USB-C 3.2 Gen 1, 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
|
Internal Connectors |
24-pin ATX, 8-pin & 4-pin ATX 12V, 3 x M.2, 4 x SATA, RGB headers, fan headers, TPM header, Clear CMOS |
|

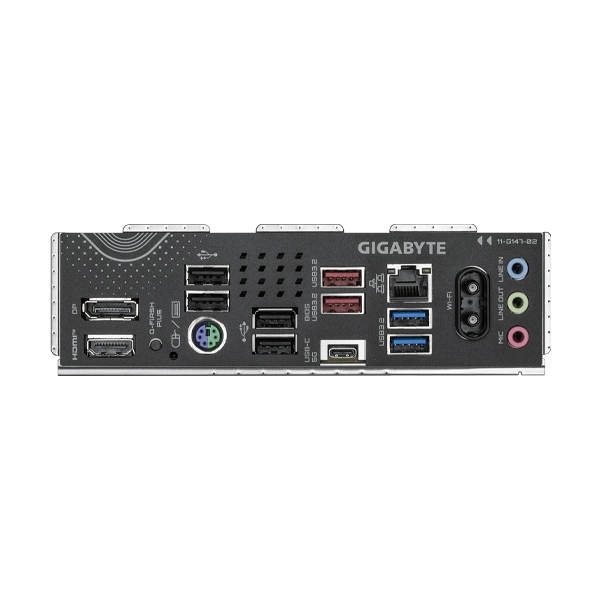

Back Panel Ports |
1 x DP, 1 x HDMI, 4 x USB 2.0, 2 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 1, 1 x RJ-45, 2 x USB 3.2 Gen 1, 2 x antenna connectors, 3 x audio jacks |
|
BIOS |
256 Mbit flash, AMI UEFI BIOS |
|
Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM), LAN bandwidth management software |
|
Operating System |
Windows 11 64-bit, Windows 10 64-bit |
|
Form Factor |
ATX (30.5cm x 24.4cm) |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
