The Gigabyte B850M Aorus Elite WiFi6E Ice DDR5 Motherboard is a high-performance micro ATX motherboard built for next-gen Intel processors, featuring support for DDR5 memory, PCIe 5.0, dual M.2 slots, Wi-Fi 6E
X3D Turbo Mode: Unleash new era gaming performance.
DDR5 OC up to 8200MT/s.
AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
Digital twin 12+2+2 phases VRM solution.
Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click: M.2 heatsinks with screwless design.
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage: 2*M.2 slots, including PCIe 5.0 x4.
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking: 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna.
Extended Connectivity: HDMI,Displayport.
PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect.
|
Brand |
Gigabyte |
|
Model |
B850M A ELT WiFi6E ICE |
|
Color |
White |
|
Platform |
AMD |
|
Socket |
AM5 |
|
Cpu Type |
Ryzen 9000,Ryzen 8000,Ryzen 7000 |
|
Chipset |
B850 |
|
Memory Speed |
up to 8200 |
|
Max Memory Support |
256 GB |
|
Supported Memory Type |
DDR5 |
|
Channel Supported |
Dual Channel |
|
Memory Feature |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
|
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
|
Graphics Port |
1 x DisplayPort,1 x Front HDMI Port |
|
Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
|
|
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
|
|
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
|
|
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
|
|
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
Chipset: |
|
|
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
Wireless Networking |
WiFi 6E,Bluetooth 5.3 |
|

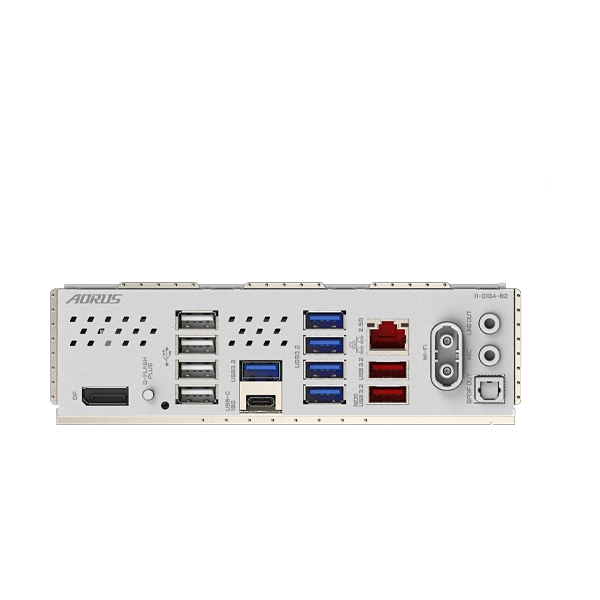

Back Panel I/O Ports |
1 x DisplayPort (Note) |
|
|
1 x Q-Flash Plus button |
|
|
4 x USB 2.0/1.1 ports |
|
|
5 x USB 3.2 Gen 1 ports |
|
|
2 x USB 3.2 Gen 2 Type-A ports (red) |
|
|
1 x USB Type-C® port, with USB 3.2 Gen 2 support |
|
|
1 x RJ-45 port |
|
|
2 x antenna connectors (2T2R) |
|
|
2 x audio jacks |
|
|
1 x optical S/PDIF Out connector |
|
|
(Note) Actual support may vary by CPU. |
|
Internal I/O Connector |
1 x 24-pin ATX main power connector |
|
|
1 x 8-pin ATX 12V power connector |
|
|
1 x CPU fan header |
|
|
1 x CPU fan/water cooling pump header |
|
|
3 x system fan headers |
|
|
1 x system fan/water cooling pump header |
|
|
3 x addressable RGB Gen2 LED strip headers |
|
|
1 x RGB LED strip header |
|
|
2 x M.2 Socket 3 connectors |
|
|
4 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
|
|
1 x USB 3.2 Gen 1 header |
|
|
2 x USB 2.0/1.1 headers |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
|
1 x HDMI port (Note) |
|
|
1 x reset button |
|
|
1 x reset jumper |
|
|
1 x Clear CMOS jumper |
|
|
(Note) Actual support may vary by CPU. |
|
Form Factor |
Micro-ATX |
|
Warranty: |
3 Years |
|
Note: |
**Features, Price, Specifications are subject to change without notice. Images used for representation purposes only. |
