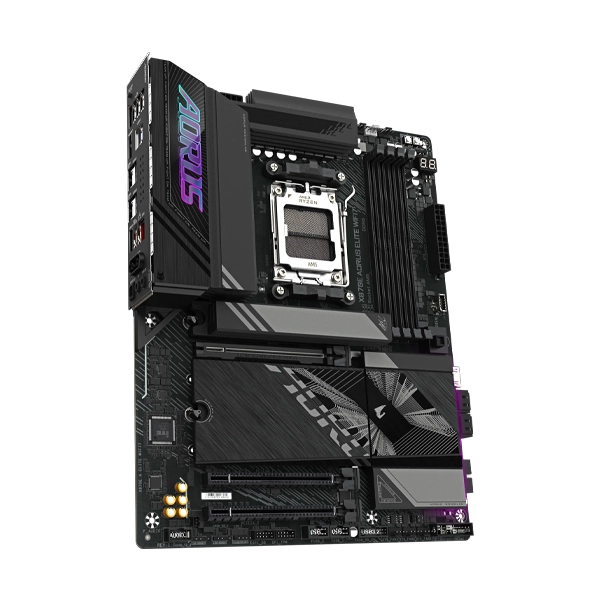

The Gigabyte X870E AORUS Elite WiFi7 DDR5 Motherboard. Featuring AMD AM5 socket, PCIe 5.0, Wi-Fi 7, and advanced cooling, this ATX motherboard is perfect for high-performance gaming and professional PC builds.
Gigabyte AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
Digital twin 16+2+2 phases VRM solution.
Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support.
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click:M.2 heatsinks with screwless design.
Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup.
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4.
Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L.
Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna.
Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI.
Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors.
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card.
|
Brand |
Gigabyte |
|
Model |
X870E AORUS ELITE WIFI7 |
|
Colour |
Black |
|
CPU Socket Type |
AM5 |
|
CPU Type |
Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
|
Chipsets |
|
|
Chipset |
AMD X870E |
|
Memory |
|
|
Number of Memory Slots |
4x288pin (DDR5) |
|
Memory Standard |
DDR5 5200 |
|
Maximum Memory Supported |
256GB |
|
Channel Supported |
Dual Channel |
|
ECC Supported |
Non-ECC |
|
Buffer Supported |
Un-buffered |
|
Memory Feature |
Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
|
Expansion Slots |
|
|
PCI Express 5.0 x16 |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) |
|
PCI Express x4 |
Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
|
Storage Devices |
|
|
SATA 6Gb/s |
4 x SATA 6Gb/s |
|
M.2 |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used.1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
|
SATA RAID |
0/1/10 |
|
Onboard Audio |
|
|
Audio Chipset |
Realtek ALC1220 |
|
Audio Channels |
7.1 Channels |
|
Onboard LAN |
|
|
Max LAN Speed |
2.5Gbps |
|
Wireless LAN |
Wi-Fi 802.11 be |
|
Bluetooth |
BLUETOOTH 5.4 |
|
Rear Panel Ports |
|
|
Back I/O Ports |

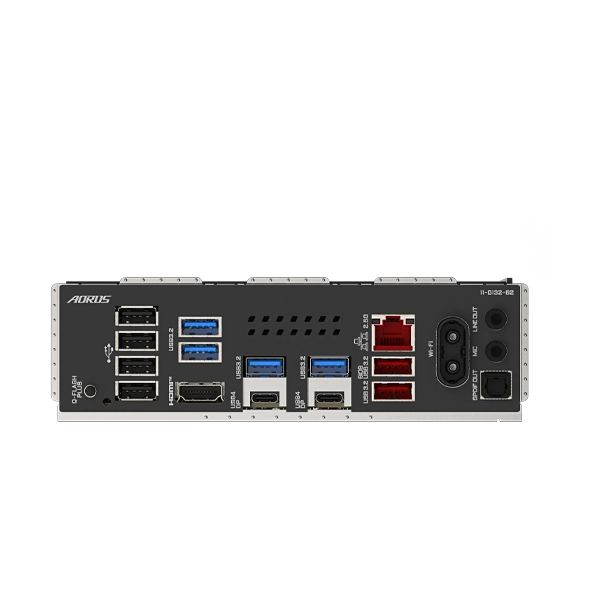

1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port 2 x USB4 USB Type-C ports (DisplayPort) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x SMA antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
|
Internal I/O Connectors |
|
|
Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
|
Other Connectors |
1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|
Physical Spec |
|
|
Form Factor |
ATX |
|
Dimensions (W x L) |
12.0" x 9.6" |
|
Power Pin |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
|
Software Feature |
|
|
BIOS Feature |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Software |
Norton Internet Security (OEM version) LAN bandwidth management software |
|
Windows 11 |
Supported |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
