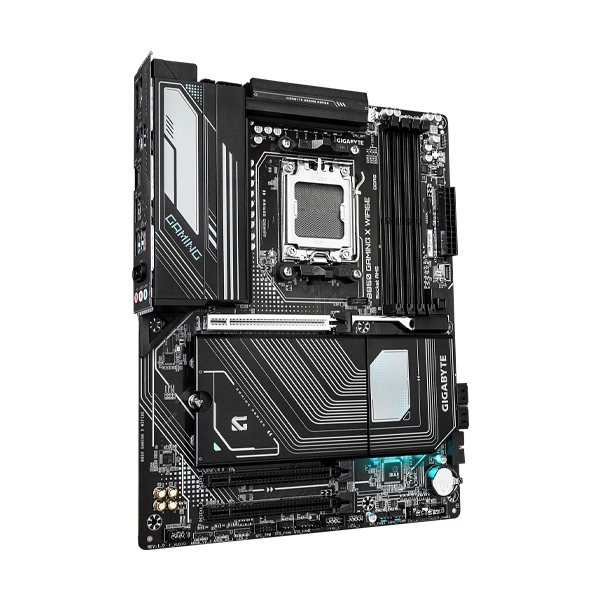

The Gigabyte B850 Gaming X WiFi6E Motherboard, Featuring AMD AM5 support, DDR5, PCIe 5.0, WiFi 6E, and EZ-Latch for seamless gaming performance.
X3D Turbo Mode : Unleash new era gaming performance.
DDR5 OC up to 8200MT/s.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
Digital twin 12+2+2 phases VRM solution.
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0x4 slot.
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
Extended Connectivity : HDMI, Displayport
|
Brand |
Gigabyte |
|
Model |
B850 GAMING X WIFI6E |
|
Colour |
Black |
|
Chipset |
AMD B850 |
|
CPU Socket |
AM5 |
|
Memory Slots |
4x 288-Pin |
|
Memory Support |
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s |
|
Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
|
Expansion Slots |
1x PCIe 5.0 x16 2x PCIe 3.0 x1 |
|
Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support |
|
Form Factor |
ATX |
|
CPU |
|
|
Chipset |
AMD B850 |
|
CPU Socket |
AM5 |
|

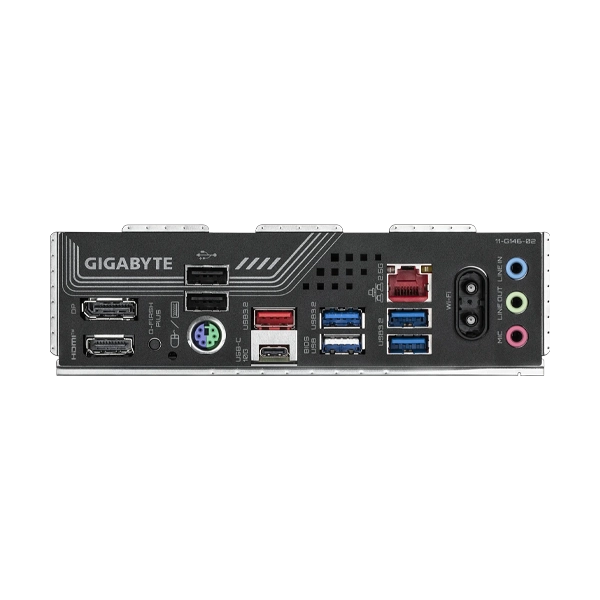

Back Panel I/O |
|
|
USB |
1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 3x USB-A (USB 2.0) |
|
Thunderbolt |
No |
|
Display |
1x DisplayPort Output 1x HDMI Output |
|
Audio |
3x 1/8" / 3.5 mm |
|
Ethernet / Controller |
1x Gigabit |
|
PS/2 |
1x Combo |
|
Wi-Fi Antenna |
1x Connector |
|
Buttons |
BIOS Flashback |
|
Memory |
|
|
Memory Slots |
4x 288-Pin |
|
Memory Support |
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s |
|
Maximum Capacity |
256 GB |
|
Channel Architecture |
Dual Channel |
|
ECC Support |
Non-ECC Unbuffered |
|
Storage Expansion |
|
|
SATA |
4x SATA III |
|
Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
|
RAID Support |
RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA) |
|
Internal I/O |
|
|
Expansion Slots |
1x PCIe 5.0 x16 2x PCIe 3.0 x1 |
|
USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 4 USB-A Port) |
|
Air Cooling |
1x 4-Pin CPU 3x 4-Pin System |
|
Liquid Cooling |
1x 4-Pin Pump |
|
Power Connectors |
1x 24-Pin Mainboard 1x 8-Pin CPU 1x 4-Pin CPU |
|
Security |
TPM Header |
|
LED Header |
4x RGB |
|
Diagnostics |
Clear CMOS, Power, Reset |
|
BIOS |
|
|
ROM |
256 Mb |
|
Audio |
|
|
Audio Codec |
Realtek (7.1-Channel) |
|
DAC |
No |
|
Wireless |
|
|
Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support |
|
Bluetooth |
5.3 |
|
Software |
|
|
OS Compatibility |
Windows 10 to 11 (64-Bit Only) |
|
Physical |
|
|
Form Factor |
ATX |
|
Dimensions |
12.0 x 9.6" / 30.5 x 24.4 cm |
|
Warranty |
3 Years |
|
Note |
*Features, Price and Specifications are subject to change without notice. |
