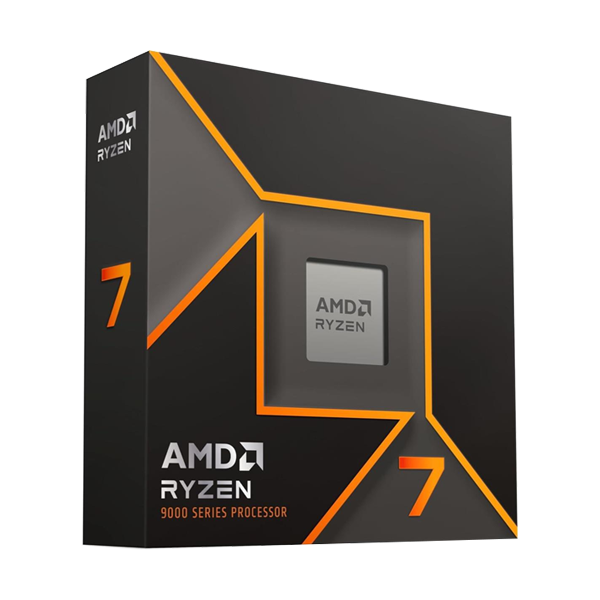

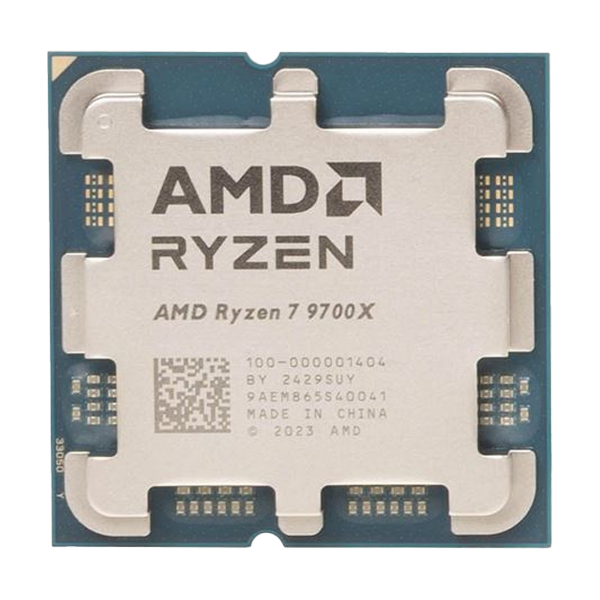

Experience exceptional desktop performance with the AMD Ryzen 7 9700X, featuring 8 cores, 16 threads, and up to 5.5 GHz boost clock speed for seamless multitasking and demanding applications. Built on cutting-edge Zen 5 architecture and 4nm FinFET technology, this processor delivers impressive speed, efficiency, and overclocking capabilities. Enjoy top-tier gaming, content creation, and professional performance with robust connectivity and expansion options.
Powerful Performance
The AMD Ryzen™ 7 9700X, part of the Ryzen 9000 Series, is crafted for enthusiast desktops, delivering impressive computing power. Featuring 8 cores and 16 threads, it ensures efficient multitasking and performance. With a base clock of 3.8 GHz and a max boost clock up to 5.5 GHz, it provides the speed needed for both gaming and productivity tasks.
Advanced Architecture and Overclocking
Built on the Zen 5 architecture and utilizing TSMC’s 4nm FinFET technology, the Ryzen 7 9700X excels in efficiency and performance. It supports advanced features such as Precision Boost Overdrive, Curve Optimizer Voltage Offsets, and AMD EXPO™ Memory Overclocking Technology. The processor is unlocked for overclocking, enabling users to fine-tune their systems for maximum performance.
Robust Connectivity and Expansion
The Ryzen 7 9700X is equipped with PCIe® 5.0 and 28 native PCIe lanes (24 usable), providing excellent connectivity for high-speed peripherals and storage solutions. It supports multiple chipsets, including X670E, X670, and B650, ensuring compatibility with a range of motherboards. The processor also includes native USB 3.2 Gen 2 and USB 2.0 ports, offering versatile connectivity options for various devices.
Enhanced Graphics and Memory Support
Featuring integrated AMD Radeon™ Graphics with 2 graphics cores running at 2200 MHz, the Ryzen 7 9700X handles basic graphical tasks efficiently. It supports up to 192 GB of DDR5 RAM across two memory channels, with speeds up to DDR5-5600 for 2x1R and 2x2R configurations, and up to DDR5-3600 for 4x1R and 4x2R configurations. The processor also includes ECC support (with compatible motherboards) for enhanced reliability in critical applications, making it a versatile choice for various user needs.
|
Brand |
AMD |
|
Model |
100-100001404WOF |
|
General Specifications |
|
|
Name |
AMD Ryzen™ 7 9700X |
|
Family |
Ryzen |
|
Series |
Ryzen 9000 Series |
|
Form Factor |
Desktops, Boxed Processor |
|
Market Segment |
Enthusiast Desktop |
|
AMD PRO Technologies |
No |
|
Consumer Use |
Yes |
|
Regional Availability |
Global |
|
Former Codename |
Granite Ridge AM5 |
|
Architecture |
Zen 5 |
|
# of CPU Cores |
8 |
|
Multithreading (SMT) |
Yes |
|
# of Threads |
16 |
|
Max. Boost Clock |
Up to 5.5 GHz |
|
Base Clock |
3.8 GHz |
|
L1 Cache |
640 KB |
|
L2 Cache |
8 MB |
|
L3 Cache |
32 MB |
|
Default TDP |
65W |
|
Processor Technology for CPU Cores |
TSMC 4nm FinFET |
|
Processor Technology for I/O Die |
TSMC 6nm FinFET |
|
Package Die Count |
2 |
|
Unlocked for Overclocking |
Yes |
|
AMD EXPO™ Memory Overclocking Technology |
Yes |
|
Precision Boost Overdrive |
Yes |
|
Curve Optimizer Voltage Offsets |
Yes |
|
AMD Ryzen™ Master Support |
Yes |
|
CPU Socket |
AM5 |
|
Supporting Chipsets |
A620, X670E, X670, B650E, B650, X870E, X870 |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
|
Thermal Solution (PIB) |
Not Included |
|
Recommended Cooler |
Premium air cooler recommended for optimal performance |
|
Max. Operating Temperature (Tjmax) |
95°C |
|
OS Support |
Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
|
Connectivity |
|
|
Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
|
Native USB 2.0 (480Mbps) Ports |
1 |
|
PCI Express® Version |
PCIe® 5.0 |
|
Native PCIe® Lanes (Total/Usable) |
28, 24 |
|
Additional Usable PCIe Lanes from Motherboard |
|
|
X870E |
8x Gen4 |
|
X870 |
4x Gen4 |
|
X670E |
12x Gen4 |
|
X670 |
12x Gen4 |
|
B650E |
8x Gen4 |
|
B650 |
8x Gen4 |
|
NVMe Support |
Boot, RAID0, RAID1, RAID5, RAID10 |
|
System Memory Type |
DDR5 |
|
Memory Channels |
2 |
|
Max. Memory |
192 GB |
|
System Memory Subtype |
UDIMM |
|
Max Memory Speed |
|
|
2x1R |
DDR5-5600 |
|
2x2R |
DDR5-5600 |
|
4x1R |
DDR5-3600 |
|
4x2R |
DDR5-3600 |
|
ECC Support |
Yes (Requires mobo support) |
|
Graphics Capabilities |
|
|
Graphics Model |
AMD Radeon™ Graphics |
|
Graphics Core Count |
2 |
|
Graphics Frequency |
2200 MHz |
|
USB Type-C® DisplayPort™ Alternate Mode |
Yes |
|
Key Features |
|
|
Supported Technologies |
AMD EXPO™ Technology, AMD Ryzen™ Technologies |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
