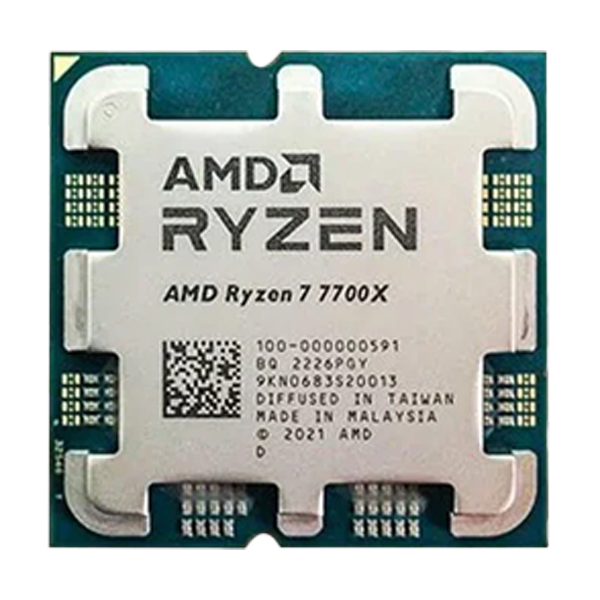

The AMD Ryzen 7 7700X is a Dominant Gaming Desktop Processor. Lead Your Team to Victory with the Top 8-Core AMD Gaming Processor.
8 Cores & 16 Threads, 40 MB Cache, 5nm ‘Zen 4’ Architecture
Base Clock: 4.5 GHz, Max Boost Clock: up to 5.4 GHz.
Memory Support: DDR5 5200MHz, Memory Channels: 2, TDP: 105W, PCI Express Generation : PCIe Gen 5.0
Compatible with Motherboards based on 600 Series Chipset, Socket AM5
AMD Technologies : AMD EXPO Technology, AMD Ryzen Technologies
|
General Specifications |
|
|
Platform |
Desktop |
|
Market Segment |
Enthusiast Desktop |
|
Product Family |
AMD Ryzen™ Processors |
|
Product Line |
AMD Ryzen™ 7 Desktop Processors |
|
AMD PRO Technologies |
No |
|
Consumer Use |
Yes |
|
Regional Availability |
Global |
|
Former Codename |
“Raphael AM5” |
|
Architecture |
“Zen 4” |
|
# of CPU Cores |
8 |
|
Multithreading (SMT) |
Yes |
|
# of Threads |
16 |
|
Max. Boost Clock |
Up to 5.4GHz |
|
Base Clock |
4.5GHz |
|
L1 Cache |
512KB |
|
L2 Cache |
8MB |
|
L3 Cache |
32MB |
|
Default TDP |
105W |
|
Processor Technology for I/O Die |
TSMC 6nm FinFET |
|
CPU Compute Die (CCD) Size |
71mm² |
|
I/O Die (IOD) Size |
122mm² |
|
Package Die Count |
2 |
|
Unlocked for Overclocking |
Yes |
|
AMD EXPO™ Memory Overclocking Technology |
Yes |
|
Precision Boost Overdrive |
Yes |
|
Curve Optimizer Voltage Offsets |
Yes |
|
AMD Ryzen™ Master Support |
Yes |
|
CPU Socket |
AM5 |
|
Supporting Chipsets |
X670E |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
|
Thermal Solution (PIB) |
Not included |
|
Max. Operating Temperature (Tjmax) |
95°C |
|
*OS Support |
Windows 11 – 64-Bit Edition |
|
Connectivity |
|
|
USB Type-C® Support |
Yes |
|
Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
|
Native USB 3.2 Gen 1 (5Gbps) Ports |
0 |
|
Native USB 2.0 (480Mbps) Ports |
1 |
|
Native SATA Ports |
0 |
|
Native PCIe® Lanes (Total/Usable) |
28/24 |
|
Additional Usable PCIe Lanes from Motherboard |
AMD X670E |
|
NVMe Support |
Boot, RAID0, RAID1, RAID10 |
|
Memory Channels |
2 |
|
Max. Memory |
128GB |
|
System Memory Subtype |
UDIMM |
|
Max Memory Speed |
1x1R |
|
ECC Support |
Yes (Requires mobo support) |
|
Graphics Capabilities |
|
|
Integrated Graphics |
Yes |
|
Graphics Model |
AMD Radeon™ Graphics |
|
Graphics Core Count |
2 |
|
Graphics Frequency |
2200 MHz |
|
GPU Base |
400 MHz |
|
USB Type-C® DisplayPort™ Alternate Mode |
Yes |
|
Key Features |
|
|
Supported Technologies |
AMD EXPO™ Technology |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
