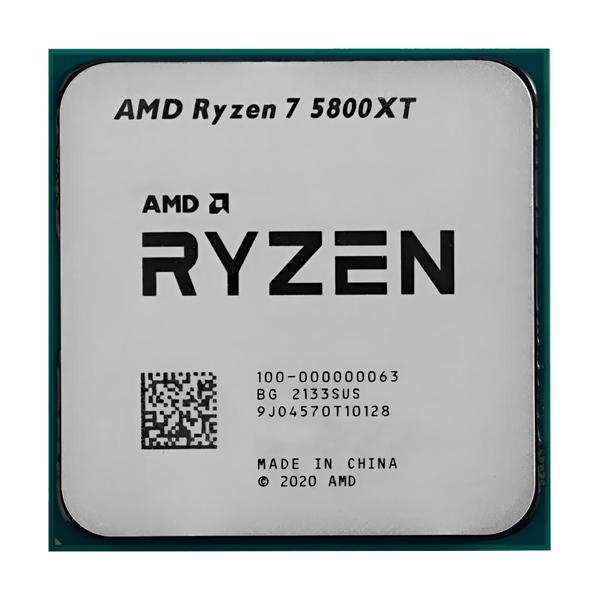

Unleash elite performance with the AMD Ryzen 7 5800XT 8 Cores 16 Threads Desktop Processor. Dominate games and crush workloads with up to 4.8 GHz speeds and Zen 3 architecture. Experience next-gen connectivity with PCIe 4.0 and support for 128GB DDR4 RAM. Overclock-ready and VR-optimized, it's the heart of your dream PC build.
Powerhouse Performance
Unleash unparalleled computing power with the AMD Ryzen™ 7 5800XT. Boasting 8 cores and 16 threads on the cutting-edge Zen 3 architecture, this beast delivers lightning-fast speeds up to 4.8 GHz. Dominate multi-tasking and crush demanding workloads with ease.
Precision Engineering
Experience the perfect fusion of performance and efficiency. Crafted using advanced 7nm technology, the 5800XT runs cool and quiet while delivering top-tier performance. With AMD’s Precision Boost 2 and a robust 105W TDP, it’s built to excel under pressure.
Unrivaled Connectivity
Future-proof your rig with PCIe 4.0 support and expansive memory capabilities. Enjoy lightning-fast data transfers, support for up to 128GB DDR4 RAM, and seamless compatibility with a wide range of AM4 motherboards. Your gateway to next-gen computing is here.
Enthusiast’s Dream
Unlock your system’s full potential. With full overclocking support, AMD StoreMI technology, and Ryzen Master Utility, the 5800XT puts you in control. Whether you’re a hardcore gamer, content creator, or VR enthusiast, this chip is your ticket to the ultimate PC experience.
|
Brand |
AMD |
|
Model |
100-100001582BOX |
|
General Specifications |
|
|
Family |
Ryzen |
|
Series |
Ryzen 5000 Series |
|
Form Factor |
Boxed Processor, Desktops |
|
Market Segment |
Enthusiast Desktop |
|
Architecture |
Zen 3 |
|
Former Codename |
Vermeer |
|
Launch Date |
7/31/2024 |
|
Core Configuration |
|
|
# of CPU Cores |
8 |
|
# of Threads |
16 |
|
Multithreading (SMT) |
Yes |
|
Clock Speeds |
|
|
Base Clock |
3.8 GHz |
|
Max. Boost Clock |
Up to 4.8 GHz |
|
Cache |
|
|
L1 Cache |
512 KB |
|
L2 Cache |
4 MB |
|
L3 Cache |
32 MB |
|
Power & Thermal |
|
|
Default TDP |
105W |
|
Max. Operating Temperature (Tjmax) |
90°C |
|
Thermal Solution (PIB) |
AMD Wraith Prism |
|
Technology |
|
|
Processor Technology for CPU Cores |
TSMC 7nm FinFET |
|
Processor Technology for I/O Die |
12nm (Globalfoundries) |
|
CPU Compute Die (CCD) Size |
74mm² |
|
I/O Die (IOD) Size |
125mm² |
|
Package Die Count |
2 |
|
Socket & Chipset |
|
|
CPU Socket |
AM4 |
|
Supporting Chipsets |
X570, B550, A520, X470, B450 |
|
Features |
|
|
Unlocked for Overclocking |
Yes |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
|
OS Support |
Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
|
Connectivity |
|
|
Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
|
Native SATA Ports |
2 |
|
PCI Express® Version |
PCIe® 4.0 |
|
Native PCIe® Lanes (Total/Usable) |
24, 20 |
|
NVMe Support |
Boot, RAID0, RAID1, RAID10 |
|
Memory |
|
|
System Memory Type |
DDR4 |
|
Memory Channels |
2 |
|
Max. Memory |
128 GB |
|
System Memory Subtype |
UDIMM |
|
Max Memory Speed (2x1R, 2x2R) |
DDR4-3200 |
|
Max Memory Speed (4x1R) |
DDR4-2933 |
|
Max Memory Speed (4x2R) |
DDR4-2667 |
|
ECC Support |
Yes (Requires mobo support) |
|
Graphics Capabilities |
Discrete Graphics Card Required |
|
Key Features |
AMD Zen 3 Core Architecture, |
|
Warranty |
2 Year |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
