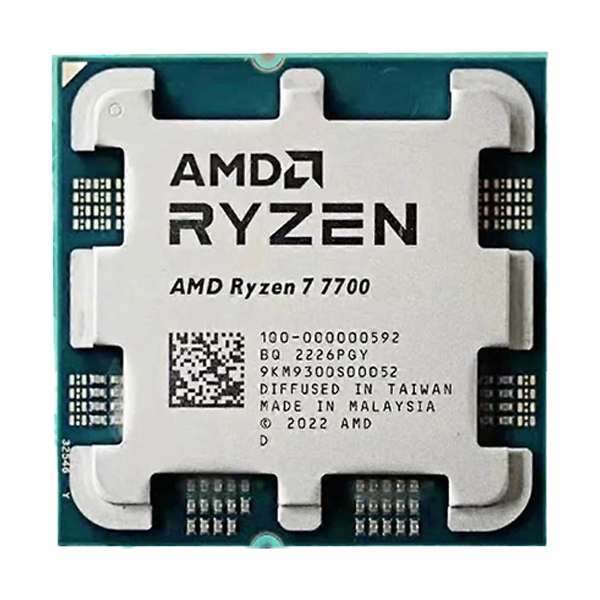

AMD Ryzen 7 7700 Series with Radeon Graphics Desktop Processor, this Processor Belongs to Raphael Former, It has 8 Cores and 16 Threads, Max boost clock 5.3GHz, It supports AM5 Socket
Unleash Balanced Performance
8 Cores and 16 Threads: This processor configuration delivers robust processing power for multitasking, creative workloads, and demanding games.
Max Boost Clock Up to 5.3 GHz: Experience excellent responsiveness and smooth performance during everyday use, content creation, and even intense gaming sessions.
Support for DDR5 Memory: Equip your system with cutting-edge DDR5 memory for faster data transfer speeds, boosting overall system performance.
Designed for Modern Tasks
Advanced Socket AM5 Compatibility: Leverages the latest AM5 platform for cutting-edge features and futureproofing your system.
5nm Zen 4 Architecture: Offers improved efficiency and performance compared to previous generations.
Default TDP of 105W: Manageable power consumption for a high-performance processor.
Additional Features
Integrated AMD Radeon™ Graphics (Optional): Select models may include integrated graphics for basic visuals if desired. However, a dedicated graphics card is recommended for demanding workloads and the best gaming experience.
Overclocking Support (on compatible motherboards): For experienced users, compatible motherboards may allow further performance tweaks (refer to motherboard manufacturer specifications for details).
|
Model |
RYZEN-7-7700 |
|
General Specifications |
|
|
Platform |
Desktop |
|
Product Family |
AMD Ryzen™ Processors |
|
Market Segment |
Enthusiast Desktop |
|
Product Line |
AMD Ryzen™ 7 Processors |
|
AMD PRO Technologies |
No |
|
Consumer Use |
Yes |
|
Regional Availability |
Global |
|
Former Codename |
“Raphael AM5” |
|
Architecture |
“Zen 4” |
|
Multithreading (SMT) |
Yes |
|
# of CPU Cores |
8 |
|
# of Threads |
16 |
|
Max. Boost Clock |
Up to 5.3GHz |
|
Base Clock |
3.8GHz |
|
L1 Cache |
512KB |
|
L2 Cache |
8MB |
|
L3 Cache |
32MB |
|
Default TDP |
65W |
|
Processor Technology for CPU Cores |
TSMC 5nm FinFET |
|
Processor Technology for I/O Die |
TSMC 6nm FinFET |
|
CPU Compute Die (CCD) Size |
71mm² |
|
I/O Die (IOD) Size |
122mm² |
|
Package Die Count |
2 |
|
Unlocked for Overclocking |
Yes |
|
AMD EXPO™ Memory Overclocking Technology |
Yes |
|
Precision Boost Overdrive |
Yes |
|
Curve Optimizer Voltage Offsets |
Yes |
|
AMD Ryzen™ Master Support |
Yes |
|
CPU Socket |
AM5 |
|
Supporting Chipsets |
X670E |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
|
Thermal Solution (PIB) |
AMD Wraith Prism |
|
Max. Operating Temperature (Tjmax) |
95°C |
|
OS Support |
Windows 11 – 64-Bit Edition |
|
Connectivity |
|
|
USB Type-C® Support |
Yes |
|
Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
|
Native USB 3.2 Gen 1 (5Gbps) Ports |
0 |
|
Native USB 2.0 (480Mbps) Ports |
1 |
|
Native SATA Ports |
0 |
|
PCI Express® Version |
PCIe® 5.0 |
|
Native PCIe® Lanes (Total/Usable) |
28/24 |
|
Additional Usable PCIe Lanes from Motherboard |
AMD X670E 12x Gen4 |
|
NVMe Support |
Boot, RAID0, RAID1, RAID10 |
|
System Memory Type |
DDR5 |
|
Memory Channels |
2 |
|
Max. Memory |
128GB |
|
System Memory Subtype |
UDIMM |
|
Max Memory Speed |
2x1R DDR5-5200 |
|
ECC Support |
Yes (Requires mobo support) |
|
Graphics Capabilities |
|
|
Integrated Graphics |
Yes |
|
Graphics Model |
AMD Radeon™ Graphics |
|
Graphics Core Count |
2 |
|
Graphics Frequency |
2200 MHz |
|
GPU Base |
400 MHz |
|
USB Type-C® DisplayPort™ Alternate Mode |
Yes |
|
Supported Technologies |
AMD EXPO™ Technology |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
