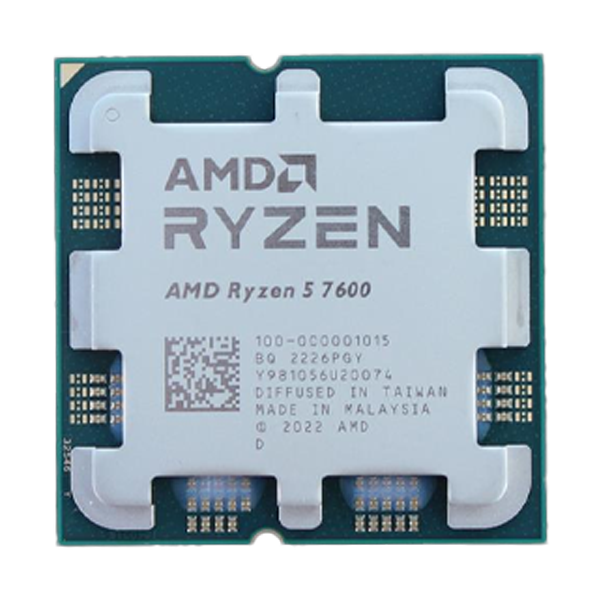

AMD Ryzen 5 7600 Series with Radeon Graphics Desktop Processor this Processor Belongs to Raphael Former, It has 6 Cores and 12 Threads, Max boost clock 5.1GHz, It supports AM5 Socket
GAMING PERFORMANCE OPTIMIZED FOR EFFICIENCY
Get a competitive edge with AMD Ryzen 5 7600 desktop processors and AMD Socket AM5 motherboards. Fast gameplay and performance for your game-winning moves.
HIGH PERFORMANCE LOW POWER
Overclock at an incredible value with AMD Ryzen 5 7600 processors. AMD Ryzen 5 7600 processor is built to help you beat the clock with time-saving connectivity like PCIe 5.0, 6 cores/12 processing threads, and dedicated video accelerators.
UPGRADEABLE FOR YEARS TO COME
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO technology to the increased bandwidth with PCIe 5.0, supported through 2025.
| Model | RYZEN-5-7600 |
General Specifications |
|
| Platform | Desktop |
| Product Family | AMD Ryzen™ Processors |
| Market Segment | Enthusiast Desktop |
| Product Line | AMD Ryzen™ 5 Processors |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | “Raphael AM5” |
| Architecture | “Zen 4” |
| Multithreading (SMT) | Yes |
| # of CPU Cores | 6 |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5.1GHz |
| Base Clock | 3.8GHz |
| L1 Cache | 384KB |
| L2 Cache | 6MB |
| L3 Cache | 32MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm² |
| I/O Die (IOD) Size | 122mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | X670E X670 B650E B650 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 95°C |
| OS Support | Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
Connectivity |
|
| USB Type-C® Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| PCI Express® Version | PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) | 28/24 |
| Additional Usable PCIe Lanes from Motherboard | AMD X670E 12x Gen4 AMD X670 12x Gen4 AMD B650E 8x Gen4 AMD B650 8x Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
Graphics Capabilities |
|
| Integrated Graphics | Yes |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| GPU Base | 400 MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Supported Technologies | AMD EXPO™ Technology AMD Ryzen™ Technologies |
| Warranty | 3 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
