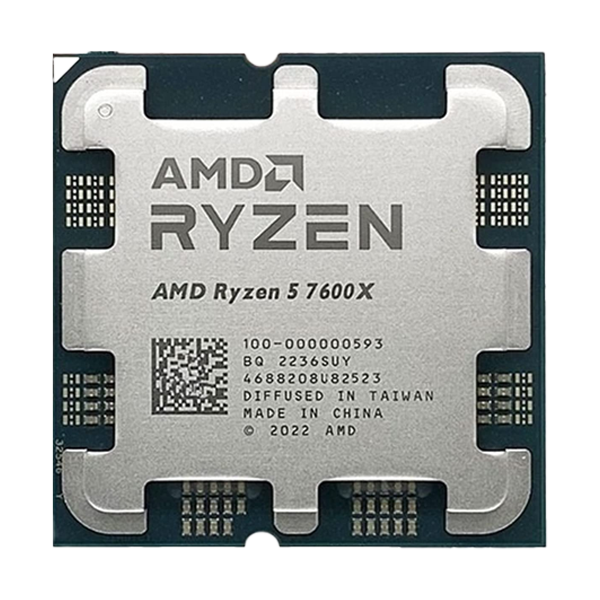

The AMD Ryzen 5 7600X is a desktop processor produced by AMD for socket AM5 that has 6 cores and 12 threads. The base clock frequency of the CPU is 4700 MHz, but due to Turbo Core technology, it can perform up to 5300 MHz. The size of the L3 cache is 32 MB. Please note that this chip has integrated graphics AMD Radeon Graphics.
Pure gaming performance
Get a competitive edge with AMD Ryzen™ 5 7600X desktop processors and AMD Socket AM5 motherboards. Fast gameplay and ultimate performance for your game-winning moves.
The world’s most advanced PC processor
Take on any game with the pure speed of AMD Ryzen™ 5 7600X desktop processor.
The latest technologies from AMD
AMD Ryzen™ 5 7600X processor is built to help you beat the clock with time-saving connectivity like PCIe® 5.0, 12 processing threads, and dedicated video accelerators.
The future of Ryzen processors
Power. Performance. Possibility. AMD Socket AM5 motherboards deliver new features for gamers, from the speed of DDR5 memory and AMD EXPO™ technology to the increased bandwidth with PCIe 5.0.
|
General Specifications |
|
|
Platform |
Desktop |
|
Market Segment |
Enthusiast Desktop |
|
Product Family |
AMD Ryzen™ Processors |
|
Product Line |
AMD Ryzen™ 5 Desktop Processors |
|
AMD PRO Technologies |
No |
|
Consumer Use |
Yes |
|
Regional Availability |
Global |
|
Former Codename |
“Raphael AM5” |
|
Architecture |
“Zen 4” |
|
# of CPU Cores |
6 |
|
Multithreading (SMT) |
Yes |
|
# of Threads |
12 |
|
Max. Boost Clock |
Up to 5.3GHz |
|
Base Clock |
4.7GHz |
|
L1 Cache |
384KB |
|
L2 Cache |
6MB |
|
L3 Cache |
32MB |
|
Default TDP |
105W |
|
Processor Technology for CPU Cores |
TSMC 5nm FinFET |
|
Processor Technology for I/O Die |
TSMC 6nm FinFET |
|
CPU Compute Die (CCD) Size |
71mm² |
|
I/O Die (IOD) Size |
122mm² |
|
Package Die Count |
2 |
|
Unlocked for Overclocking |
Yes |
|
AMD EXPO™ Memory Overclocking Technology |
Yes |
|
Precision Boost Overdrive |
Yes |
|
Curve Optimizer Voltage Offsets |
Yes |
|
AMD Ryzen™ Master Support |
Yes |
|
CPU Socket |
AM5 |
|
Supporting Chipsets |
X670E |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
|
Thermal Solution (PIB) |
Not included |
|
Max. Operating Temperature (Tjmax) |
95°C |
|
*OS Support |
Windows 11 – 64-Bit Edition |
|
Connectivity |
|
|
USB Type-C® Support |
Yes |
|
Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
|
Native USB 3.2 Gen 1 (5Gbps) Ports |
0 |
|
Native USB 2.0 (480Mbps) Ports |
1 |
|
Native SATA Ports |
0 |
|
Native PCIe® Lanes (Total/Usable) |
28/24 |
|
Additional Usable PCIe Lanes from Motherboard |
AMD X670E |
|
NVMe Support |
Boot, RAID0, RAID1, RAID10 |
|
Memory Channels |
2 |
|
Max. Memory |
128GB |
|
System Memory Subtype |
UDIMM |
|
Max Memory Speed |
1x1R |
|
ECC Support |
Yes (Requires mobo support) |
|
Graphics Capabilities |
|
|
Integrated Graphics |
Yes |
|
Graphics Model |
AMD Radeon™ Graphics |
|
Graphics Core Count |
2 |
|
Graphics Frequency |
2200 MHz |
|
GPU Base |
400 MHz |
|
USB Type-C® DisplayPort™ Alternate Mode |
Yes |
|
Key Features |
|
|
Supported Technologies |
AMD EXPO™ Technology |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
