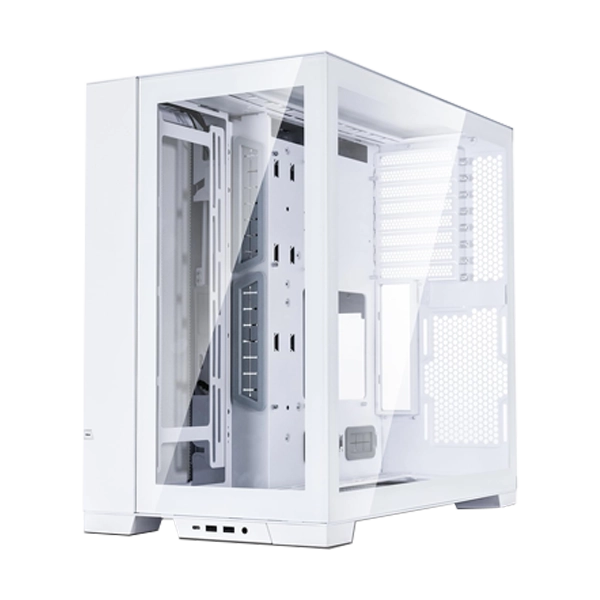

Lian Li O11 Dynamic EVO Mid‑Tower White Chassis is a premium mid‑tower PC case built with 4 mm aluminum, tempered glass and steel, designed for gamers and PC builders who want a clean, spacious and highly configurable build.It supports motherboards from ITX up to E‑ATX (≤280 mm width), full‑size GPUs (up to ~422 mm length), and allows up to 10 fans or multiple radiators- great for big gaming rigs or custom water‑cooled systems.
Mid-tower chassis with two modes: Normal Mode/ Reverse Mode
Feature multi-directional power button and movable IO module
Front and side tempered glass panels for components and RGB display
Supports up to 3x 360 radiators and a maximum of 10 fans
Offers 9 storage drives mounting space
Dual-chamber layout with hooks-friendly cable management compartment
Five optional accessories: Vertical GPU Kit / Upright GPU Kit / Additional I/O kit / Front Mesh Kit / Top I/O Kit
BUILD WITH THE FINEST MATERIALS
With only a few steps, the O11D EVO can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis.
VERSATILE ORIENTATION
With only a few steps, the O11D EVO can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis.
EXQUISITE, YET FUNCTIONAL
Following the O11 Dynamic series style, the aluminum panels feature an updated fine mesh which provides an optimal airflow and dust filtering ratio.
SPACIOUS COOLING SUPPORT
The O11D EVO features sufficient space to accommodate 3x 360mm radiators and up to 10 fans.
MASSIVE STORAGE CAPACITY
Multiple easily accessible storage mounting points are provided to support up to 9x SSDs or 6x HDDs + 3x SSDs.
CLEAN LOOK
The O11D EVO keeps the front panel as clean as possible with a multi-directional power button that can be pressed from both the front and the side of the chassis.
PERSONALIZED ARGB LIGHTING STRIP
The front panel LED strip features 7 built-in lighting effects which can be controlled via the M button. An 8th mode is available to enable motherboard software synchronization or L-Connect control.
STRUGGLE-FREE FAN BRACKETS
While each fan bracket features a quick-release design, they can be fixed to the chassis via a straightforward process.
EFFORTLESS CABLE MANAGEMENT
The O11D EVO optimizes the user’s ability to cable manage their system with a dual-chamber design and a removable bracket.
RELOCATABLE I/O PORT
At the bottom of the chassis, the I/O module can be relocated to 3 locations without using any tools.
OPTIONAL ACCESSORIES ADDITIONAL I/O PORTS
Double the number of USB ports for a total of 4 × USB 3.0 Type-A and 2 × USB 3.1 Type-C with the additional accessory.
POTENTIAL FOR DUAL PSU
The drive cage can be removed to make place for a second PSU, or be switched to a lower position.
ANTI-SAG BRACKET FOR PERFECTLY HORIZONTAL GPU
The GPU anti-sag bracket is included for displaying hardware through the seamless front and side tempered glass panels.
|
PRODUCT NAME |
O11D EVO |
|
MODEL |
O11DEW |
|
COLOR |
White |
|
DIMENSION |
(D)465mm × (W)285mm × (H)459mm |
|
MATERIAL |
4mm Aluminum |
|
4mm Tempered Glass |
|
|
1mm Steel Structure |
|
|
MOTHERBOARD SUPPORT |
E-ATX (width: under 280mm)/ATX /M-ATX/ITX |
|
PSU SUPPORT |
220mm |
|
FAN SUPPORT |
Top: 120mm × 3 or 140mm × 2 |
|
Side: 120mm × 3 or 140mm × 2 |
|
|
Bottom: 120mm × 3 or 140mm × 2 |
|
|
Rear: 120mm × 1 On Drive Cage: 60mm × 1 |
|
|
RADIATOR SUPPORT |
Top: 360mm × 1 or 280mm × 1 |
|
*Total max thickness: 87.5mm |
|
|
Side: 360mm × 1 or 280mm × 1 |
|
|
*Inner scenario total max thickness: |
|
|
83mm(120mm fan on top and bottom) |
|
|
63mm(140mm fan on top and bottom) |
|
|
*Outer scenario total max. thickness： |
|
|
120mm(120mm fan on top and bottom) |
|
|
100mm(140mm fan on top and bottom) |
|
|
Bottom: 360mm × 1 |
|
|
*Total max thickness: 87.5mm |
|
|
DRIVE SUPPORT |
Bottom：2.5” SSD × 4 or 3.5” HDD × 2 |
|
Side：2.5” SSD × 4 or 3.5” HDD × 2 |
|
|
Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1 |
|
|
Cable Management Bar：2.5” SSD × 2 |
|
|
*Only 9 sets of 2.5” SSD mounting pads are provided |
|
|
GPU LENGTH CLEARANCE |
422 mm |
|
CPU HEIGHT CLEARANCE |
167 mm |
|
EXPANSION SLOTS |
8 |
|
I/O PORTS |
2 × USB 3.0 |
|
1 × USB 3.1 TYPE-C, |
|
|
1 × HD AUDIO/MIC LED |
|
|
LED Color and Mode button resets |
|
|
Reset Button |
|
|
Power Button |
|
|
DUST FILTER |
Bottom × 1 |
|
Warranty |
1 Year |
|
Note |
*Features, Prices, and Specifications are subject to change without notice. |
