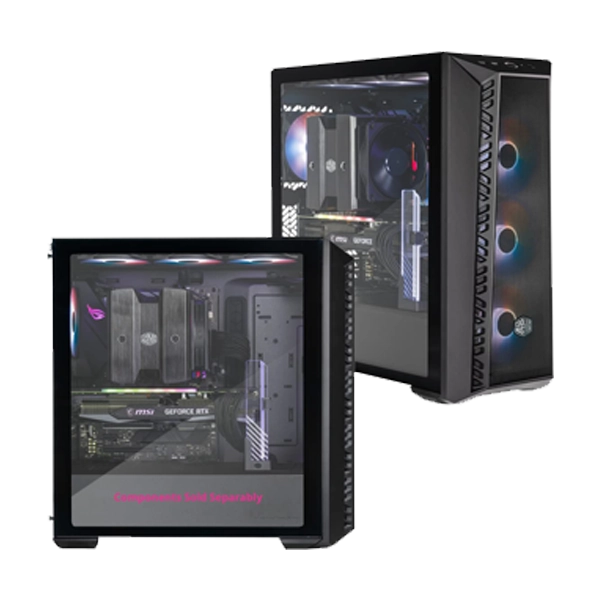

The Cooler Master MasterBox MB520 Mesh Black ARGB is an ATX mid-tower cabinet designed for high airflow and striking aesthetics. It features a full mesh front panel for enhanced cooling, three pre-installed ARGB fans for vibrant lighting, and a transparent tempered-glass side panel to showcase your components. With spacious interior support for large GPUs, multiple storage options, and efficient cable management, it’s an ideal choice for building a stylish and performance-focused gaming PC.
AVAILABLE IN BOTH BLACK & WHITE COLORATIONS
Master Box 520 Mesh is available in both black and white so you can choose the color that best matches your setup!

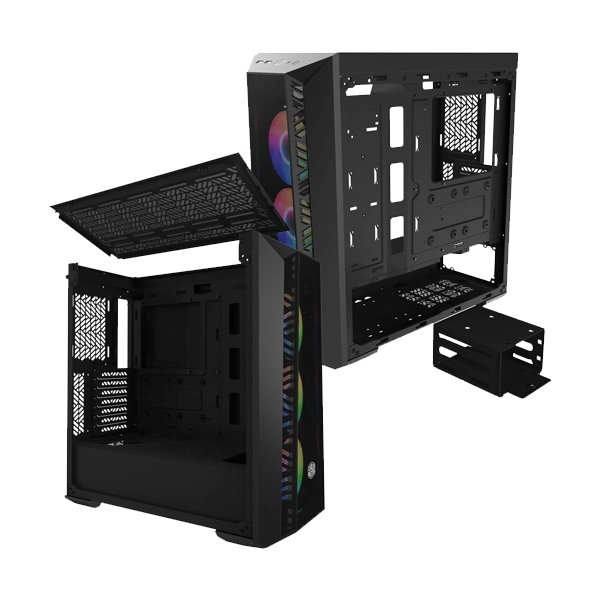

REMOVABLE TOP PANEL
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.
SCREWLESS AND TOOL-FREE TG SIDE PANEL
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.
(RE)MOVABLE HDD CAGE
The HDD cage is completely (re)movable for improved access during assembly and system upgrades.
UPGRADED REMOVABLE DUST FILTER BRACKET
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.
HARDWARE COMPATIBILITY
MasterBox 520 Mesh is natively compatible with ITX, M-ATX, and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.
|
Exterior Color |
Black |
|
Materials – Exterior |
Mesh, Steel, ABS Plastic, Tempered Glass |
|
Materials – Left Side Panel |
Tempered Glass |
|
Dimensions (L x W x H) |
502 x 210 x 498mm (Incl. Protrusions), 443 x 210 x 498mm (Body Size) |
|
Volume |
50L |
|
Motherboard Support |
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 10.7″ motherboards, may impact cable management feature) |
|
Expansion Slots |
7 |
|
3.5″ Drive Bays |
2 |
|
2.5″ Drive Bays |
3 |
|
I/O Panel |
1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button |
|
Included Accessories |
ARGB Fans Hub |
|
Pre-installed Fans – Front |
3x CF120 ARGB |
|
Fan Support – Top |
3x 120mm, 2x 140mm |
|
Fan Support – Front |
3x 120mm, 2x 140mm |
|
Fan Support – Rear |
1x 120mm |
|
Radiator Support – Top |
120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
|
Radiator Support – Front |
120mm, 140mm, 240mm, 280mm, 360mm |
|
Radiator Support – Rear |
120mm |
|
Clearance – CPU Cooler |
165mm/6.49″ |
|
Clearance – PSU |
200mm, (Recommended up to 170mm) |
|
Clearance – GFX |
410mm/16.1″ |
|
Dust Filters |
Bottom, Front, Top |
|
Power Supply Support |
ATX |
|
Warranty |
2 years |
|
Series |
MasterBox Series |
|
Size |
Mid Tower |
|
Warranty |
2 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
