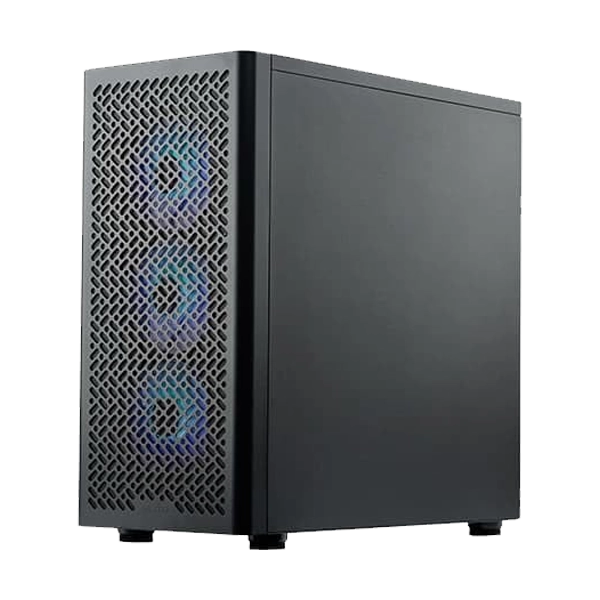

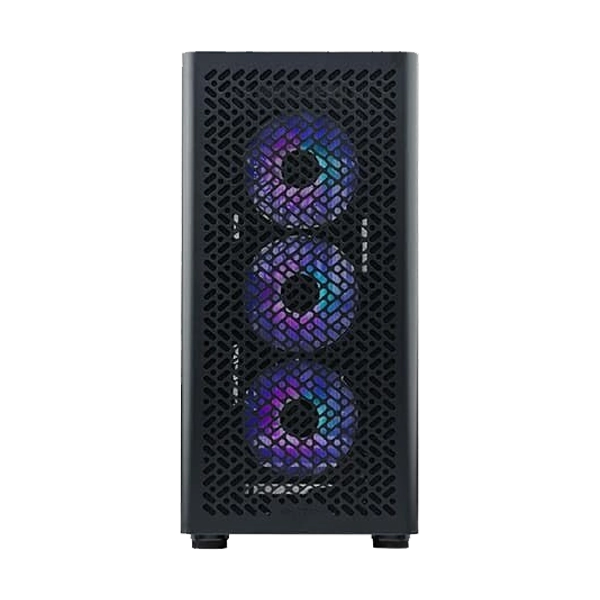

The Elite 502 is a versatile mid-tower PC case built for performance and flexibility — it features a mesh front panel for strong airflow, comes with three pre-installed 120 mm ARGB fans, and supports modern motherbIt offers plenty of room for upgrades, with support for large CPU coolers (up to 170 mm), multiple fans/radiatoroards (up to E-ATX) and long graphics cards (up to ~410 mm),It offers plenty of room for upgrades, with support for large CPU coolers (up to 170 mm), multiple fans/radiators.
| Model Number | E502-KGNN-S00 |
| Exteriror Color | Black |
| Materials – Exterior | Steel |
| Materials – Right Side Panel | Steel |
| Materials – Left Side Panel | TG |
| Dimensions (L x W x H)) | 474 x 230 x 481 mm(Incl. Protrusions), 435 x 230 x 465 mm(Excl. Protrusions) |
| Volume (incl. Protrusions) | 49.73L |
| Motherboard Support | ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12″x10.9″/ 30.5cmx27.7cm motherboards, may impact cable management) |
| Expansion Slots | 7 |
| 5.25″ Drive Bays | N/A |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2 (Max.6) |
| I/O Panel – USB Ports | 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C |
| I/O Panel – Audio In / Out | 3.5 mm Combo x 1 |
| Fan Support – Front | (Filtered) 140 mm x 3 / 120 mm x 3 |
| Fan Support – Top | (Filtered) 140 mm x 2 / 120 mm x 3 |
| Fan Support – Rear | 1x 120mm |
| Pre-installed Fans – Front | 3x 120mm ARGB Fans |
| Pre-installed Fans – Top | N/A |
| Pre-installed Fans – Rear | N/A |
| Radiator Support – Front | 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm) |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 170mm |
| Clearance – PSU | 170mm, 210mm (w/o HDD Cage) |
| Clearance – Graphics Card (installed 3.5″HDD BRK) | 360 / 410 mm (w/o front radiator) |
| Cable Routing – Behind Motherboard Tray | 33-35mm |
| Dust Filters | Top / Bottom / Front |
| Power Supply Support | ATX |
| Size | Mid Tower |
| Series | Elite Series |
| Warranty | 2 Years |
| Note** | *Price, feature and specifications are subject to change without notice. |
