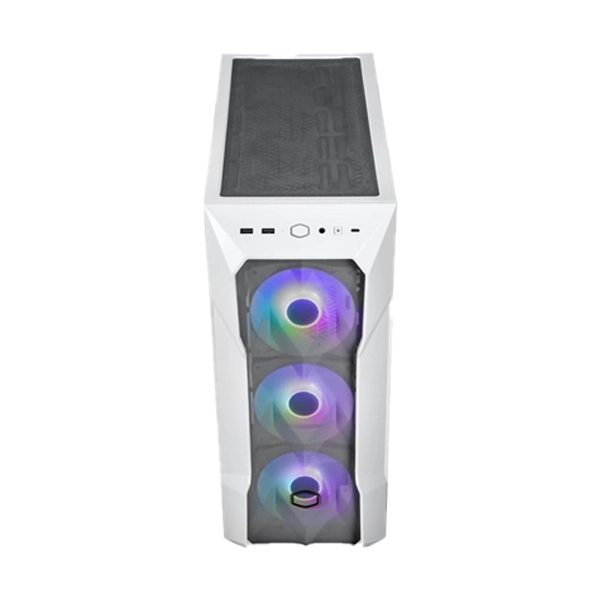

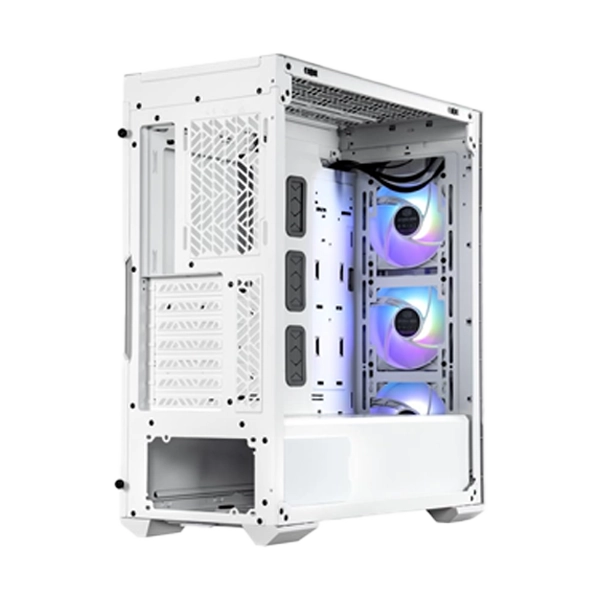

TheCooler Master MasterBox TD500 Mesh V2 White Mid Tower Cabinet is a mid-tower PC case designed around high airflow and flexible hardware support. It comes with a mesh front panel and pre-installed triple ARGB fans to ensure good cooling and attractive lighting. Inside, it supports a wide range of motherboard sizes (Mini-ITX to E-ATX), long GPUs (up to ~410 mm), and sizable PSUs, with space for multiple storage drives — making it a versatile choice for gaming or performance builds
AVAILABLE IN BOTH BLACK & WHITE COLORATIONS
MasterBox TD500 Mesh V2 is available in both black and white so you can choose the color that best
matches your setup
THREE CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
USB 3.2 GEN 2 TYPE C SUPPORT
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need
ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.
REMOVABLE TOP PANEL
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.
TOOL-FREE CRYSTALLINE TG SIDE PANEL
It features a crystalline tempered glass side panel, completely toolless for quick access to the internals.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
PSU SHROUD WITH REMOVABLE COVER
Master Box TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.
HARDWARE COMPATIBILITY
Master Box TD500Mesh V2 is natively compatible with ITX, M-ATX, and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.
|
Exterior Color |
White |
|
Materials – Exterior |
Steel, Mesh, Plastic |
|
Materials – Left Side Panel |
Tempered Glass |
|
Dimensions (L x W x H) |
499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions) |
|
Volume |
50L (excl. Protrusions) |
|
Motherboard Support |
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 10.7″ motherboards, may impact cable management feature) |
|
Expansion Slots |
7 |
|
3.5″ Drive Bays |
2 |
|
2.5″ Drive Bays |
3 |
|
I/O Panel – USB Ports |
2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
|
I/O Panel – Audio In / Out |
1x Audio Jack |
|
I/O Panel – Other |
1x ARGB Fan Hub |
|
Pre-installed Fans – Front |
3x 120mm CF120 ARGB |
|
Fan Support – Top |
3x 120mm, 2x 140mm |
|
Fan Support – Front |
3x 120mm, 2x 140mm |
|
Fan Support – Rear |
1x 120mm |
|
Radiator Support – Top |
120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm) |
|
Radiator Support – Front |
120mm, 140mm, 240mm, 280mm, 360mm |
|
Radiator Support – Rear |
120mm |
|
Clearance – CPU Cooler |
165mm / 6.49″ |
|
Clearance – PSU |
200mm, (Recommended up to 170mm) |
|
Clearance – GFX |
410mm / 16.14″ |
|
Cable Routing – Behind Motherboard Tray |
19mm / 0.74″ |
|
Dust Filters |
Front, Top, Bottom |
|
Power Supply Support |
Bottom Mount, ATX |
|
Series |
MasterBox Series |
|
Size |
Mid Tower |
|
Warranty |
2 Years |
|
Note |
* Features, Prices, Specifications are subject to change without notice. |
