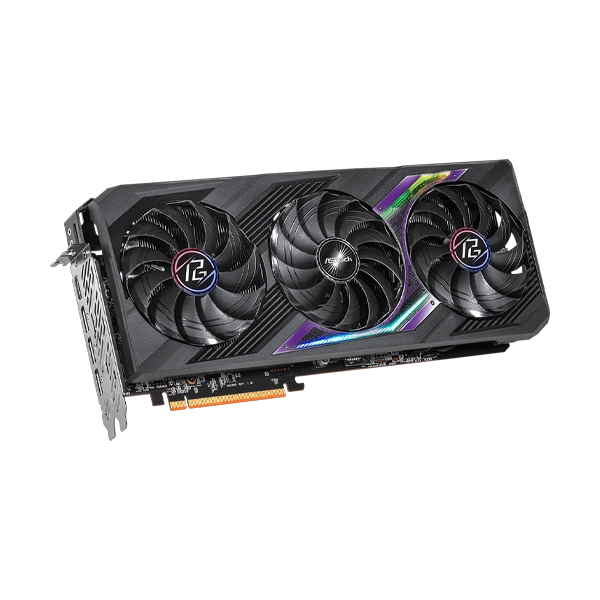

The ASRock Radeon RX 7700 XT Phantom Gaming 12 GB OC is a high-performance graphics card powered by AMD’s RDNA 3 architecture, featuring 3,456 stream processors and 54 compute units. It is equipped with 12 GB of GDDR6 memory on a 192-bit bus and runs at a game clock of 2,276 MHz with a boost clock of up to 2,599 MHz for smooth, responsive gameplay.Designed for optimal cooling and low noise, this card uses ASRock’s Phantom Gaming 3X Cooling System with striped ring fans,
Clock: GPU / Memory
Boost Clock*: Up to 2599 MHz / 18 Gbps
Game Clock**: 2276 MHz / 18 Gbps
Key Specifications
AMD Radeon™ RX 7700 XT
12GB GDDR6 on 192-bit Memory Bus
54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
60MB AMD Infinity Cache™ technology
Microsoft® DirectX® 12 Ultimate
PCI® Express4.0 Support
2 x 8-pin Power Connector
Output: 3 x DisplayPort™ 2.1***, 1 x HDMI® 2.1
Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System

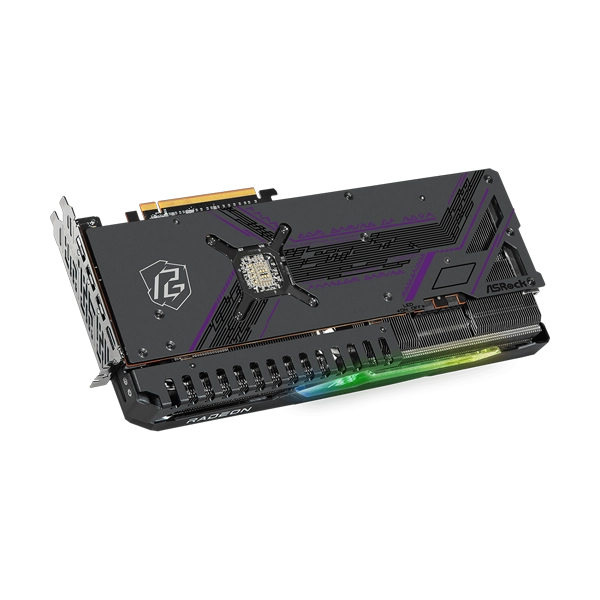

Stylish Metal Backplate
Striped Ring Fan
Air Deflecting Fin
Ultra-fit Heatpipe
0dB Silent Cooling
Super Alloy Graphics Card
ASRock Tweak 2.0
|
Brand |
ASRock |
|
Model |
RX7700XT PG 12GO |
|
Color |
Black |
|
Graphics Engine |
AMD Radeon™ RX 7700 XT Graphics |
|
Bus Standard |
PCI® Express 4.0 x16 |
|
DirectX |
12 Ultimate |
|
OpenGL |
4.6 |
|
Memory |
GDDR6 12GB |
|
Engine Clock |
Boost Clock: 2599 MHz |
|
Game Clock: 2276 MHz |
|
|
Stream Processors |
3456 |
|
Compute Units |
54 |
|
Memory Clock |
18Gbps |
|
Memory Interface |
192-bit |
|
Resolution |
Digital Max Resolution: 7680×4320 |
|
Interface |
1 x HDMI™ 2.1 (up to FRL 12Gbps) |
|
3 x DisplayPort™ 2.1 with DSC (up to UHBR3 13.5Gbps) |
|
|
HDCP |
Yes |
|
Multi-view |
4 |
|
Recommended PSU |
750W |
|
Power Connector |
2 x 8-pin |
|
Accessories |
1 x Quick Installation Guide |
|
Dimensions |
328 x 140 x 53mm |
|
Net Weight |
1450g |
|
Warranty |
3 Years |
|
NOTE |
*Features, Price and Specifications are subject to change without notice. |
