The ASRock Radeon RX 7700 XT Challenger 12 GB OC is a high-performance graphics card based on AMD’s RDNA 3 architecture. With 3,456 stream processors across 54 compute units and 12 GB of GDDR6 memory on a 192-bit bus, it delivers impressive gaming performance. The GPU features a boost clock of up to ~2,584 MHz and a game clock around 2,226 MHz.
Clock: GPU / Memory
Boost Clock*: Up to 2584 MHz / 18 Gbps
Game Clock**: 2226 MHz / 18 Gbps
Key Specifications
AMD Radeon™ RX 7700 XT
12GB GDDR6 on 192-bit Memory Bus
54 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
48MB AMD Infinity Cache™ technology
Microsoft® DirectX® 12 Ultimate
PCI® Express4.0 Support
2 x 8-pin Power Connector
Output: 3 x DisplayPort™ 2.1***, 1 x HDMI® 2.1
Key Features
Dual Fan Design
Stylish Metal Backplate
Striped Ring Fan
Ultra-fit Heatpipe
LED Indicator
0dB Silent Cooling
Super Alloy Graphics Card

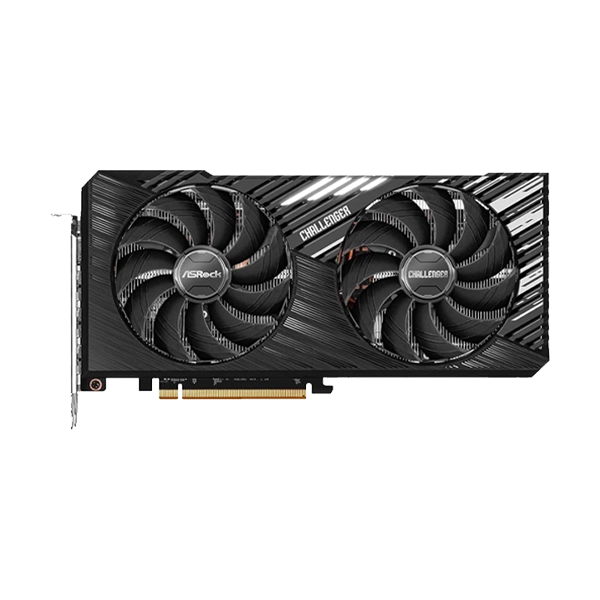

Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Striped Ring Fan Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

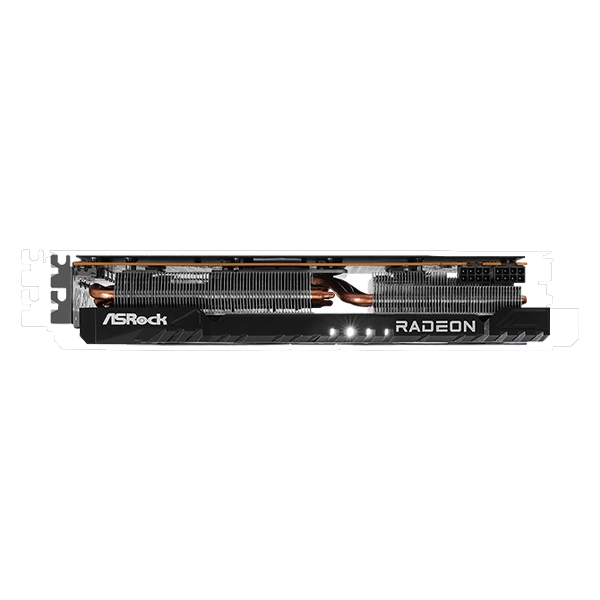

Ultra-fit Heatpipe Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste for Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad for Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque for Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
|
Brand |
ASRock |
|
Color |
Black |
|
Graphics Engine |
AMD Radeon™ RX 7700 XT Graphics |
|
Bus Standard |
PCI® Express 4.0 x16 |
|
DirectX |
12 Ultimate |
|
OpenGL |
4.6 |
|
Memory |
GDDR6 12GB |
|
Engine Clock |
Boost Clock: 2584 MHz |
|
Game Clock: 2226 MHz |
|
|
Stream Processors |
3456 |
|
Compute Units |
54 |
|
Memory Clock |
18Gbps |
|
Memory Interface |
192-bit |
|
Resolution |
Digital Max Resolution: 7680×4320 |
|
Interface |
1 x HDMI™ 2.1 (up to FRL 12Gbps) |
|
3 x DisplayPort™ 2.1 with DSC (up to UHBR3 13.5Gbps)* |
|
|
HDCP |
Yes |
|
Multi-view |
4 |
|
Recommended PSU |
750W |
|
Power Connector |
2 x 8-pin |
|
Accessories |
1 x Quick Installation Guide |
|
Dimensions |
267 x 130 x 51mm |
|
Net Weight |
985g |
|
Warranty |
3 Years |
|
NOTE |
*Features, Price and Specifications are subject to change without notice. |
