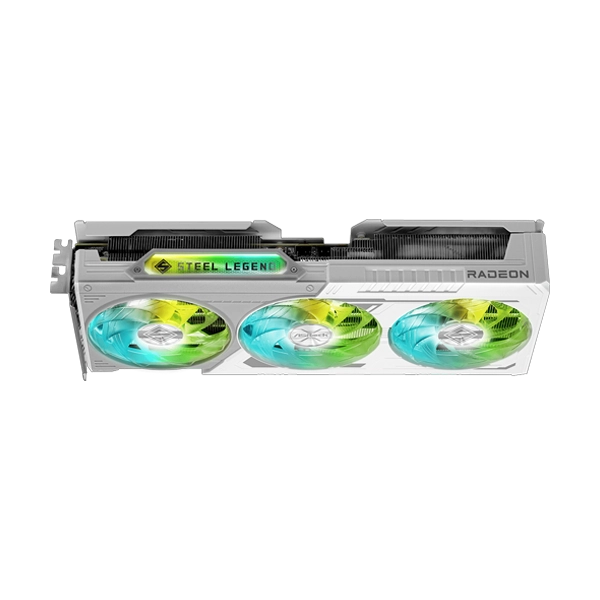

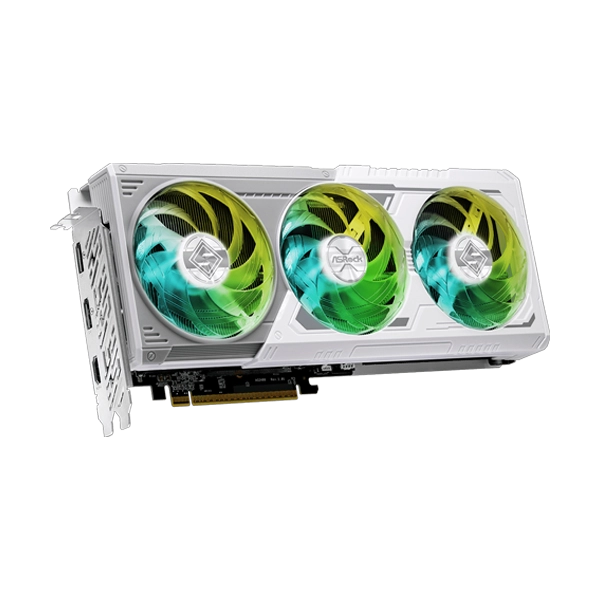

The ASRock Radeon RX 9060 XT Steel Legend OC 16 GB is a powerful graphics card built on AMD’s RDNA 4 architecture featuring the Navi 44 GPU. It packs 2,048 stream processors (32 compute units) and ships with a factory overclocked game clock of 2,780 MHz and a boost clock up to 3,320 MHz, paired with 16 GB of GDDR6 memory running at 20 Gbps on a 128-bit bus.Designed for performance and cooling, the card uses a triple-fan striped ring design,
Boost Clock*: Up to 3320 MHz / 20 GbpsGame Clock**: 2780 MHz / 20 Gbps.
AMD Radeon™ RX 9060 XT GPU16GB GDDR6 on 128-Bit Memory BusAMD RDNA™ 4 Architecture32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)Microsoft® DirectX® 12 UltimatePCI® Express 5.0 Support1 x 8-pin Power Connector2 x DisplayPort™ 2.1a, 1 x HDMI™ 2.1b.
Polychrome SYNCTriple Fan DesignStriped Ring FanStylish Metal BackplateUltra-fit HeatpipeAir Deflecting Fin0dB Silent CoolingSuper Alloy Graphics Card.
|
Brand |
Asrock |
|
Model |
RX9060XT SL 16GO |
|
Colour |
White |
|
Graphics Engine |
AMD Radeon™ RX 9060 XT |
|
Bus Standard |
PCI® Express 5.0 x16 |
|
DirectX |
12 Ultimate |
|
OpenGL |
4.6 |
|
Memory |
16GB GDDR6 |
|
Engine Clock |
Boost Clock*: Up to 3320 MHz |
|
|
Game Clock**: 2780 MHz |
|
|
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. |
|
|
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
|
Stream Processors |
2048 |
|
Memory Clock |
20 Gbps |
|
Memory Interface |
128-bit |
|
Resolution |
Digital Max Resolution: 7680 x 4320 |
|
Interface |
2x DisplayPort 2.1a |
|
|
1x HDMI 2.1b |
|
HDCP |
Yes |
|
Multi-view |
3 |
|
Recommended PSU |
550W |
|
Power Connector |
1x 8-pin |
|
Dimensions |
298 x 131 x 51 mm, 2.55-slot |
|
Net Weight |
967g |
|
NOTE |
*Price, feature and specifications are subject to change without notice |
