Shop the Noctua NH-U14S-TR4 SP3 140mm CPU Air Cooler for AMD sTRX4/TR4/SP3 at the lowest price in India. Premium cooling performance, quiet NF-A15 PWM fan, and 6-year warranty for Ryzen Threadripper/Epyc systems.

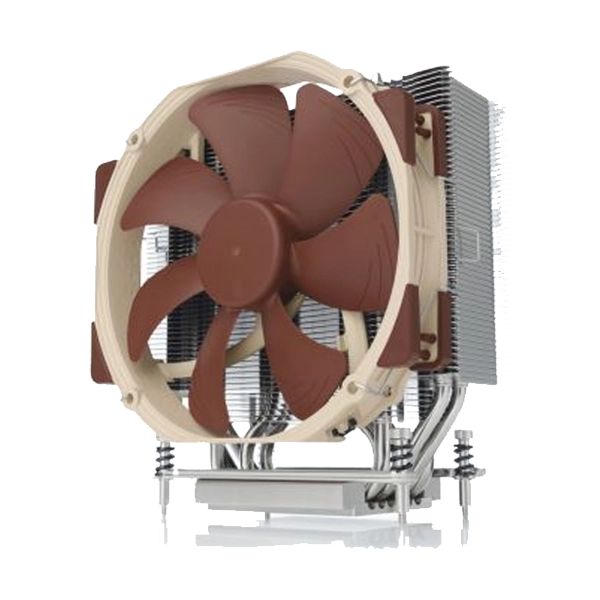

The NOCTUA NH-U14S-TR4-SP3 version is a tailored custom model for AMD’s sTRX4/TR4/SP3 platform (Ryzen Thread ripper / Epic) and features a larger contact surface as well as the latest SecuFirm2™ mounting system for socket sTRX4/sWRX8/TR4/SP3. Topped off with the renowned quiet NF-A15 PWM 140mm fan, Noctua’s proven NT-H1 thermal compound, and a full 6-year manufacturer’s warranty, the NH-U14S TR4-SP3 forms a complete premium-quality solution that combines maximum performance and superb acoustics for enthusiast-grade sTRX4/sWRX8/TR4/SP3 systems.
Award-winning NH-U series
The NH-U14S is the first 140mm model in Noctua’s award-winning NH-U series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
Tailored custom version for sTRX4/TR4/SP3 (Ryzen Thread Ripper / Epyc)
At 70x56mm, the copper contact surface of the TR4-SP3 version is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s sTRX4/TR4/SP3-based processors, this customized design allows for an optimal heat flow from the CPU over the base to the heat pipes and onto the cooling fins.
140mm size for maximum performance
With six heat pipes, a fin surface area of more than 6000cm² and the large NF-A15 140mm fan, the NOCTUA NH-U14S-TR4 SP3 provides a superior level of cooling performance that makes it ideal for the most high-end, enthusiast-grade sTRX4/TR4/SP3 systems.
NF-A15 140mm premium fan
Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm heatsink fans on the market.
PWM support and Low-Noise Adaptor
The NF-A15 140mm fan supplied with the NH-U14S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
Anti-vibration pads and fan-clips for second NF-A15 (optional)aa
For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.*
SecuFirm2™ mounting system for sTRX4/TR4/SP3
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety, and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!
Offset mounting options for better PCIe clearance
To assure optimal compatibility with SLI and Crossfire multi-GPU setups, the SecuFirm2™ mounting for sTRX4/TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot.
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional-grade TIM solution that provides minimum thermal resistance, excellent ease of use, and outstanding reliability.
6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTTF rating of more than 150.000 hours and the entire NH-U14S package comes with a full 6-year manufacturer’s warrant
|
Important Info |
Please note that the NH-U14S TR4-SP3 is a dedicated version for the AMD sTRX4/TR4/SP3 socket. Due to its customized larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits. |
|
Socket compatibility AMD |
AMD sTRX4, TR4, SP3 |
|
Height (without fan) |
165 mm |
|
Width (without fan) |
150 mm depth |
|
h (without fan) |
52 mm |
|
Weight(without fan) |
865 lightweight eight |
|
t (with fan) |
165 mm |
|
Width (with fan) |
150 mm |
|
Depth (with fan) |
78 mm |
|
Weight (with fan) |
1030 material copper |
|
Material |
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating an |
|
Fan compatibility |
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 |
|
Scope of delivery |
F-A15 PWM premium fan |
|
Fan Specifications |
Model – Noctua NF-A15 PWM |
|
Warranty |
6 Years |
|
Note |
*Features, Price, and Specifications are subject to change without notice. |
