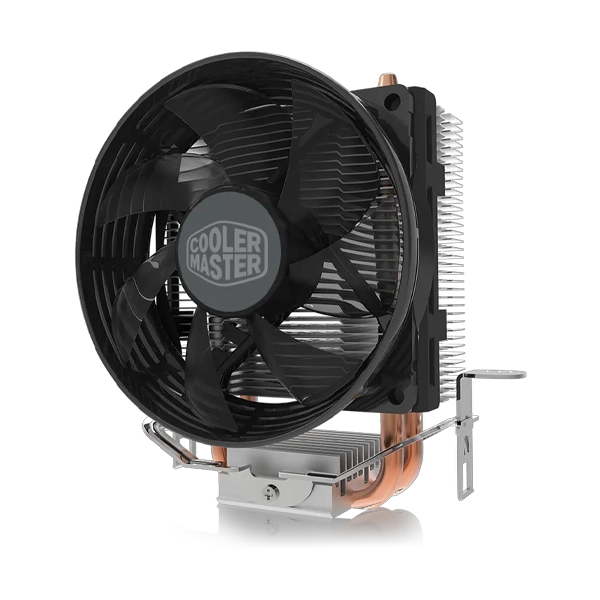

Cooler Master Hyper T20 Air Cooler-(RR-T20-20FK-R1) Simplified buckle Installation design Easy fan mounting clips for quick assembly or removal Direct contact with heat pipes for optimized heat transfer from the CPU to cooler
HYPER T20
Cooler Master Hyper T20 provides a compact air cooling solution for high cooling efficiency while maintaining minimal noise. The buckle system provides easy installation and setup to your CPU and system, compatible with both Intel and AMD platforms. Utilizing direct contact with heat pipes, the T200 is capable of continuously transferring heat from your CPU to the cooler for optimized heat dissipation.
SOUND LEVEL TESTING
Cooler Master Hyper T20 dedicates the engineering team to developing cooling solutions with high performance and minimized dBA levels. We can achieve low noise and vibrations for stable and quiet operation.

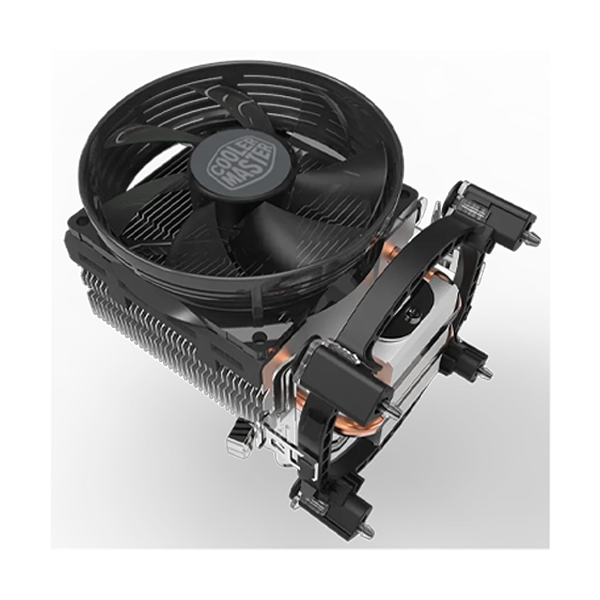

EASY FAN MOUNTING
Cooler Master Hyper T20 Easy fan mounting clips for quick assembly or removal
DIRECT CONTACT TECHNOLOGY
Cooler Master Hyper T20 Direct contact technology for rapid heat conduction with two 6mm heat pipes allows quick and efficient heat dissipation from enlarged aluminum fans.
UNIVERSAL COMPATIBILITY
Universal retention brackets are designed for both Intel and AMD CPU platforms for easy installation.
|
PRODUCT NUMBER |
RR-T20-20FK-R1 |
|
CPU SOCKET |
LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, LGA775, AM4, AM3+, AM3, AM2, FM2+, FM2, FM1 |
|
DIMENSIONS (L X W X H) |
95 X 80 X 117 MM / 3.1 X 2.6 X 3.8 INCH |
|
HEAT SINK DIMENSIONS (L X W X H) |
80 X 40 X 117 MM / 2.6 X 1.3 X 3.8 INCH |
|
HEAT SINK MATERIAL |
2 HEAT PIPES, DIRECT CONTACT, ALUMINUM FINS |
|
HEAT SINK WEIGHT |
218G / 0.48LB |
|
HEAT PIPE DIMENSIONS |
Ø6MM |
|
FAN DIMENSIONS (L X W X H) |
95.5MM X 25 MM *1 PCS / 3.1 X 0.8 X 1 INCH |
|
FAN SPEED |
2000 RPM ± 10% |
|
FAN AIRFLOW |
31.7 CFM ± 10% |
|
FAN AIR PRESSURE |
1.09 MMH2O |
|
FAN MTTF |
40,000 HOURS |
|
FAN NOISE LEVEL |
30 DBA |
|
FAN BEARING TYPE |
RIFLE BEARING |
|
FAN POWER CONNECTOR |
3-PIN |
|
FAN RATED VOLTAGE |
12VDC |
|
FAN SAFETY CURRENT |
0.16A |
|
HEATPIPES |
2 |
|
SERIES |
HYPER |
|
COOLER TYPE |
AIR COOLER |
|
WARRANTY |
2 YEARS |
|
NOTE |
*Features, Price and Specifications are subject to change without notice. |
