The Elite 490 ARGB is a compact, mATX/mini‑ITX mini‑tower PC case that blends space‑saving design with surprisingly robust cooling and hardware support. It sports dual tempered‑glass panels (front and side) for a clean, modern look and great visibility of your components and lighting. Despite its small footprint, it supports up to a 360 mm radiator and up to 9 fans,ensuring strong airflow and thermal performance. It also accommodates long GPUs (up to~425–410 mm) and standard ATX PSUs,

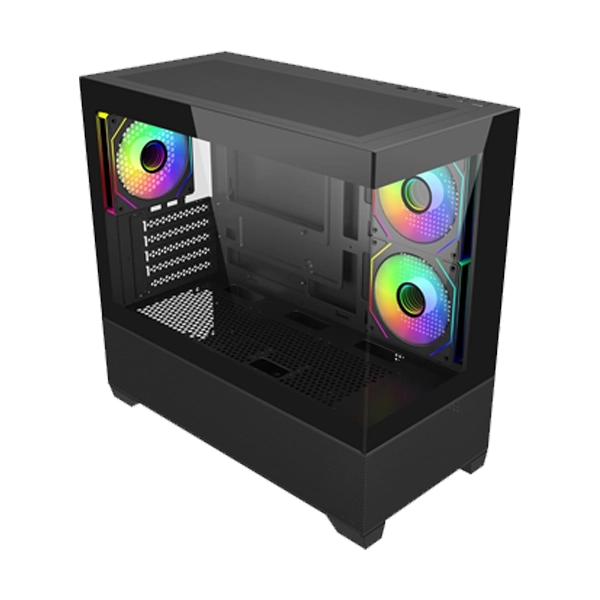

270° Tempered Glass Front and Side Panels
Dual tempered glass panels with seamless beveled edges provide a wide-angle showcase of your system, highlighting lighting and key components.
Compact mATX Form Factor with Full-Scale Cooling
Smaller footprint designed for desks or tight spaces—without compromising on radiator or GPU compatibility.
High-End Radiator Support
Supports up to a 360mm radiator, offering the same cooling capabilities found in full-size ATX chassis.
Vertical Cooling Configuration
Accommodates up to 9 fans with a bottom-to-top airflow layout for efficient heat dissipation and temperature control.
Pre-installed ARGB Fan Setup with Motherboard Sync Support
Includes 3 ARGB fans—2 reverse-blade side intake fans and 1 rear exhaust fan. Each fan features daisy-chain connectors for cleaner cable management and streamlined setup, and is fully compatible with major motherboard ARGB software for synchronized lighting control.
Top and Bottom Mesh Ventilation
Large mesh zones promote unobstructed airflow to maximize cooling efficiency.
Support for RTX 50 Series Graphics Cards
With GPU clearance up to 410mm, it’s ready for next-gen RTX 50 Series cards and other high-performance GPUs.
Upgraded High-Speed I/O Panel
Features dual USB 3.0 Type-A ports and a USB 3.2 Gen 2×2 Type-C port with up to 20Gbps transfer speed—perfect for fast data access and modern device connectivity.
|
Product Name |
Elite 490 |
|
Product Number |
E490-KHNN-S00 |
|
Color |
Black |
|
Front Panel |
Tempered Glass |
|
Side Panel (left) |
Tempered Glass |
|
Side Panel (right) |
Steel |
|
Dimensions (LxWxH) – Incl. Protrusions |
434 x 218 x 414mm |
|
Dimensions (LxWxH) – Excl. Protrusions |
430 x 218 x 395mm |
|
Volume (Liters Incl. Protrusions) |
39.16L |
|
Motherboard Support |
Micro-ATX / ITX |
|
Expansion Slots |
5 |
|
Drive Bays |
|
|
5.25’’ ODD |
N/A |
|
3.5’’ HDD |
1 (max 2) |
|
2.5’’ SSD |
1 |
|
I/O Panel |
|
|
USB Ports |
1 x USB Type C 20Gbps / 2 x USB 3.0 |
|
Audio In / Out 3.5 mm |
1 x 3.5mm Combo |
|
Fan Support |
|
|
Top |
2 x 140mm / 3 x 120mm |
|
Rear |
1 x 120mm |
|
Side Mount |
2 x 120mm |
|
Bottom |
3 x 120mm |
|
Preinstalled Fan(s) |
|
|
Rear |
1 x 120mm ARGB PWM |
|
Side Mount |
2 x 120mm ARGB PWM reverse fan |
|
Radiator Support |
|
|
Top |
360 (Max height 45mm) / 240 / 120mm |
|
Bottom |
360 / 240 / 120mm |
|
Side Mount |
240 / 120mm |
|
Clearances |
|
|
CPU Cooler |
170mm |
|
Power Supply |
250mm |
|
Graphics Card |
425mm |
|
Power Supply Support |
ATX |
|
Warranty |
2 Years |
|
Note** |
*Price, feature and specifications are subject to change without notice. |
