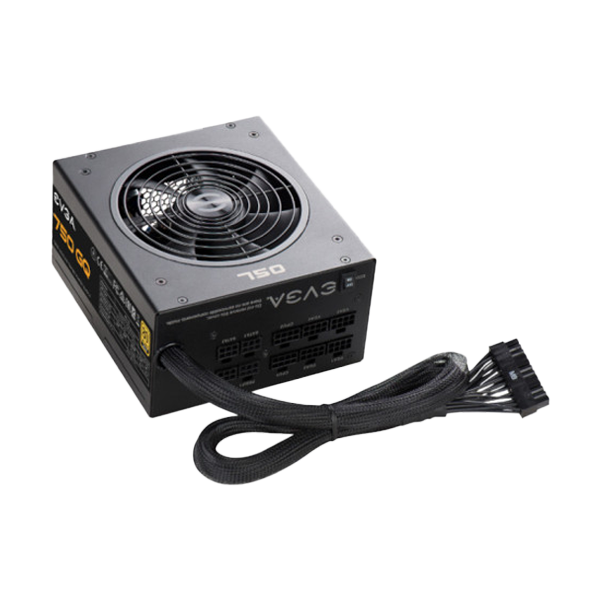

Experience reliable power and near-silent operation with the EVGA 750W Semi Modular Power Supply, semi-modular power supply. Built with 100% Japanese capacitors for enhanced stability and featuring EVGA ECO Mode, this PSU delivers efficient performance you can trust. Backed by a 5-year warranty and world-class EVGA support, it's the smart choice for your next build.
Introducing the latest in the EVGA power supply lineup: the GQ Series. These power supplies combine some of the best features from EVGA’s award-winning models—such as EVGA ECO fan mode for ultra-quiet operation, 100% Japanese capacitor design, and high-efficiency performance—all at an unbeatable value. The EVGA 750 GQ is 80 Plus Gold certified, delivering reliable and energy-efficient power to high-performance systems. Backed by a solid 5-year warranty and EVGA’s world-class support, it’s the ideal choice for gamers, creators, and PC builders.
750W 80 Plus Gold Certified Power Supply – Delivers up to 92% efficiency under typical loads.
ATX 3.1 Compatible – Future-ready design supports the latest motherboards and GPUs.
Semi Modular Cabling – Reduces clutter and improves airflow in your case.
EVGA ECO Intelligent Thermal Control – Enables fanless operation under low to medium loads.
135mm Fluid Dynamic Bearing Fan – Whisper silent cooling with extended lifespan.
Active Clamp + DC to DC Conversion – For enhanced stability and power efficiency.
Heavy-Duty Protection Circuitry – Includes OVP, UVP, OCP, OPP, SCP, and OTP.
NVIDIA SLI & AMD Crossfire Ready – Perfect for multi-GPU gaming systems.
100% Japanese Capacitors – Ensure superior reliability and durability.
Cable Length
|
Type |
Length |
|---|---|
|
ATX Cable |
1x 600mm |
|
EPS Cable |
2x 650mm |
|
PCIE Cable |
2x 650mm, 750mm, 2x 650mm |
|
SATA Cable |
3x 550mm, 650mm, 750mm |
|
Four-Pin Peripheral Cable |
1x 550mm, 650mm, 750mm |
|
Floppy Adapter |
1x 100mm (m) |
|
AC Power |
1x 1500mm |
|
Modular Cable Type |
Semi-Modular |
Connector Quantity
|
Connector |
Quantity |
|---|---|
|
24 Pin ATX |
1x |
|
EPS (CPU) |
2x 8pin (4+4) |
|
PCIE |
6x 8pin (6+2) |
|
SATA |
9x |
|
Four-Pin Peripheral |
3x |
|
Floppy |
2x |
Power Specs
| AC Input | 100 – 240 VAC, 10A, 50 – 60 Hz | |||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V | |
| Max Output | 24A | 24A | 62.4A | 3A | 0.5A | |
| 120W | 748.8W | 15W | 6W | |||
| Total | 750W @ +50°C | |||||
Additional Details
|
Operating Temperature |
0° to 50°C |
|
Japanese Capacitors |
100% |
|
ECO Mode |
Yes |
|
MTBF |
100,000 Hours |
|
Net Weight |
7 lbs |
|
Size |
85mm (H) x 150mm (W) x 165mm (L) |
|
Approvals |
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS |
|
Fan Size / Bearing |
135mm Fluid Dynamic Bearing |
Product Warranty
This product comes with a 5 year limited warranty with registration.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.
One Click to Visit Our Social Media Handle → Instagram
Other Similar Full Modular Power Supply → Click
Why Choose EVGA 750 GQ 750W?
Trusted brand with excellent service and RMA support
Fully compatible with modern GPU and CPU demands
Efficient, quiet, and compact design for mid to high-end gaming builds
Great value in the premium PSU segment
