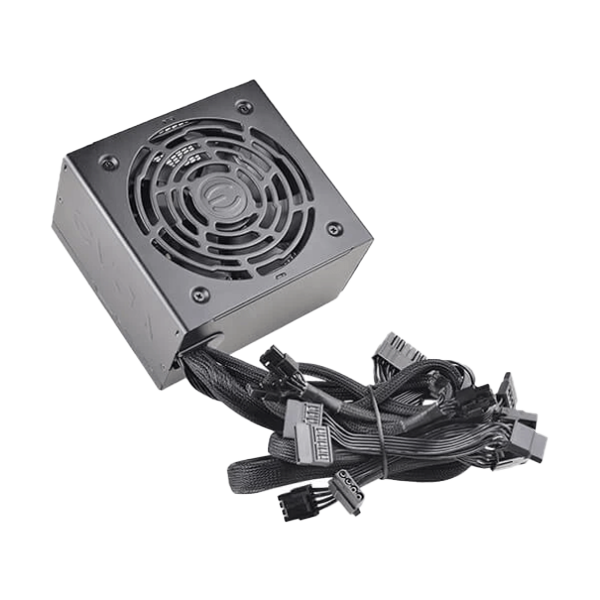

EVGA 750 BR 750 Watt 80 Plus Bronze Non-Modular Power Supply 80 PLUS Bronze 230V EU certified, delivering up to 88% efficiency With 3 Yr Warranty 100-BR-0750-KN.
80 PLUS Bronze 230V EU certified, delivering up to 88% efficiency
Single 12V. Rail
Active Power Factor Correction
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
3-Year Warranty
DC-DC Converter improves 3.3V/5V stability
Quiet and Intelligent Auto Fan for near-silent operation
|
Cable Length |
|
|
ATX Cable |
1x 550mm |
|
EPS Cable |
1x 600mm |
|
PCIe Cable |
1x 550mm, 670mm |
|
SATA Cable |
2x 450mm, 570mm, 690mm |
|
Four-Pin Peripheral Cable |
1x 450mm, 570mm, 690mm + 810mm (Floppy) |
|
Floppy Adapter |
1x |
|
AC Power |
1x 1200mm (m) |
|
Modular Cable Type |
No |
|
Connector Quantity |
|
|
24 Pin ATX |
1x 24pin (20+4) |
|
EPS (CPU) |
1x 8pin (4+4) |
|
PCIe |
4x 8pin (6+2) |
|
SATA |
9x |
|
Four-Pin Peripheral |
3x |
|
Floppy |
1x |
|
Power Specs |
|
|
Total Wattage |
750W |
|
Input |
|
|
Input Voltage |
200-240V~ |
|
AC Input |
5A |
|
Input Frequency Range |
60/50Hz |
|
Efficency |
88% typical |
|
Net Weight |
4.00 lbs |
|
ADDITIONAL DETAILS |
|
|
Japanese Capacitors |
No |
|
ECO Mode |
No |
|
MTBF |
100,000 Hours |
|
Net Weight |
4.4 lbs |
|
Size |
86mm (H) x 150mm (W) x 140mm (L) |
|
Approvals |
TUV, CB, CE, RCM, RoHS |
|
Compliance with ErP Lot 3 2014 Requirement |
|
|
Warranty |
3 Years |
|
Note |
*Features, Price, and Specifications are subject to change without notice. |
