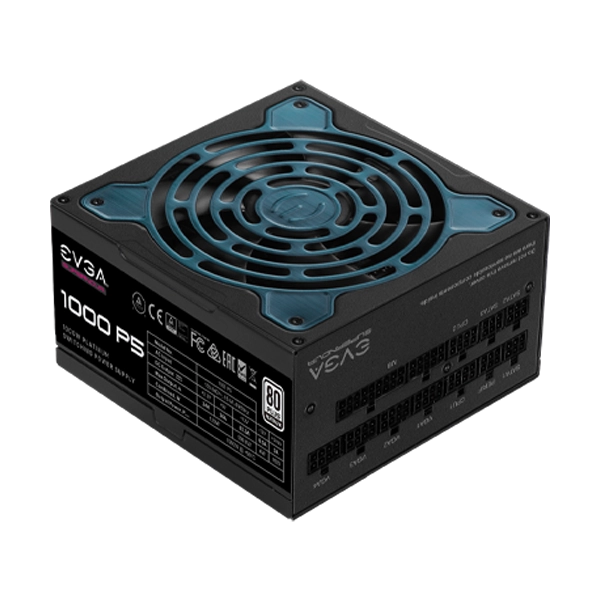

The EVGA SuperNOVA 1000 P5 is a high-performance 1000W power supply with 80 PLUS Platinum efficiency, delivering up to 92% efficiency for reduced energy waste. Its fully modular design minimizes cable clutter, enhancing airflow and ease of installation. Featuring 100% Japanese capacitors for superior reliability, a quiet 135mm Fluid Dynamic Bearing fan with ECO Mode for silent operation, and a 10-year warranty,
Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

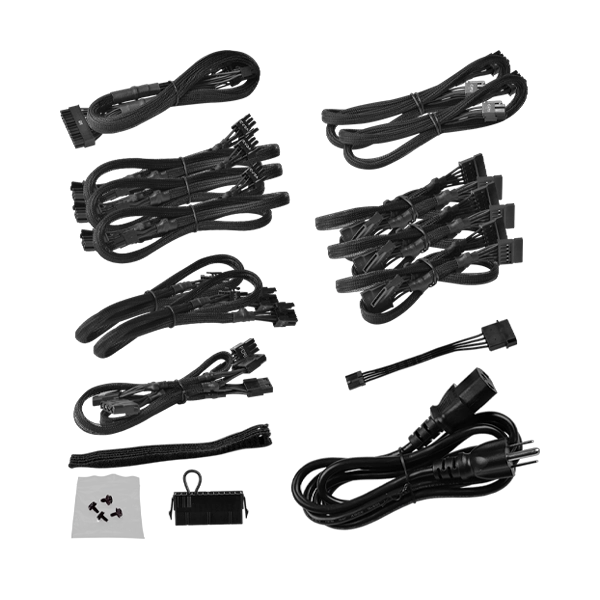

Fully Modular to reduce clutter and improve airflow
NVIDIA SLI & AMD Crossfire Ready
80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
100% Japanese Capacitors ensure long-term reliability
Active Clamp +DC to DC design for efficient operation
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Active Power Factor Correction
Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
DC-DC Converter improves 3.3V/5V stability
|
Brand |
EVGA |
|
Model |
220-P5-1000-X1 |
|
Color |
Black |
|
Power Output |
Provides 1000 Watts of power for high-performance PCs |
|
Efficiency Rating |
80 PLUS Platinum, 92% efficient at 115V, 94% at 220-240V |
|
Modular Design |
Fully modular, allowing detachable cables for better cable management |
|
Fan Type |
135mm Fluid Dynamic Bearing fan, quiet with ECO mode (fan stops at low load) |
|
Connectors |
1x 24-pin ATX, 2x 8-pin EPS, 8x 8-pin PCIe (6+2), 12x SATA, 4x Molex, 1x Floppy |
|
Cable Lengths |
ATX: 600mm, EPS: 700mm, PCIe: 700mm/850mm, SATA: 550-850mm, Molex: 550-850mm |
|
Input Voltage |
Supports 100-240V, 15-8A, 50/60 Hz |
|
Output Rails |
+3.3V: 24A, +5V: 24A, +12V: 83.3A, -12V: 0.5A, +5Vsb: 3A |
|
Dimensions |
Measures 150mm (L) x 150mm (W) x 86mm (H) |
|
Weight |
Weighs 7.2 lbs (3.27 kg) |
|
Warranty |
Comes with a 10-year warranty (requires registration) |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
